Flexible 6-Channel Audio With Jack Sensing (Optional) - Intel D865PERL Product Manual

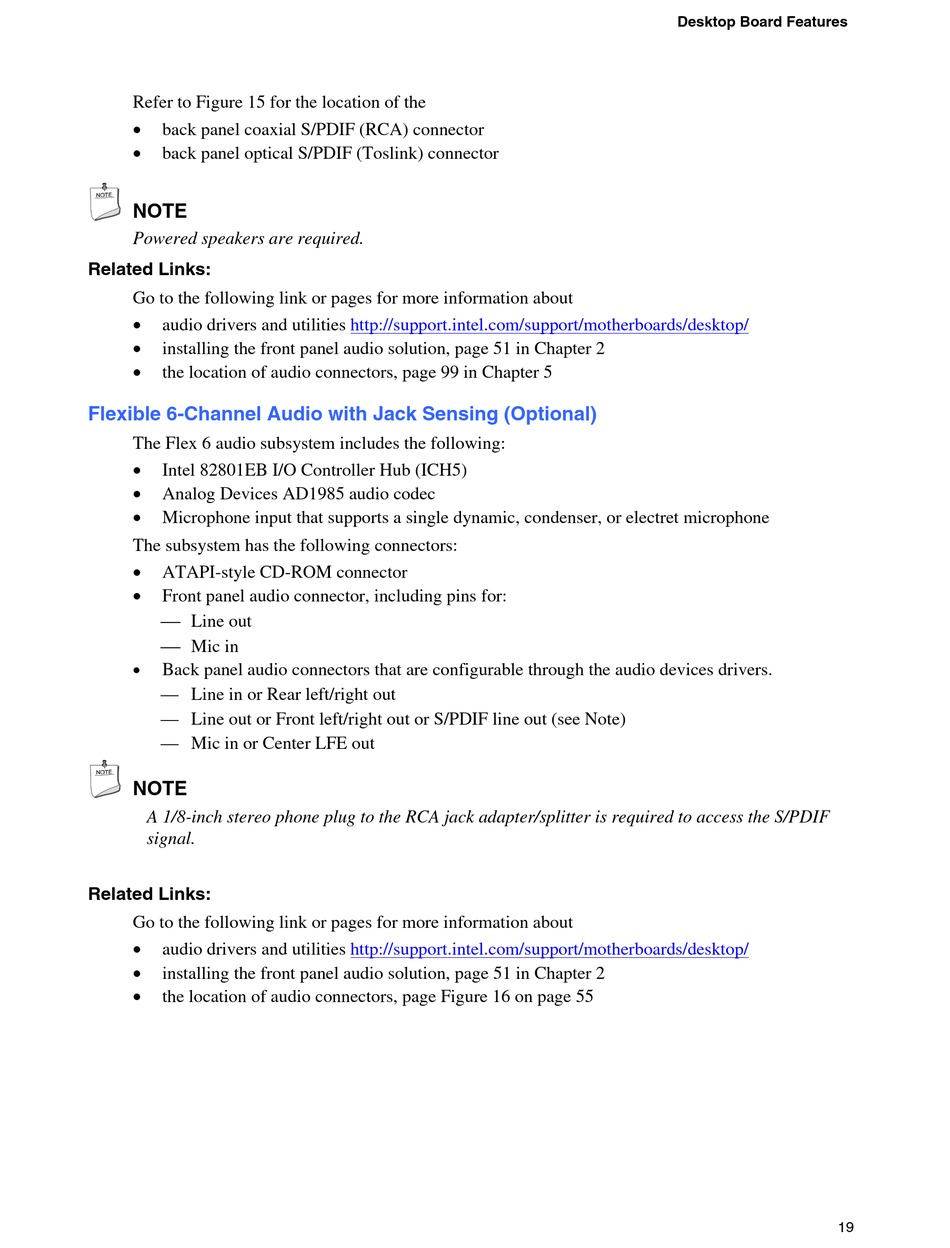

Refer to Figure 15 for the location of the
•
back panel coaxial S/PDIF (RCA) connector
•
back panel optical S/PDIF (Toslink) connector
NOTE
Powered speakers are required.
Related Links:
Go to the following link or pages for more information about
•
audio drivers and utilities
•
installing the front panel audio solution, page 51 in Chapter 2
•
the location of audio connectors, page 99 in Chapter 5

Flexible 6-Channel Audio with Jack Sensing (Optional)

The Flex 6 audio subsystem includes the following:
•
Intel 82801EB I/O Controller Hub (ICH5)
•
Analog Devices AD1985 audio codec
•
Microphone input that supports a single dynamic, condenser, or electret microphone
The subsystem has the following connectors:
•
ATAPI-style CD-ROM connector
•
Front panel audio connector, including pins for:
 Line out
 Mic in
•
Back panel audio connectors that are configurable through the audio devices drivers.

Line in or Rear left/right out

Line out or Front left/right out or S/PDIF line out (see Note)

Mic in or Center LFE out
NOTE
A 1/8-inch stereo phone plug to the RCA jack adapter/splitter is required to access the S/PDIF
signal.
Related Links:
Go to the following link or pages for more information about
•
audio drivers and utilities
•
installing the front panel audio solution, page 51 in Chapter 2
•
the location of audio connectors, page Figure 16 on page 55
http://support.intel.com/support/motherboards/desktop/
http://support.intel.com/support/motherboards/desktop/
Desktop Board Features
19
