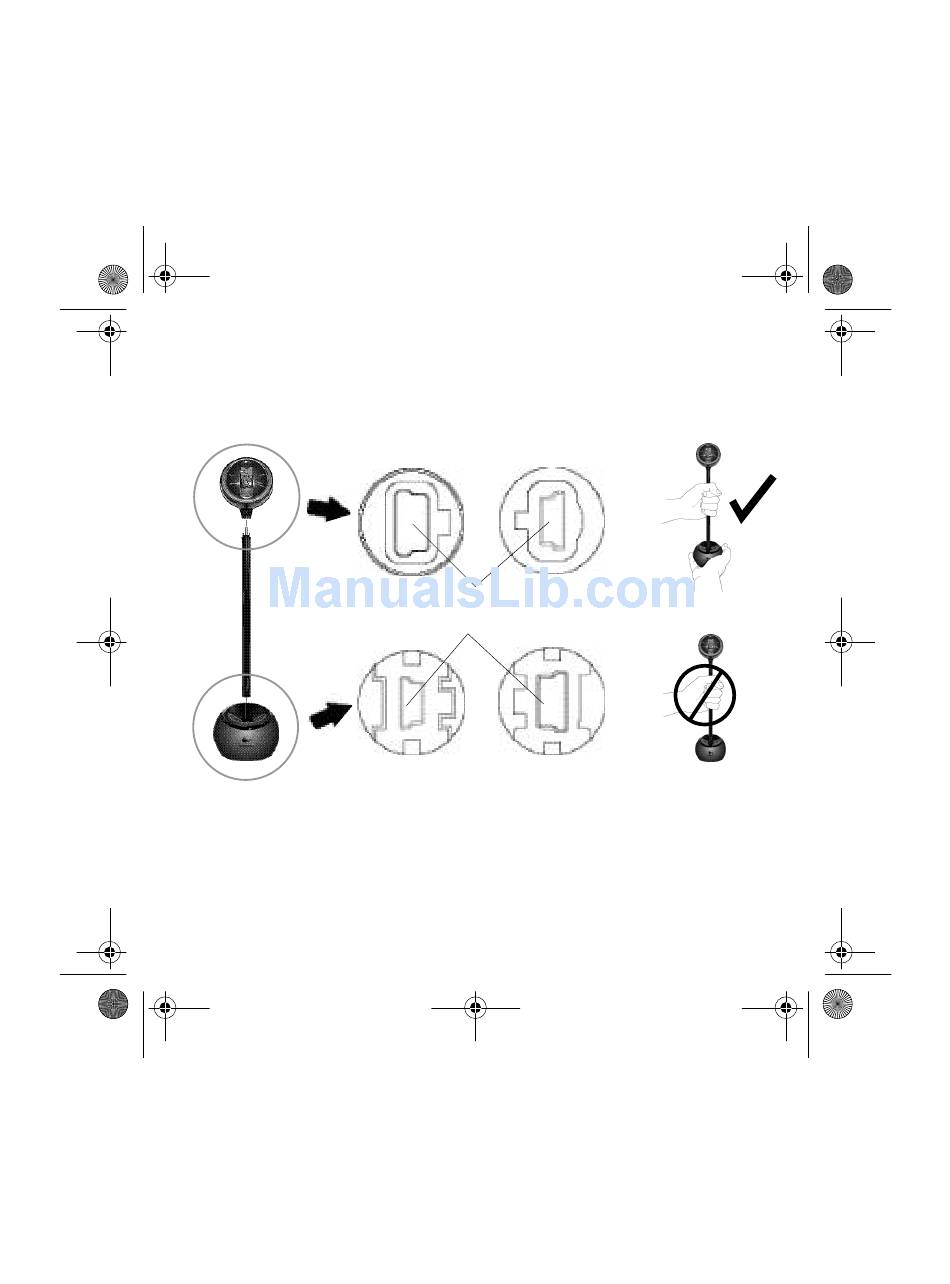

3. Connect the camera to the stand. Carefully line up the connectors on the stand with
the connectors on the camera.
4. Do not carry the camera by the stand. The base could detach from the stand, and the base
could get damaged if it were to hit the floor. Move the unit by holding on to the base and stand
at the same time.
4

English

Camera bottom Stand top
Line up connectors
Line up connectors
Base top
Stand bottom
Correct: Hold base and stand
to move camera.
Incorrect
