Connections and Operations

Connections

This section focuses on the connection examples for the
BRC-300/300P camera. For connections with other
cameras, refer to the Operating Instructions supplied
with the camera you will connect.

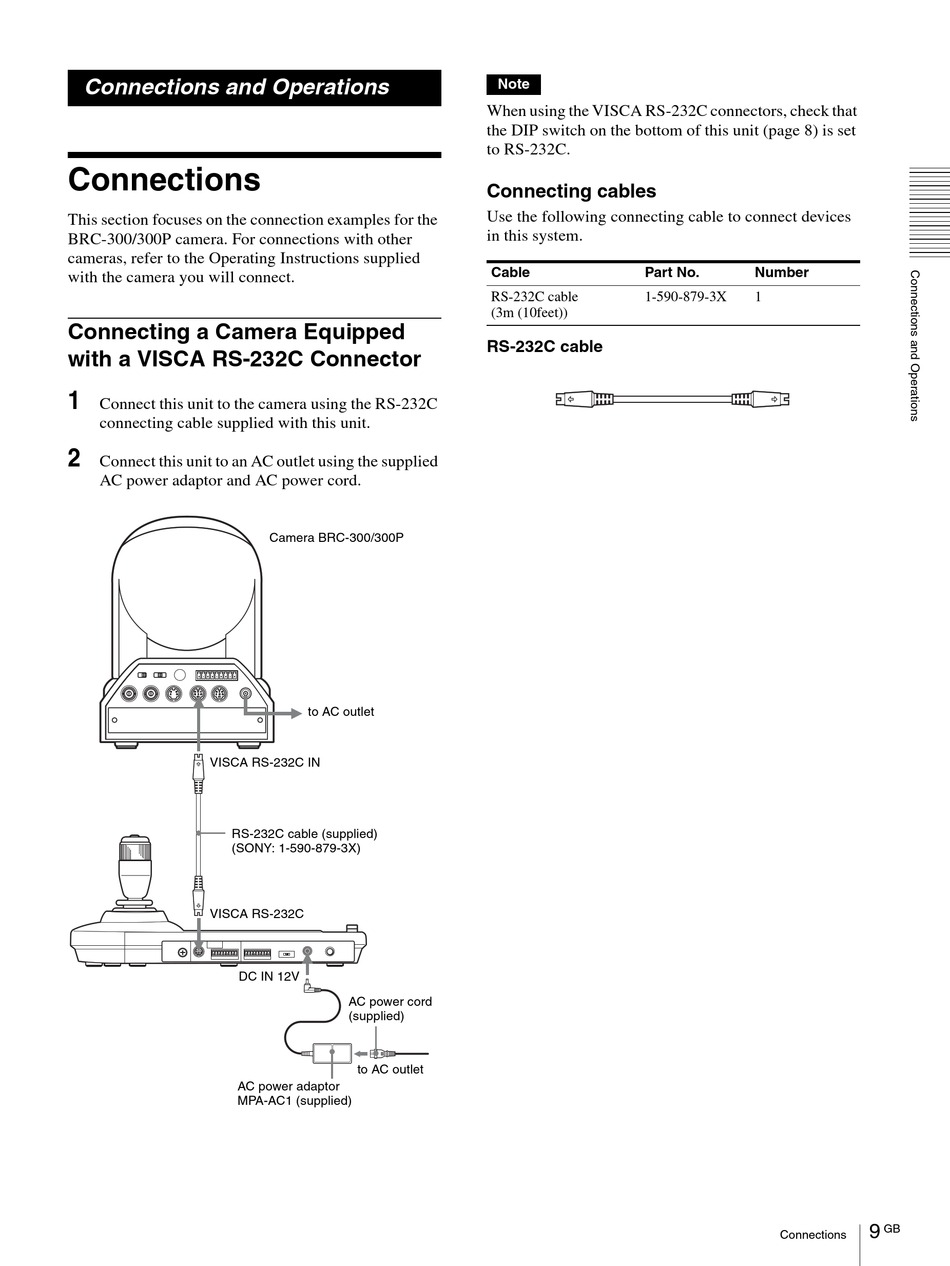

Connecting a Camera Equipped
with a VISCA RS-232C Connector
1
Connect this unit to the camera using the RS-232C
connecting cable supplied with this unit.
2
Connect this unit to an AC outlet using the supplied
AC power adaptor and AC power cord.
1 2 3 4 5 6 7 8 9
1 2 3
OFF ON
IR SELECT
75
!
VISCA RS-422
DC IN
EXT SYNC IN VIDEO S VIDEO IN VISCA RS-232C OUT 12V
VISCA RS-232C IN
RS-232C cable (supplied)
(SONY: 1-590-879-3X)
VISCA RS-232C
DC IN 12V
AC power adaptor
MPA-AC1 (supplied)
Camera BRC-300/300P
to AC outlet
AC power cord
(supplied)
to AC outlet
Note
When using the VISCA RS-232C connectors, check that
the DIP switch on the bottom of this unit (page 8) is set
to RS-232C.
Connecting cables
Use the following connecting cable to connect devices
in this system.
Cable Part No.
RS-232C cable 1-590-879-3X
(3m (10feet))
RS-232C cable
Number
1
9
GB
Connections
