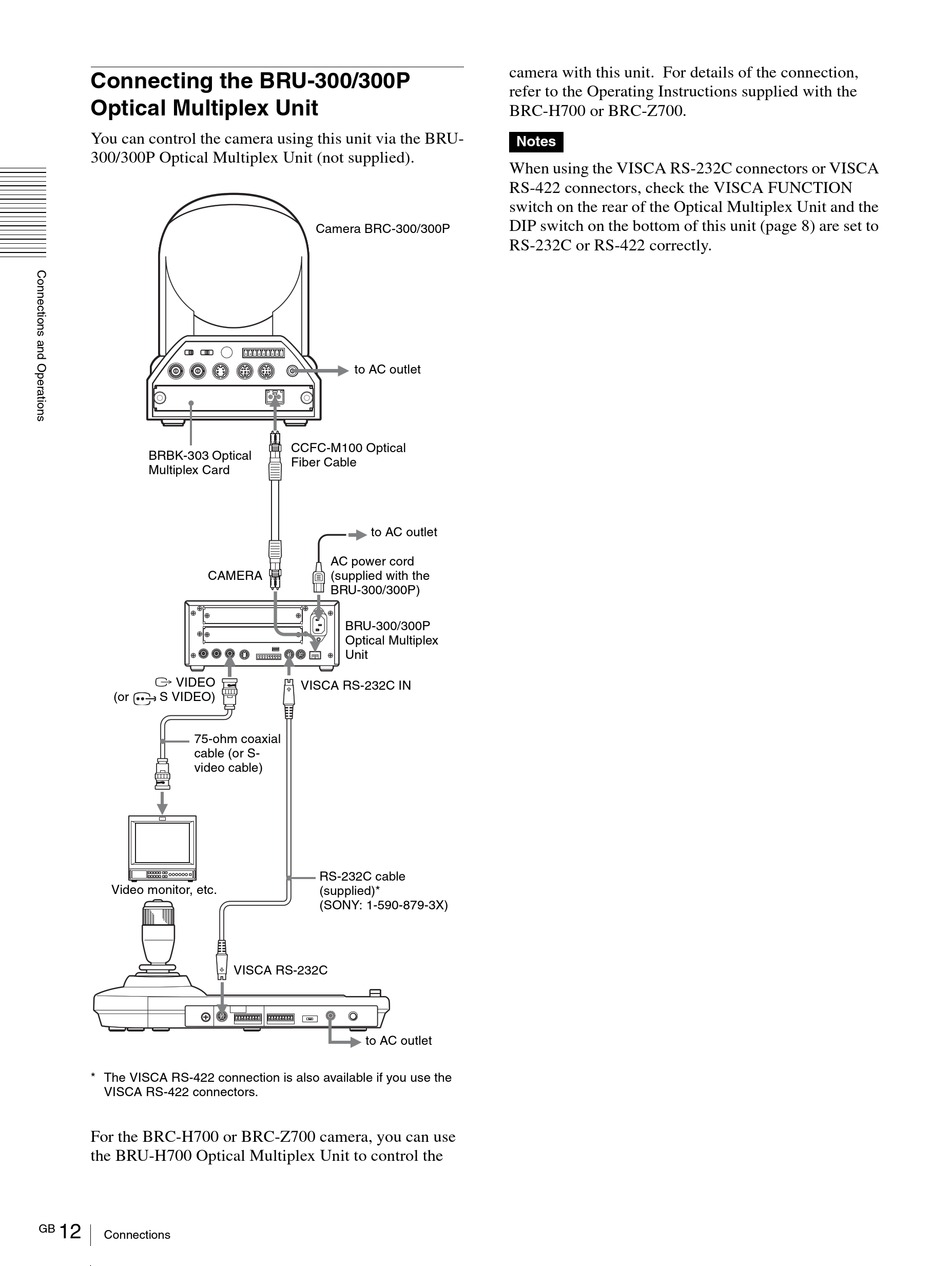

Connecting the BRU-300/300P
Optical Multiplex Unit
You can control the camera using this unit via the BRU-
300/300P Optical Multiplex Unit (not supplied).
1 2 3
OFF ON
75 IR SELECT
EXT SYNC IN VIDEO
BRBK-303 Optical
Multiplex Card
CAMERA
T VIDEO
(or S VIDEO)
75-ohm coaxial
cable (or S-
video cable)
Video monitor, etc.
* The VISCA RS-422 connection is also available if you use the
VISCA RS-422 connectors.
For the BRC-H700 or BRC-Z700 camera, you can use
the BRU-H700 Optical Multiplex Unit to control the
12
GB
Connections
Camera BRC-300/300P
1 2 3 4 5 6 7 8 9
VISCA RS-422 !
to AC outlet
DC IN
S VIDEO IN VISCA RS-232C OUT
12V
CCFC-M100 Optical
Fiber Cable
to AC outlet
AC power cord
(supplied with the
BRU-300/300P)
BRU-300/300P
Optical Multiplex
Unit
VISCA RS-232C IN
RS-232C cable
(supplied)*
(SONY: 1-590-879-3X)
VISCA RS-232C
to AC outlet
camera with this unit. For details of the connection,
refer to the Operating Instructions supplied with the
BRC-H700 or BRC-Z700.
Notes
When using the VISCA RS-232C connectors or VISCA
RS-422 connectors, check the VISCA FUNCTION
switch on the rear of the Optical Multiplex Unit and the
DIP switch on the bottom of this unit (page 8) are set to
RS-232C or RS-422 correctly.
