KitchenAid KBRS20ETBL - ARCHITECT II 19.9 Bottom-Fre Parts List

Parts diagram
Hide thumbs

Advertisement

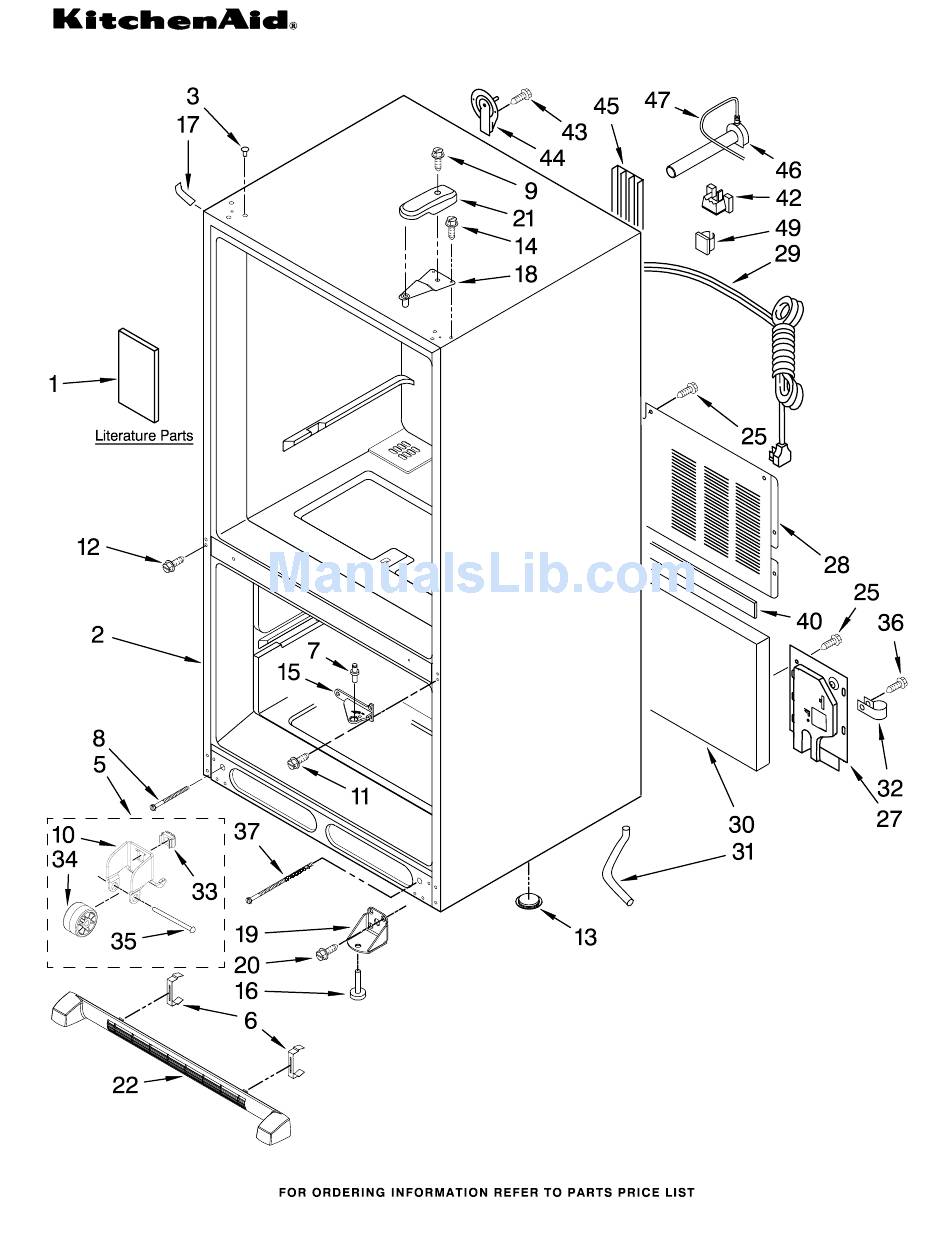

CABINET PARTS
REFRIGERATOR
For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00
(White)
(Black)
(Stainless Steel)
7−07 Litho In U.S.A. (tpm)
Part No. W10153438 Rev. A
1

Advertisement

loading

  Also See for KitchenAid KBRS20ETBL - ARCHITECT II 19.9 Bottom-Fre

  Related Manuals for KitchenAid KBRS20ETBL - ARCHITECT II 19.9 Bottom-Fre

  Summary of Contents for KitchenAid KBRS20ETBL - ARCHITECT II 19.9 Bottom-Fre

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) 7−07 Litho In U.S.A. (tpm) Part No. W10153438 Rev. A...
  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006303 Screw 28 12575101ED Cover, Unit Literature Parts Hinge, Center 67007121 Power Cord W10136388 Owners Manual 67006960 White 67003796 Insulation, Sound W10136377 Energy Tag 67007043 Black 67006616 Tech Sheet...
  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) W10153438...
  • Page 4 FREEZER LINER PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004017 Shaft 8170839 Socket, Light 67006407 Gear (RH) 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz.
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) W10153438...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 67006602 Screw 67006287 Screw 67003899 Cover, Damper 67005674 Cover Serviceable Part) 67006604 Insulation 12575501 Switch, Limit Y67003896 Bracket, Control 15 W10127429 Control, Damper 61006182 Union...
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) W10153438...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67004804 White 67004803 Black W10136411 Stainless Steel Plug, Vent 67001130 White 67001131 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67005724 Bin, Shelf (1) (Medium) Plug, Handle Hole 67001130 White...
  • Page 9: Unit Parts

    UNIT PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) W10153438...
  • Page 10 UNIT PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002041 Evaporator 67006425 Screw 67004952 Blade, Fan Following Parts Not Illustrated 67001084 Right Side 67005889 Base and Optional Parts Not Included 67001083 Left Side 67006433 Screw 67004432 Motor, Fan...
  • Page 11: Shelf Parts

    SHELF PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) W10153438...
  • Page 12 SHELF PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 67003037 Ladder, Side 67006415 Screw 67003036 Ladder, Center 67006360 Screw 67005625 Housing, Control 67005676 Shelf, Glide (4) 67006655 Glass, Crisper 67006185 Frame, Crisper 67002329 Gasket, Pantry Crisper Drawer 67005864 Slide, Humidity Control...
  • Page 13: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Plug, Vent (2) 67006408 Screw (w/ Insulation) Gasket, Door 10712401 White 67004810 White W10133249 White 67004838 Black 67004808 Black 67004790 Stud, Handle W10131754 Black...
  • Page 14: Icemaker Parts

    ICEMAKER PARTS For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Mold & Heater Thermostat 67004710 Cover Assembly (Not Available Module Assembly (Not Available Order 4317943) (Not Available Order D7824706Q) 681249 Screw (2) Order D7824706Q) 67004028 Arm, Shutoff 67006531 Pan, Ice...
  • Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: KBRS20ETWH00, KBRS20ETBL00, KBRS20ETSS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) PAINT, BULK (1 qt.) TORX SCREW WRENCH 72017 White 1117510 Torx Key 72032 Black 799344 White (Uncut) 799340 Black (Uncut) ICE MAKER PAINT, PRESSURIZED SPRAY...
