Directed Video OHD1021 Owner's Installation Manual page 35

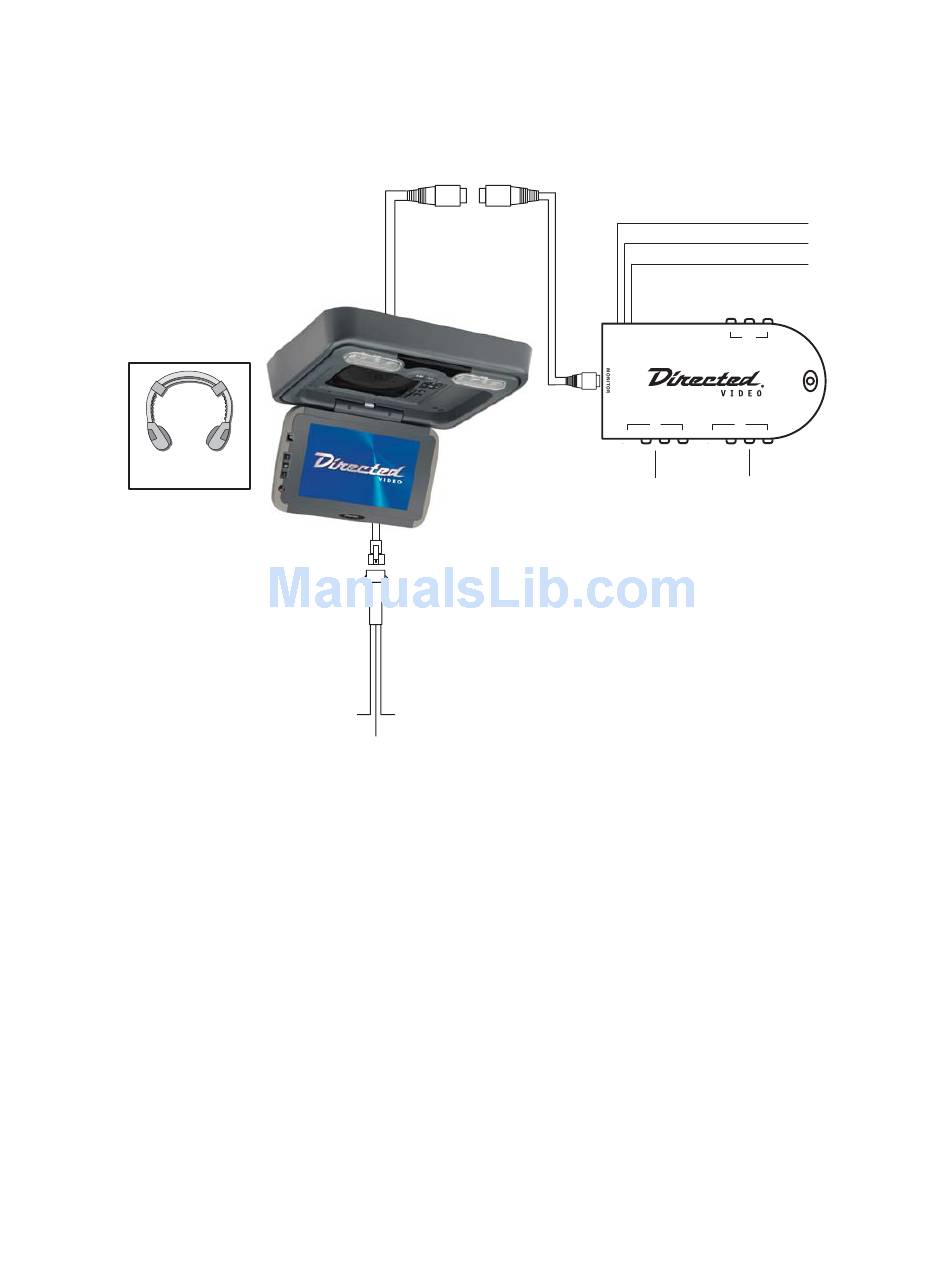

T T Y Y P P I I C C A A L L W W I I R R I I N N G G D D I I A A G G R R A A M M
Wireless
Headphones
YELLOW–12V Constant
© 2005 Directed Electronics, Inc.
BLACK–Ground
GRAY (-) Door Trigger
RED–Ignition
YELLOW–12V Constant
BLACK–Ground
A/V
OUTPUT 3
A(R) A(L) V
OUT
IN2 IN1
IR V A(L) A(R) IR V A(L) A(R)
A/V A/V
SOURCE 2 SOURCE 1
35
