O W N E R ' S G U I D E
INSTALLATION GUIDE
Overhead Video Console
MODEL OHC100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHC100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Directed Video OHC100

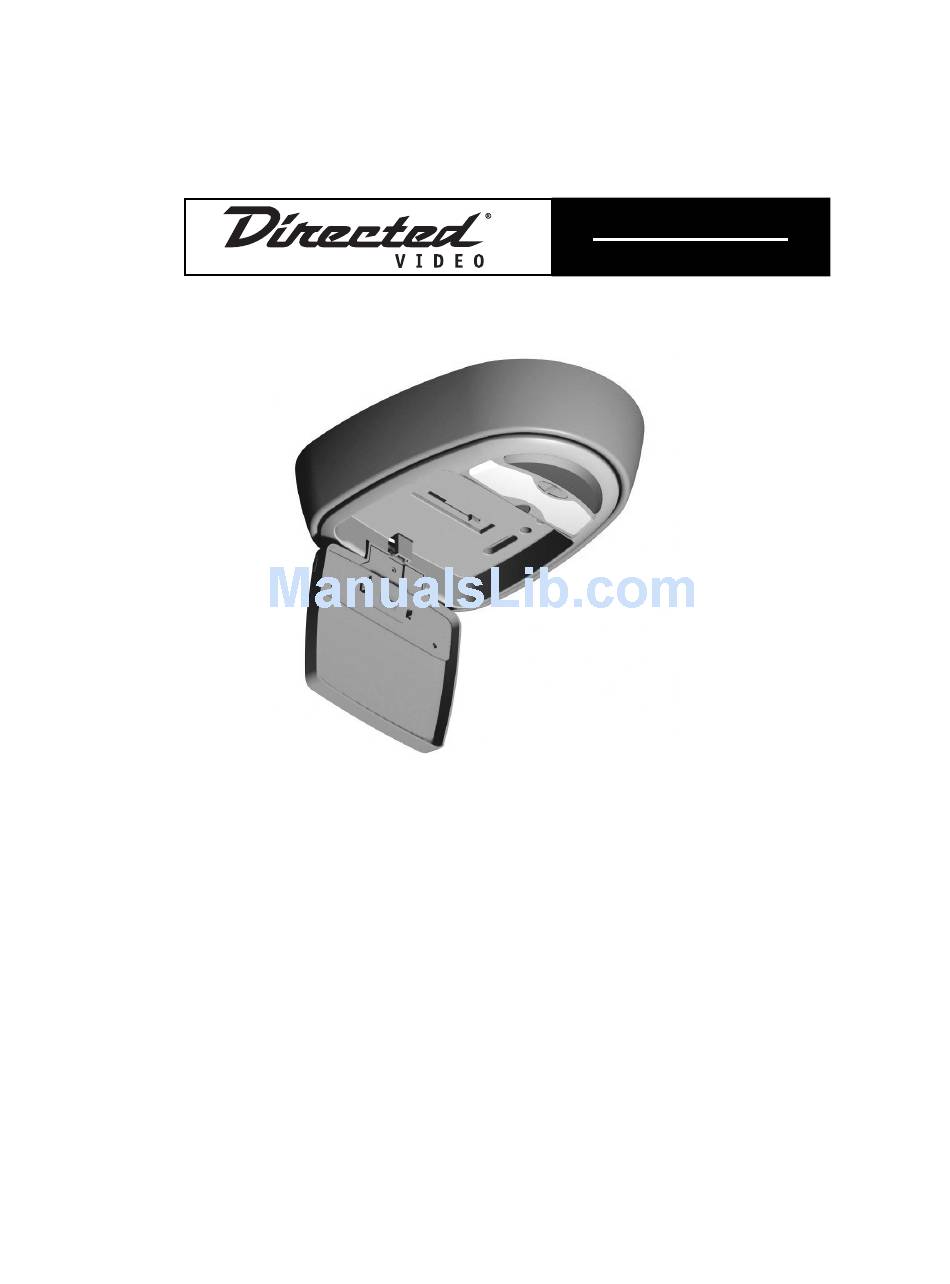

  • Page 1 O W N E R ’ S G U I D E INSTALLATION GUIDE Overhead Video Console MODEL OHC100...
  • Page 2 © 2002 Directed Electronics, Inc.
  • Page 3: Table Of Contents

    Table of Contents Warranty ............4 Safety Information .
  • Page 4: Limited Three-Year Warranty

    Limited Three-Year Warranty For a period of THREE YEARS from the date of purchase, Directed Electronics, Inc. ("DIRECTED") promises to the original purchaser to repair or replace, free of cost, with a comparable reconditioned model any OVERHEAD CONSOLE (hereafter the "UNIT"), which proves to be defective in workmanship or material defect under normal and reason- able use during the first 3 years after the purchase and installation of the unit provided the following conditions...
  • Page 5: Safety Information

    REPAIRS If the OHC100 stops working for any reason, dis- continue use immediately and consult with your retailer about any necessary repairs.
  • Page 6: Important Information

    Important Information FCC NOTICE This device complies with Part 15 of FCC rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation.
  • Page 7: Basic Operation

    DOME LIGHT OPERATION If the OHC100 has a built-in dome light (8) that can be used if the factory dome light must be removed to accommodate the installation. The built-in dome light has a three-position switch (9) - OFF, DOOR, and ON.
  • Page 8 Monitor Mounts Monitor Release Monitor Mounting Hook Monitor Door Monitor Connector View Angle Bracket View Angle Adjuster Monitor Door Release Dome Light Dome Light Switch 10. IR Receiver 11. Trim Panel Monitor Connector © 2002 Directed Electronics, Inc.
  • Page 9: Installation

    Installation TOOLS AND MATERIALS NEEDED Screwdriver Power drill with drill bits and screw tip Awl or scribe Razor knife Digital Multi-meter Marker Tape Measure Masking Tape Fabric Cleaner Wire INSTALLATION PROCEDURE MOUNTING LOCATION Discuss with the vehicle owner a location in the vehicle that will allow viewing from the rear passenger seats but not be visible to the driver.
  • Page 10: Install The Mounting Plate

    This will allow for maximum adjustability during the final mounting of the OHC100. After adhering the mounting posts to the vehicle roof it is recommended that a generous bead of sil- icone be applied to their base at the point of contact with the roof.
  • Page 11 Open and close the unit to test the operation. VEHICLE-SPECIFIC AFTERMARKET INSTALLATION The mini trim ring adapter has a raised adapter portion designed to adapt the OHC100 to fit into any aftermarket vehicle-specific overhead console. Follow the Installation Procedures (Mounting Location, Cutting the Headliner, and Routing Cables and Wires) section outlined in this guide.
  • Page 12: After The Installation

    The included mini trim ring adapter is for installing the OHC100 to a flat headliner surface that needs minimum space. It is also designed to adapt the OHC100 to fit into vehicle-specific overhead consoles available through aftermarket mobile video distributors.
  • Page 13: Wiring Guide

    © 2002 Directed Electronics, Inc. IR Connector - Connect to MCB1000 or AV source NOTE: When using the MCB1000 with the OHC100, to only use the DIN to DIN cable supplied with the MCB1000, not the DIN to RCA cable. The DIN to...
  • Page 14 © 2002 Directed Electronics, Inc.
  • Page 15 © 2002 Directed Electronics, Inc.
  • Page 16 The company behind this system is Directed Electronics, Inc. Since its inception, Directed has had one purpose, to provide consumers with the finest vehicle security, car stereo products, rear seat entertainment, and accessories available. The recipient of more than 20 patents in the field of advanced electronic technology, Directed is ISO 9001 registered.
