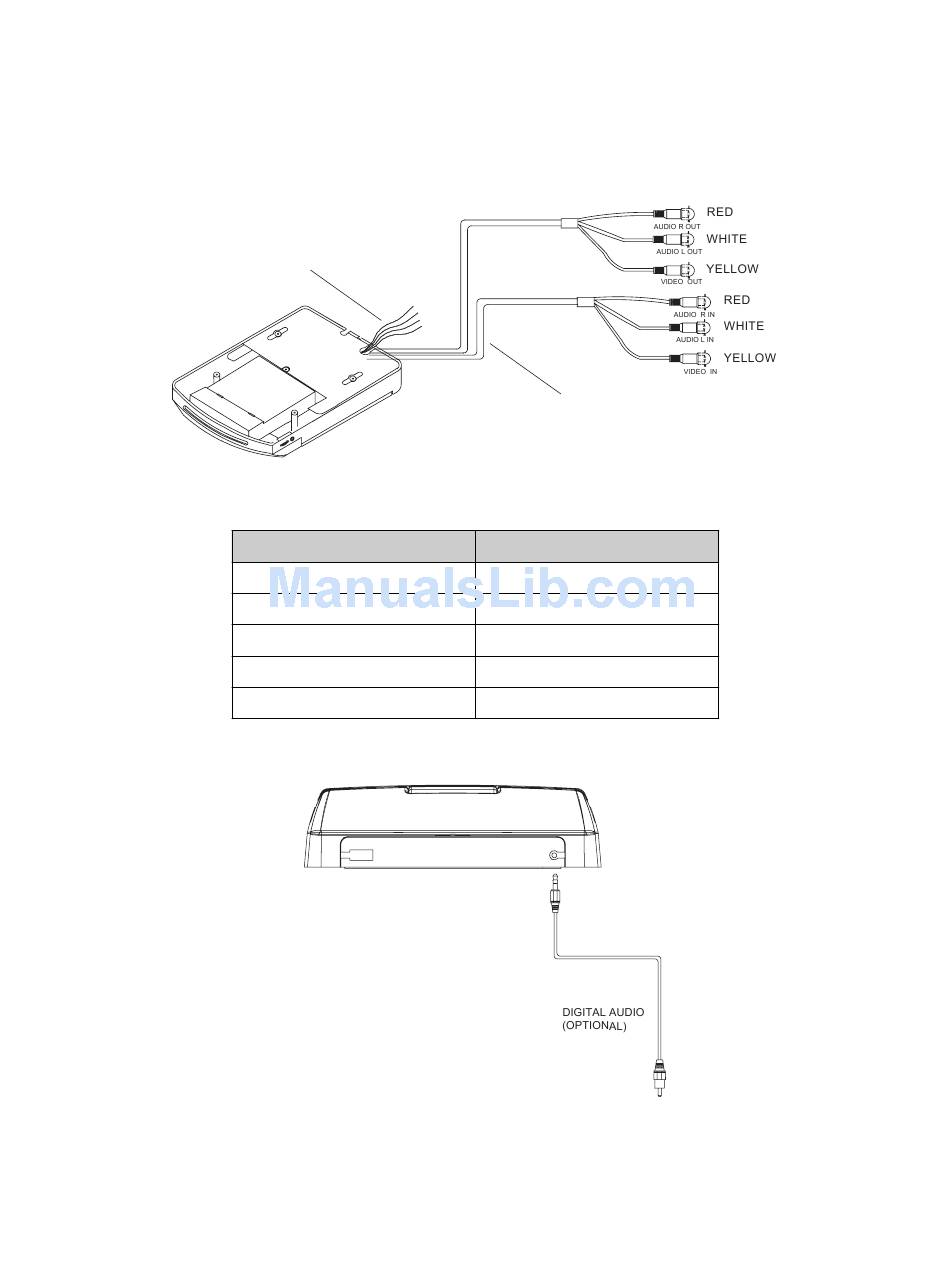

E E L L E E C C T T R R I I C C A A L L C C O O N N N N E E C C T T I I O O N N S S
P P O O W W E E R R A A N N D D V V I I D D E E O O W W I I R R I I N N G G
Power and Dome Lamp
Wiring
Video Wiring
Connect the power and dome light wires as follows:
C C o o l l o o r r C C o o n n n n e e c c t t i i o o n n
Red Accessory
Yellow Battery +12V
White Interior Light System (Dome -)
Orange Interior Light System (Dome +)
Black Ground
O O P P T T I I O O N N A A L L D D I I G G I I T T A A L L W W I I R R I I N N G G
1 1 0 0
