Summary of Contents for Moffat MCP651

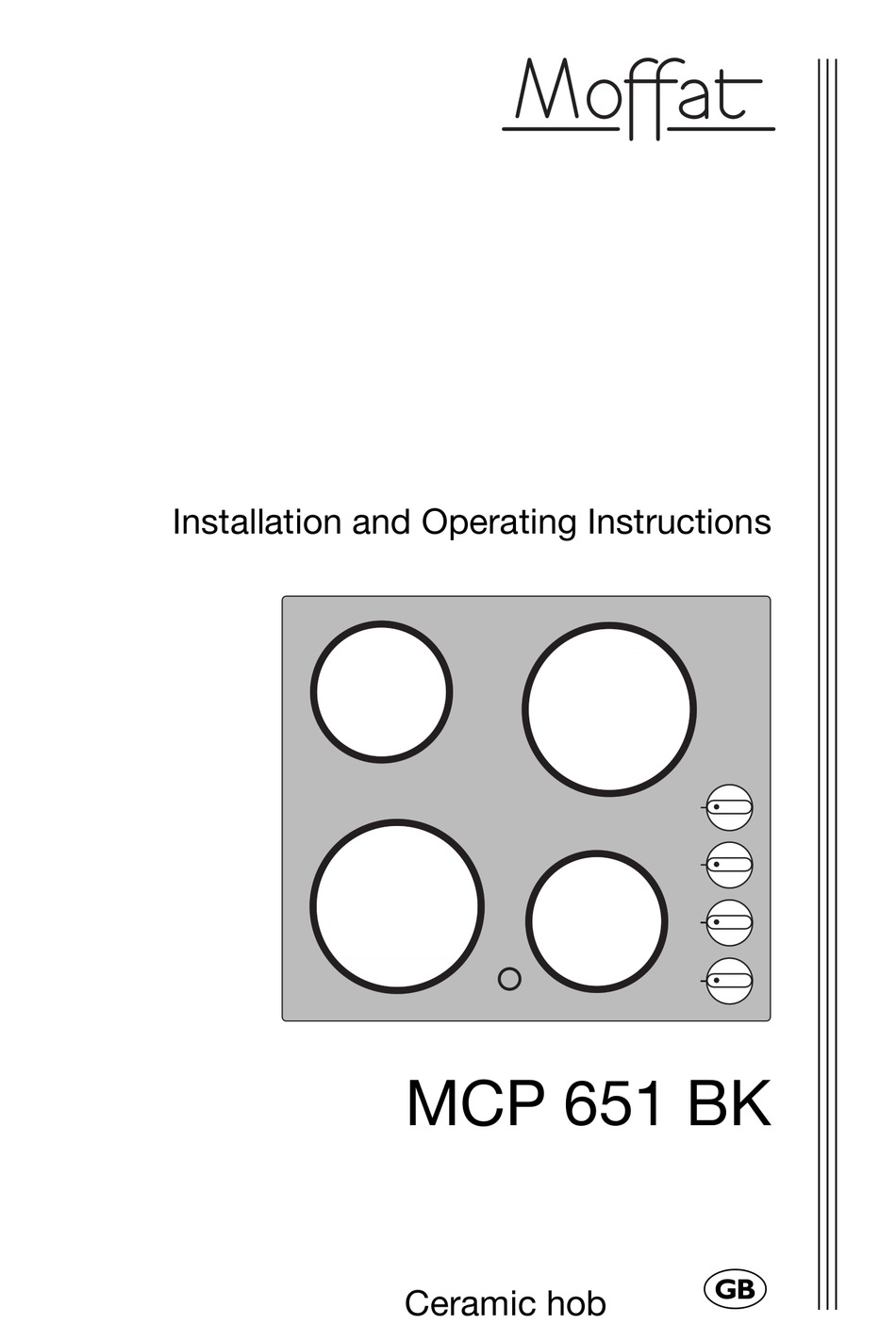

- Page 1 Installation and Operating Instructions MCP 651 BK Ceramic hob...
- Page 2 Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance.
-
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions . -
Page 4: Operating Instructions
Operating Instructions Safety instructions Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di- rective 92/31/EEC –... - Page 5 Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •...
-
Page 6: Description Of The Appliance
Description of the Appliance Cooking surface layout Single cooking zone 1200W Single cooking zone 1700W Control Knobs Residual heat indicator Single cooking zone Single cooking zone 1200W 1700W Assignment of control knobs... -
Page 7: Control Knobs
Control Knobs The cooking power can be set anywhere between level 1 and 9. lowest power highest power Off position Residual heat indicator The residual heat indicator lights up, as soon as one cooking zone is hot. Caution Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. -
Page 8: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, intensive browning of food, espe- cially in products containing starch, may present a health risk due to acryla- mide. Therefore we recommend cooking at low temperatures and not browning foods too much. -
Page 9: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cook- Cook set- suitable for Tips/Hints time ting process Residual heat setting, Off position Keep- Keeping cooked foods as re- ing food Cover warm quired warm Hollandaise sauce,... - Page 10 Heat Cook- Cook set- suitable for Tips/Hints time ting process Hash browns, loin Heavy steaks, steaks, Flädle 5-15 mins. Turn halfway frying (pancakes for garnish- per pan through cooking ing soup) Boiling Searing Boiling large quantities of water, cooking pasta, searing Deep meat (goulash, pot roast), deep frying chips frying...
-
Page 11: Cleaning And Care
Cleaning and care Take care! Risk of burns from residual heat. Important Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Important Residues from cleaning agents will damage the appliance. Re- move residues with water and washing up liquid. Cleaning the appliance after each use 1. -
Page 12: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones The desired heat set- Set the heat setting. are not functioning. ting is not set. The fuse in the house’s Check the fuse. electrical wiring (fuse If the fuses trip a number of box) has been tripped. -
Page 13: Installation Instructions
Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. -
Page 14: Electrical Connection Diagram
A device must be provided in the electrical installation which allows the ap- pliance to be disconnected from the mains at all poles with a contact open- ing width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contac- tors. -
Page 15: Assembly
Assembly... -
Page 17: Warranty Conditions
Warranty conditions Standard guarantee conditions We, Moffat, undertake that if within 12 months of the date of the purchase this Moffat appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or re-... - Page 18 European Guarantee If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications: • The guarantee starts from the date you first purchased your product. • The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
-
Page 19: Service And Spare Parts
Customer Care For general enquiries concerning your Moffat appliance, or for further informa- tion on Moffat products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk. - Page 20 822 930 456-B-090806-02 Subject to change without notice...
