Summary of Contents for Moffat ESC5061B

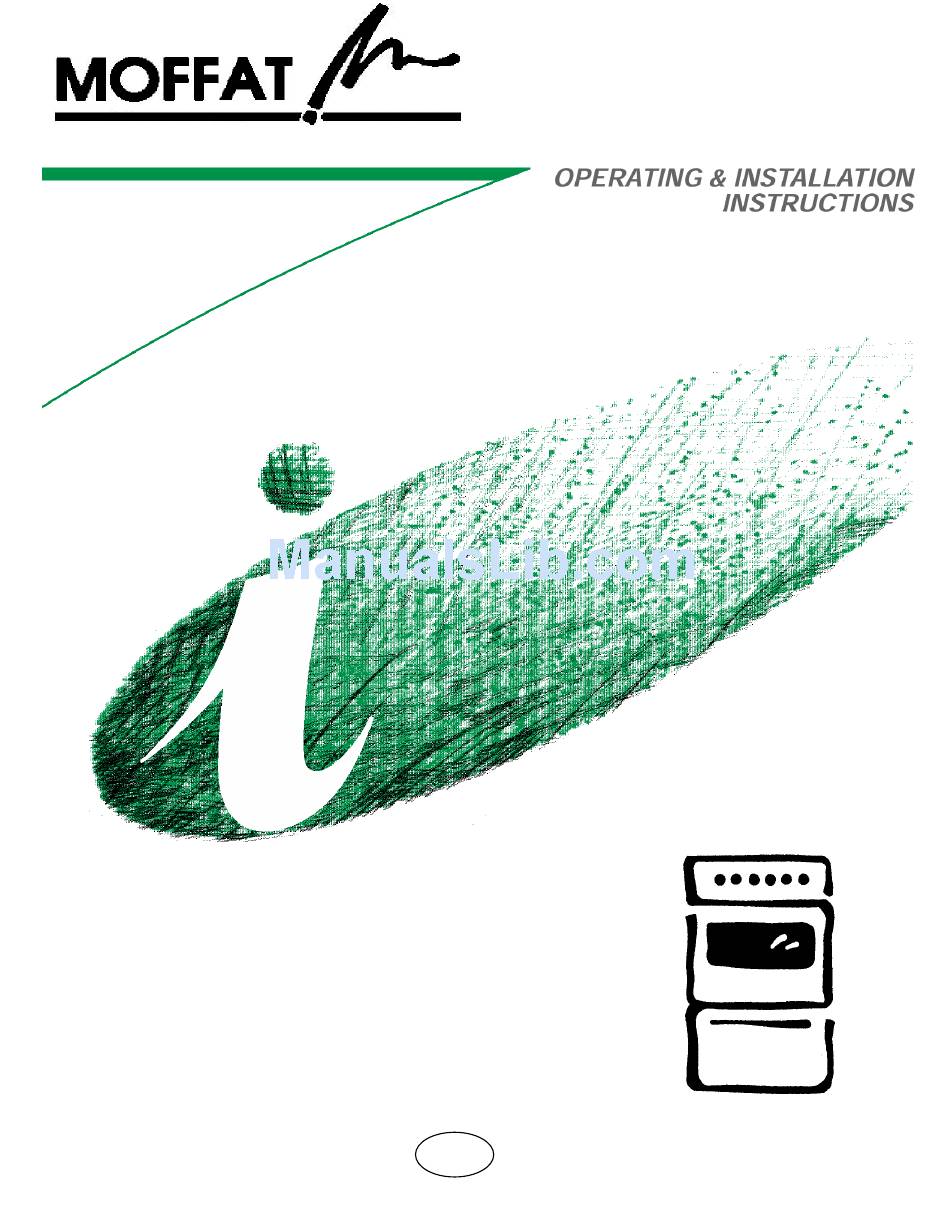

- Page 1 ELECTRIC COOKER ESC 5061 W...
-
Page 3: Table Of Contents
CONTENTS Instructions for the user Instructions for the installer Important Safety Information Technical features Description of the appliance Important safety requirements Operation Location Electric hotplates Hints & Tips Electrical connections Using the electric oven Using the electric grill Hints & Tips Maintenance and Cleaning Something Not Working Service &... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. Installation • This cooker must be installed by qualified • Never leave the cooker unattended when personnel, according to the manufacturer’s cooking with oil and fats. -
Page 5: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 1000W 1500W Control panel Door handle Oven door with glass 2000W 1000W Adjustable 1. Hot plate ∅ 145 – 1000W small feet 2. Hot plate ∅ 180 – 1500W 3. Hot plate ∅ 145 – 1000W Hot plate ∅... -
Page 6: Operation
OPERATION Electric Hotplates To switch on a hotplate, turn the relevant control knob to the required heat setting. The control knob is numbered 0 – 6 0 – OFF 1 – Minimum 6 – Maximum. The hob has two types of hotplates: Normal Hotplates We recommend the plates are switched to maximum (6) for a short while to boost the plate,... -
Page 7: Hints And Tips
Hints and Tips Saucepans for use on solid plates should have several characteristics: They should be fairly heavy duty Good use They should fit the heat area exactly, or be slightly larger for efficient use, NEVER smaller. They should have a flat base to ensure good contact with the plate. -
Page 8: Using The Electric Oven
Using the electric oven Before the first use ensure that the room well ventilated: V.M.C. (Mechanic ventilation) opened window. Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. -
Page 9: Using The Electric Grill
Cooking in the oven Traditional cooking Traditional cooking is made by natural convection the heated air. It is necessary to pre-heat the oven. How to proceed ? For small cakes, pastry, Victoria sandwich. 1. Preheat the oven the thermostat on position chosen for cooking: about 8 min. - Page 10 (toasts, pork bacon, sausage, small fish…) • Use level 2 for thick pieces of meat to be grilled (beef bacon, large fish, poultry). • When the first side is brown, turn the meat without pricking it in order that the juices are not lost.
-
Page 11: Accessories Delivered With The Appliance
Oven Cooking • Turn off the oven 5 minutes before the end of cooking time, and use residual heat to complete the cooking. • The thickness, the material and the colour of the pan will influence the cooking results. • When cooking, certain dishes increase in volume, ensure the pan is large enough. - Page 12 MAINTENANCE AND CLEANING Before any maintenance or cleaning carried out, must DISCONNECT cooker from electricity supply. Cleaning materials Before using any cleaning materials on your oven, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should locking parts NOT be used as they may dull the...
- Page 13 Oven Cavity The enamelled oven cavity is best cleaned whilst the oven is still warm. Wipe the oven over with a soft cloth soaked in warm soapy water after each use. From time to time it will be necessary to do a more thorough cleaning, using a proprietary oven cleaner.
- Page 14 SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
-
Page 15: Service And Spare Parts
Please note that it will be necessary to provide proof of purchase for any in- guarantee service calls. Moffat has an agreement with Electrolux who will undertake all servicing requirements for your appliance. CUSTOMER CARE For general enquiries concerning your Moffat appliance and or for further information on our products,... -
Page 16: Guarantee Conditions
Standard Guarantee Conditions We Moffat undertake that if, within 12 months of the date of the purchase, this Moffat appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at... -
Page 17: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER TECHNICAL FEATURES Free standing Class X Hot plate ∅ 180mm (rapid) Front right 2000W Back right Hot plate ∅ 145mm (normal) 1000W Front left Hot plate ∅ 145mm (normal) 1000W Back left Hot plate ∅ 180mm (rapid) 1500W Total rating 5500W... -
Page 18: Important Safety Requirements
IMPORTANT SAFETY REQUIREMENTS Important This cooker must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations contained following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current Editions. LOCATION The cooker has been registered as a “Class X” appliance according to Fire Risk Regulations. -
Page 19: Electrical Connections
ELECTRICAL CONNECTIONS Important Any electrical work required to install this cooker should be carried out by a qualified electrician or competent person, in accordance with the current regulations. THIS COOKER MUST BE EARTHED The manufacturer declines any liability should these safety measures observed.
