Summary of Contents for Moffat ESC 5061 W GB

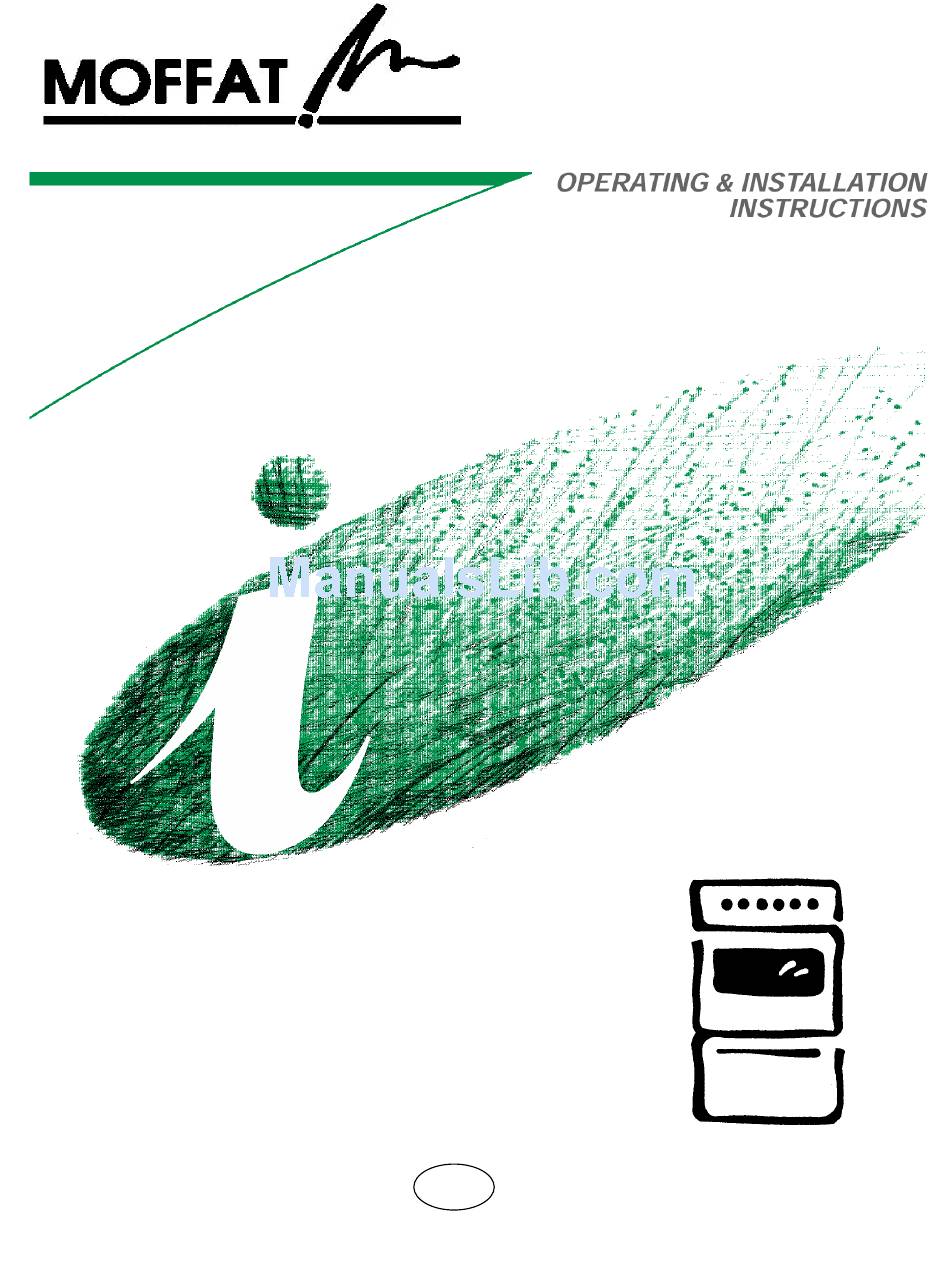

- Page 1 ELECTRIC COOKER ESC 5061 W...
-
Page 3: Table Of Contents
Instructions for the user Important Safety Information Description of the appliance Operation Electric hotplates Hints & Tips Using the electric oven Using the electric grill Hints & Tips Maintenance and Cleaning Something Not Working Service & Spare Parts Customer Care Guarantee conditions The symbols below will guide you when reading the CONTENTS... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. Installation • This cooker must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards. -
Page 5: Control Panel
DESCRIPTION OF THE APPLIANCE Control panel THERMOSTAT 1. Oven function control knob 2. Oven thermostat pilot light 3. Main pilot light Control panel Door handle Oven door with glass Adjustable 1. Hot plate ∅ 145 – 1000W small feet 2. Hot plate ∅ 180 – 1500W 3. -
Page 6: Operation
Electric Hotplates To switch on a hotplate, turn the relevant control knob to the required heat setting. The control knob is numbered 0 – 6 0 – OFF 1 – Minimum 6 – Maximum. The hob has two types of hotplates: Normal Hotplates We recommend the plates are switched to maximum (6) for a short while to boost the plate,... -
Page 7: Hints And Tips
Saucepans for use on solid plates should have several characteristics: They should be fairly heavy duty They should fit the heat area exactly, or be slightly larger for efficient use, NEVER smaller. They should have a flat base to ensure good contact with the plate. -
Page 8: Using The Electric Oven
Using the electric oven Before the first use ensure that the room well ventilated: (Mechanic ventilation) window. Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. -
Page 9: Using The Electric Grill
Cooking in the oven Traditional cooking Traditional cooking is made by natural convection the heated air. It is necessary to pre-heat the oven. How to proceed ? For small cakes, pastry, Victoria sandwich. 1. Preheat the oven the thermostat on position chosen for cooking: about 8 min. - Page 10 (toasts, pork bacon, sausage, small fish…) • Use level 2 for thick pieces of meat to be grilled (beef bacon, large fish, poultry). • When the first side is brown, turn the meat without pricking it in order that the juices are not lost.
-
Page 11: Accessories Delivered With The Appliance
Oven Cooking • Turn off the oven 5 minutes before the end of cooking time, and use residual heat to complete the cooking. • The thickness, the material and the colour of the pan will influence the cooking results. • When cooking, certain dishes increase in volume, ensure the pan is large enough. -
Page 12: Maintenance And Cleaning
MAINTENANCE AND CLEANING Before any maintenance or cleaning can be carried out, you must DISCONNECT the cooker from the electricity supply. Cleaning materials Before using any cleaning materials on your oven, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should NOT be used as they may dull the surface finishes. - Page 13 DO NOT clean the oven door while the glass panels are warm. If this precaution is not observed the glass panel may shatter. If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering.
-
Page 14: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 15: Service And Spare Parts
SERVICE AND SPARE PARTS In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:- Your telephone call will be automatically routed to the Service Force Centre covering your post code area. -
Page 16: Standard Guarantee Conditions
Standard Guarantee Conditions We Moffat undertake that if, within 12 months of the date of the purchase, this Moffat appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that: •... -
Page 17: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER TECHNICAL FEATURES Free standing Front right Back right Front left Back left Total rating Oven Oven Oven power Grill Grill power Total rating Accessories Oven grid Roasting tray Roasting grid Protective screen Supply Rated voltage Rated frequency Total rating Dimensions Height to the hob... -
Page 18: Important Safety Requirements
IMPORTANT SAFETY REQUIREMENTS Important This cooker must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations contained following Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current Editions. The cooker has been registered as a “Class X” appliance according to Fire Risk Regulations. -
Page 19: Electrical Connections
ELECTRICAL CONNECTIONS Important Any electrical work required to install this cooker should be carried out by a qualified electrician or competent person, in accordance with the current regulations. THIS COOKER MUST BE EARTHED The manufacturer declines any liability should these safety measures observed.
