Summary of Contents for Directed Audio 6

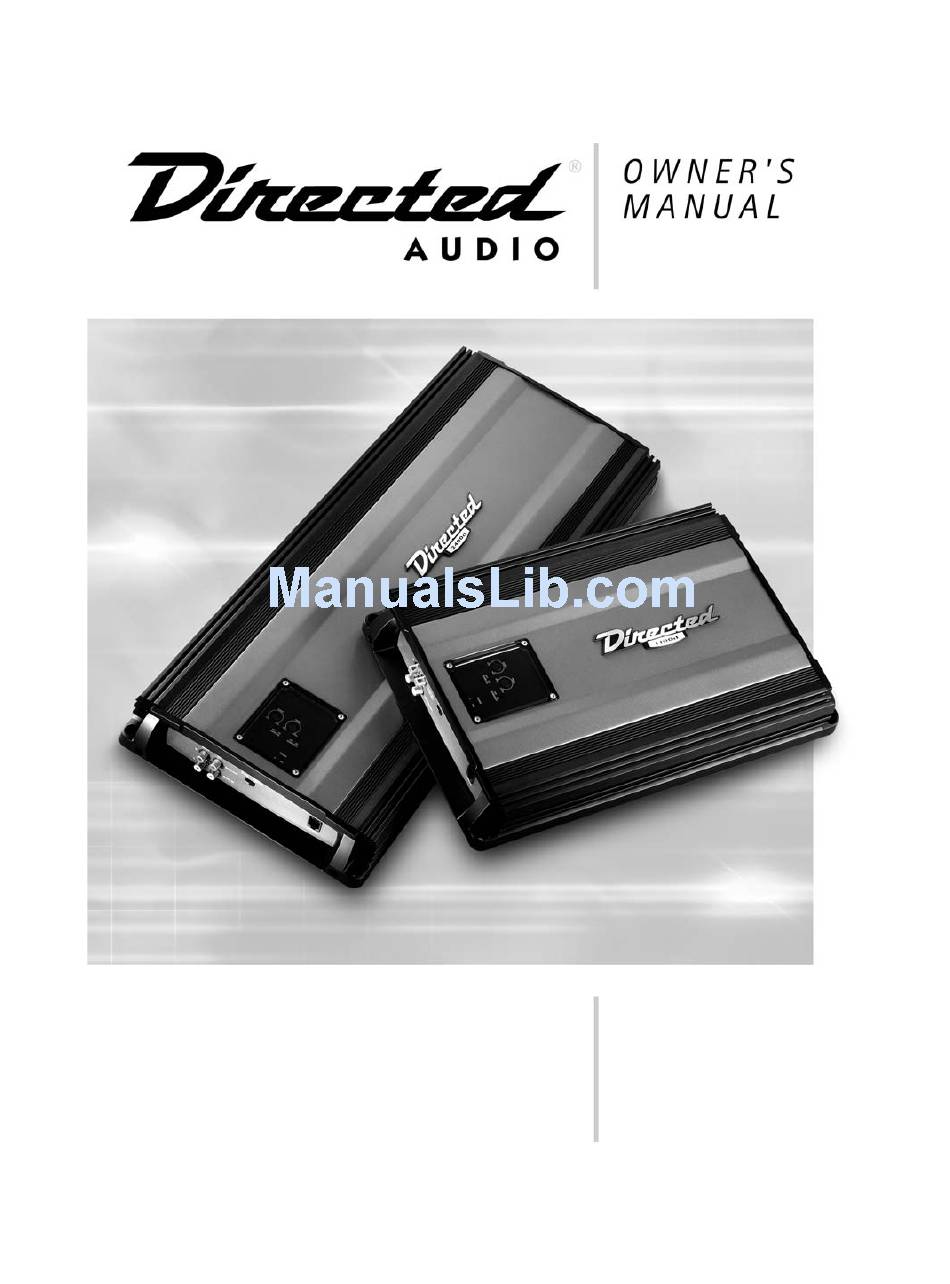

- Page 1 700/6...
- Page 2 © 2003 Directed Electronics, Inc...
-
Page 3: Table Of Contents
Warning ..........5 Installation Guidelines ........6 Front Panel Connections/Status LED . -
Page 4: Limited Two-Year Consumer Warranty
LIMITED TWO-YEAR CONSUMER WARRANTY Directed Electronics, Inc. promises to the original purchaser, to replace this product should it prove to be defective in workman- ship or material under normal use, for a period of two years from the date of... -
Page 5: Features
Dual continuously variable 12 dB/octave two-way active crossovers (ch 1-6, RCA output). Switchable 8 dB bass EQ function and optional remote subwoofer level control (ch 5-6). WARNING High-powered car audio systems may produce sound pressure levels that exceed the threshold at which hearing loss may result. -
Page 6: Installation Guidelines
RCA cables away from the power cables and other potentially noisy car harnesses. 6. The amplifier should be grounded with a short, heavy gauge wire connected directly to the car at a bare metal surface, preferably scraped body sheet metal. - Page 7 (surface area is what counts); soldering the terminals after crimping is also recom- mended. © 2003 Directed Electronics, Inc 10. Due to the high-frequency MOSFET switching power supply, filtering the power cable is not generally required (remember that the amp can’t deliver full output if the power...
-
Page 8: Front Panel Connections/Status Led
4. R R e e m m o o t t e e S S u u b b L L e e v v e e l l C C o o n n t t r r o o l l - Controls the gains of channels five and six FIGURE 1—AMPLIFIER CONNECTIONS 700/6 FRONT from a remote location and can be... -
Page 9: Rear Panel Connections
4. R R e e m m o o t t e e T T u u r r n n O O n n - This terminal turns on the amplifier when (+) 12 volt is applied to it. Connect it to FIGURE 2—AMPLIFIER CONNECTIONS 700/6 REAR © 2003 Directed Electronics, Inc the remote turn on lead of the head unit or signal source. -
Page 10: Top Panel Controls
5+6 switch is ON, channels five and six will derive their signals from chan- nels one through four RCA jacks and no input is needed. If the 5+6 switch is OFF, channels five and six RCA jacks must have input. -
Page 11: Top Panel Features
SPEAKER WIRING DIAGRAMS Stereo operation (top view) Four Channel Stereo with Mono Sub © 2003 Directed Electronics, Inc Remove/Install Four Allen-head screws hold the control panel cover to the amplifier top panel, one at each corner. They can be removed with the wrench supplied in the hardware pack. - Page 12 N N O O T T E E : : When wiring the 700/6 for three channel operation, connect the left audio signal to both channels one and two RCA jacks and the right audio signal to both channels three and four RCA jacks using RCA Y adapters.
-
Page 13: Crossover Settings And Gain Adjustment
Again, plan on spending some time with music that you know, getting the gain and crossover settings the way you like. Test discs and analyzers may help with this process, but in the end it's your ears that count - listen to the music! © 2003 Directed Electronics, Inc... -
Page 14: Specifications
4 bridged into 4 ohms from 20 to 20,000 Hz, with less than 0.1% Total Harmonic Distortion @ 14.4 VDC. Channel 5-6 bridged into 4 ohms from 20-250 Hz, with less than 0.1% THD @ 14.4 VDC. Dynamic power rating (IHF-202 Standard) at minimum... - Page 15 Quality Directed products are sold and serviced throughout North America and around the world Call 800 274 0200 for more information about our products and services © 2003 Directed Electronics, Inc. - All rights reserved - G45065 11/03 The company behind this system is Directed Electronics, Inc.
