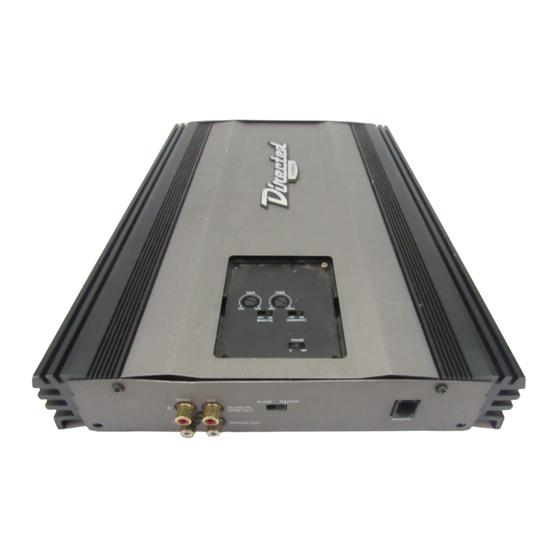

Summary of Contents for Directed Audio model 1200/5

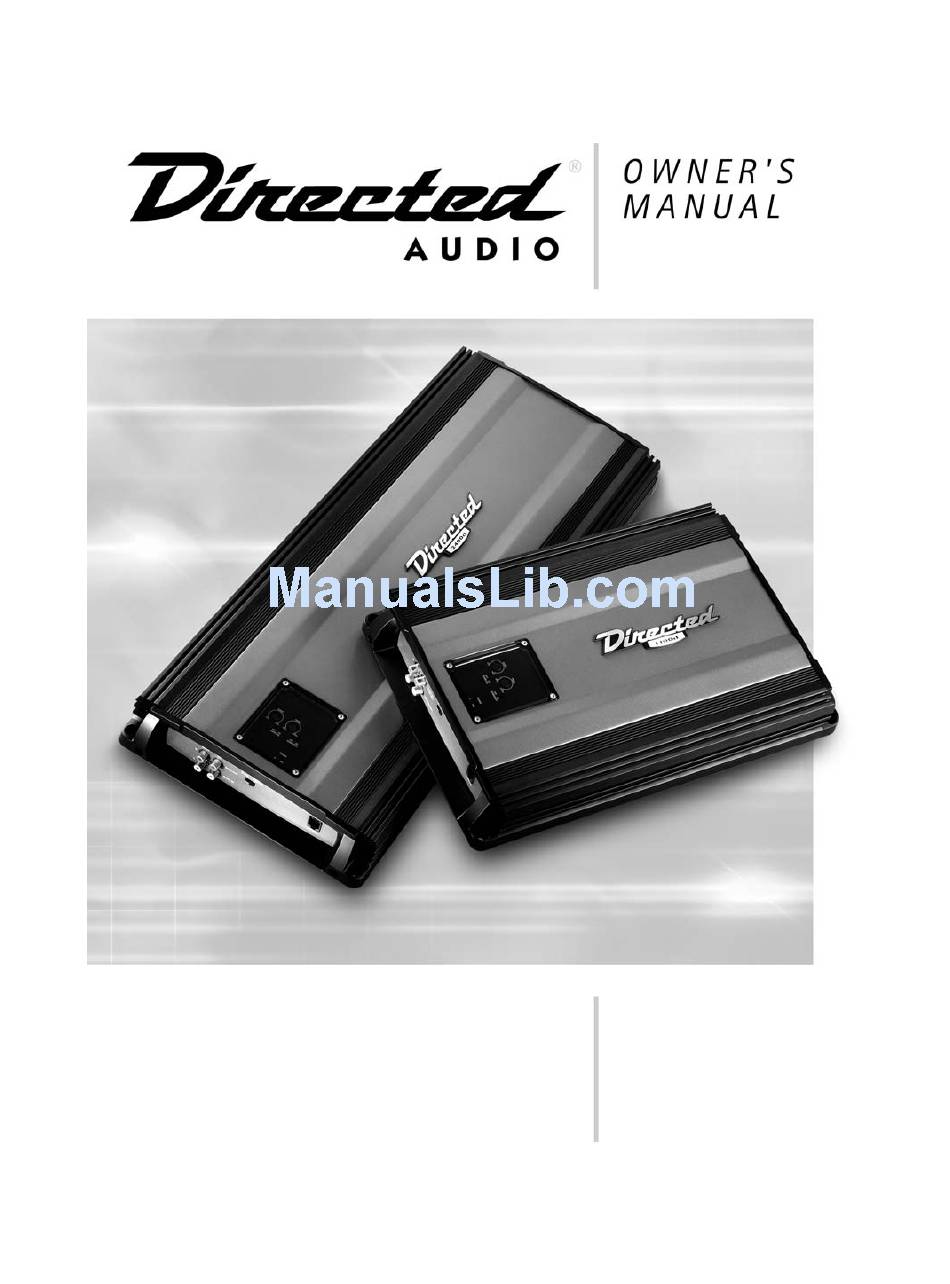

- Page 1 model 1200/5...
- Page 2 © 2003 Directed Electronics, Inc...
-
Page 3: Table Of Contents
Featuring high-efficiency MOSFET power supplies, flexible on-board crossovers, and state of the art audio design, Directed Audio power amplifiers will excite and delight the mobile sound TABLE OF CONTENTS Limited Two-Year Consumer Warranty ......4 Features . -
Page 4: Limited Two-Year Consumer Warranty
LIMITED TWO-YEAR CONSUMER WARRANTY Directed Electronics, Inc. promises to the original purchaser, to replace this product should it prove to be defective in workman- ship or material under normal use, for a period of two years from the date of purchase by the dealer as indicated by the date code marking of the product PROVIDED the product was installed by an... -
Page 5: Features
FEATURES Dual high-speed MOSFET switching power supplies. Complimentary bipolar outputs (ch 1-4), and high-current MOSFET outputs (sub channel). Five channel expandable architec- ture supports single or multiple amp system designs. Thermal, DC offset, reverse polarity, and short circuit protection with status LED. -
Page 6: Installation Guidelines
INSTALLATION GUIDELINES 1. Please read this owner’s manual carefully before installing this ampli- fier. 2. Disconnect the battery ground terminal prior to making any elec- trical connections. 3. Check for any hazards or obstruc- tions such as gas tanks, fuel or brake lines, and wiring harnesses before mounting the amplifier. - Page 7 and the lower your speaker load, the more heat is generated. For low impedance speaker applications or restricted ventilation installations, an external cooling fan may be advisable. 9. Battery and ground connections to the vehicle should be made with crimped ring terminals of the appro- priate size (surface area is what counts);...
-
Page 8: Front Panel Connections/Status Led
FRONT PANEL CONNECTIONS/STATUS LED 1. R R C C A A I I n n p p u u t t J J a a c c k k s s - - Accepts line level outputs from head units or signal processors between 150mV and 8 volts. -
Page 9: Rear Panel Connections
REAR PANEL CONNECTIONS 1. S S u u b b O O u u t t T T e e r r m m i i n n a a l l s s - Connect subwoofers to these terminals. (Refer to the Speaker Wiring Diagrams section of this guide.) 2. -
Page 10: Top Panel Controls
TOP PANEL CONTROLS 1. I I n n p p u u t t G G a a i i n n A A d d j j u u s s t t m m e e n n t t - Controls amplifier sensitivity and is used to match the input level of the ampli- fier to the output level of the signal... -
Page 11: Top Panel Features
FIGURE 3—AMPLIFIER CONTROLS 1200/5 TOP TOP PANEL FEATURES Control Panel Cover The gain and filter controls are located under a control panel cover on top of the amplifier. The control panel cover must be removed to gain access to the gain and filter controls. -
Page 12: Speaker Wiring Diagrams
SPEAKER WIRING DIAGRAMS Five channel operation (top view) Three channel operation (top view) © 2003 Directed Electronics, Inc... -
Page 13: Combined Amplifiers
COMBINED AMPLIFIERS The Directed 1200/5 channel five subwoofer section can be combined with a 750d in a master/slave combination for increased power and accurate level matching. They are the Parallel Synced Gain and External Synced Bridged combi- nations. NOTE: The Directed 1200/5 is always the master amplifier in these combinations. -
Page 14: Parallel Synced Gain Connections/Settings
PARALLEL SYNCED GAIN CONNECTIONS/SETTINGS 1. I I n n p p u u t t / / O O u u t t p p u u t t S S i i g g n n a a l l - Connect these RCA jacks as described in the Front Panel Connections/Controls section of this guide. - Page 15 FIGURE 5—PARALLEL SYNC GAINED 750d/1200/5 Master (1200/5) Slave (750d) Do Not Use Speaker Wiring (top view) SUBWOOFER N N O O T T E E : : The dual + and -- sub-out terminals of the 750d are paralleled internally and the combined load impedance should be taken into consideration when connecting multiple subwoofers.
-
Page 16: External Synced Bridged Connections/Settings
1. I I n n p p u u t t / / O O u u t t p p u u t t S S i i g g n n a a l l - Connect these RCA jacks as described in the Front Panel Connection/Controls section of this guide. - Page 17 FIGURE 6—EXTERNAL SYNC BRIDGED 600d/1100d5 Master (1200/5) Slave (750d) Do Not Use Speaker Wiring (top view) N N O O T T E E : : The dual + and -- sub-out terminals of the 750d are paralleled internally and the combined load impedance should be taken into consideration when connecting multiple subwoofers.
-
Page 18: Crossover Settings And Gain Adjustment
CROSSOVER SETTINGS AND GAIN ADJUSTMENT Your Directed Audio power amplifier needs to be adjusted carefully to achieve maximum performance. These are some guidelines to follow when fine-tuning the amplifier. For full-range and simultaneous stereo/mono bass applications, the crossover selection switch should be set to FLAT. If the amplifier is driving your subwoofers, set the switch to LPF, and for mid-bass/midrange output, set to HPF. -
Page 19: Specifications
SPECIFICATIONS Directed model 1200/5 Ch 1-4 Sub Ch. RMS continuous power per channel, Channels 1-4 driven into 4 ohms from 20 to 20,000 Hz, with less than 0.08% total Harmonic Distortion @ 14.4 VDC. Sub channel driven into 4 ohms from 20-250 Hz, with less than 0.4% THD @ 14.4 VDC. - Page 20 Directed Electronics, Inc. Vista, California 92081 www.directed.com Directed is a proud member of Quality Directed products are sold and serviced throughout North America and around the world Call 800 274 0200 for more information about our products and services © 2003 Directed Electronics, Inc. - All rights reserved - G45059 11/03 The company behind this system is Directed Electronics, Inc.
