Summary of Contents for Directed Audio 150

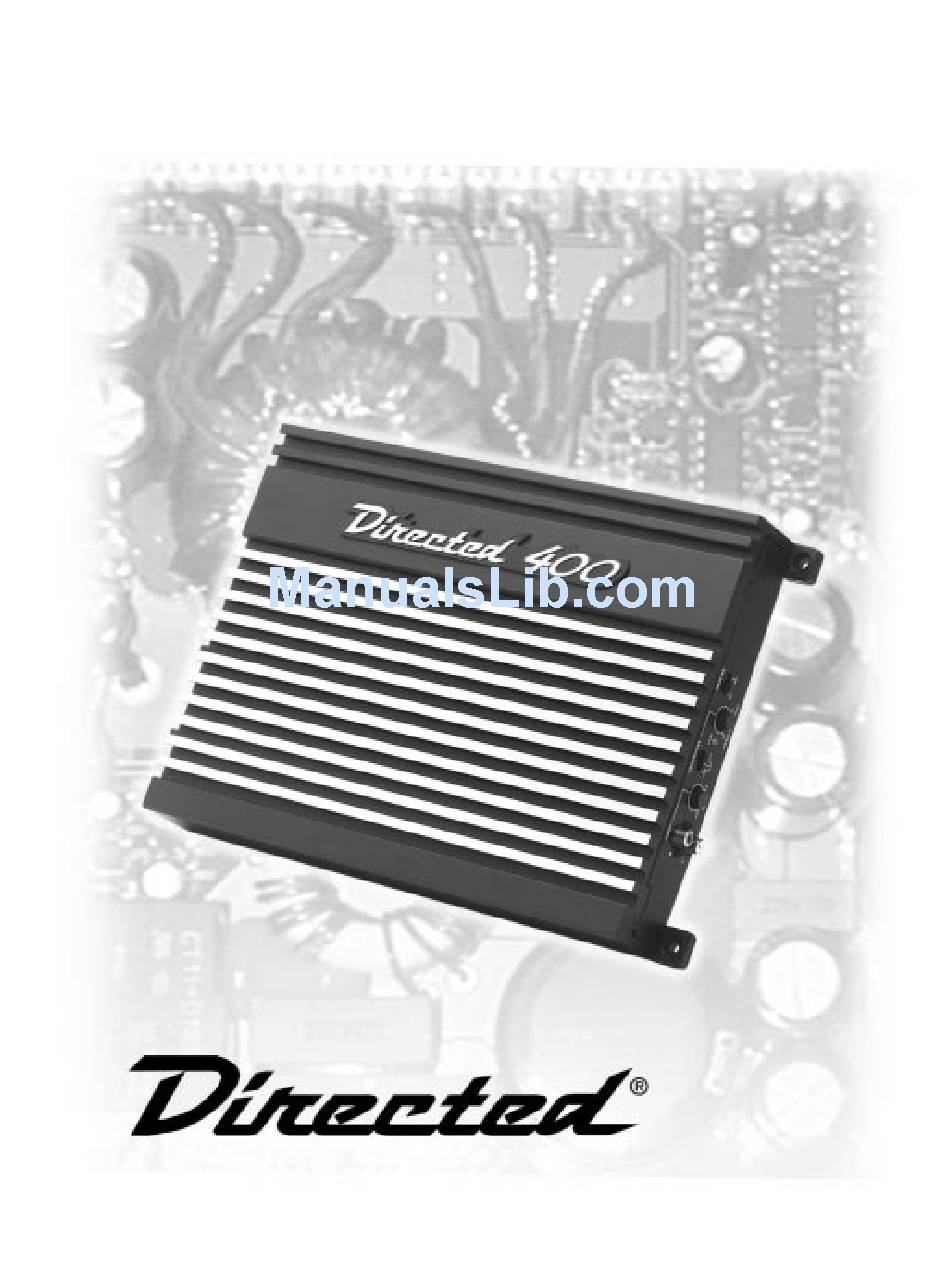

- Page 1 OWNER’S MANUAL Models 150/250/400...
- Page 2 DEI dealer. Amplifiers not installed by an authorized Directed dealer are covered are covered by a one year parts-and-labor limited warranty. Please save your sales receipt and refer to the warranty section of this manual for complete details. © 1999 Directed Electronics, Inc...
-
Page 3: Table Of Contents
© 1999 Directed Electronics, Inc They may also impair a driver’s ability to hear traffic sounds or emergency vehi- cles. Use common sense and practice safe listening habits when listening to or... -
Page 4: Installation Guidelines
8. This amplifier is designed to drive a speaker load that measures from 2- 8 ohms. Keep in mind that heat is the long-term enemy of automotive electronics and that the lower your speaker load, the more heat © 1999 Directed Electronics, Inc... - Page 5 (surface area is what counts); soldering the terminals after crimping is also recommended. © 1999 Directed Electronics, Inc 10. Due to the high-frequency MOSFET switching power supply used in all Directed Audio amplifiers, filtering the power cable is not generally required (remember that the amp can’t deliver full output if the power...
-
Page 6: Amplifier Connections
If the fuse(s) blows, check your system for wiring problems or see your dealer. 5. SPEAKER OUTPUT TERMINALS connect the speakers to these termi- nals. Refer to the speaker wiring diagrams (pg.6) for different wiring options. © 1999 Directed Electronics, Inc... -
Page 7: Amplifier Controls
FLAT is used for full-range or mixed stereo/mono applications. FIGURE 2—AMPLIFIER CONTROLS © 1999 Directed Electronics, Inc 4. LED INDICATOR - the green Power LED lights to indicate normal opera- tion. The green LED will shut off to indicate amp shutdown due to... -
Page 8: Speaker Wiring Diagrams
SPEAKER WIRING DIAGRAMS Stereo operation Mono operation Simultaneous stereo/mono operation © 1999 Directed Electronics, Inc... -
Page 9: Crossover Setting And Gain Adjustment
Test discs and analyzers may help with this process, but in the end it's your ears that count - listen to the music ! © 1999 Directed Electronics, Inc... -
Page 10: Specifications
12 dB/octave, continuously variable from 50 to 500 Hz +8 dB, centered at 40Hz 20K ohms Variable from 150 mV to 8 volt 2 to 8 ohms, stereo 4 to 8 ohms, bridged 10 to 16 VDC © 1999 Directed Electronics, Inc... -
Page 11: Limited Two-Year Consumer Warranty
ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTIC- © 1999 Directed Electronics, Inc ULAR PURPOSE, AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY... - Page 12 • POWER CAPACITORS • GOLD-PLATED POWER DISTRIBUTION AND FUSING BLOCKS • GOLD-PLATED POWER AND SPEAKER TERMINALS Always use a © 1999 Directed Electronics, Inc • Vista, CA 92083 • All Rights Reserved DEI is a proud member of G45022 9/99...
