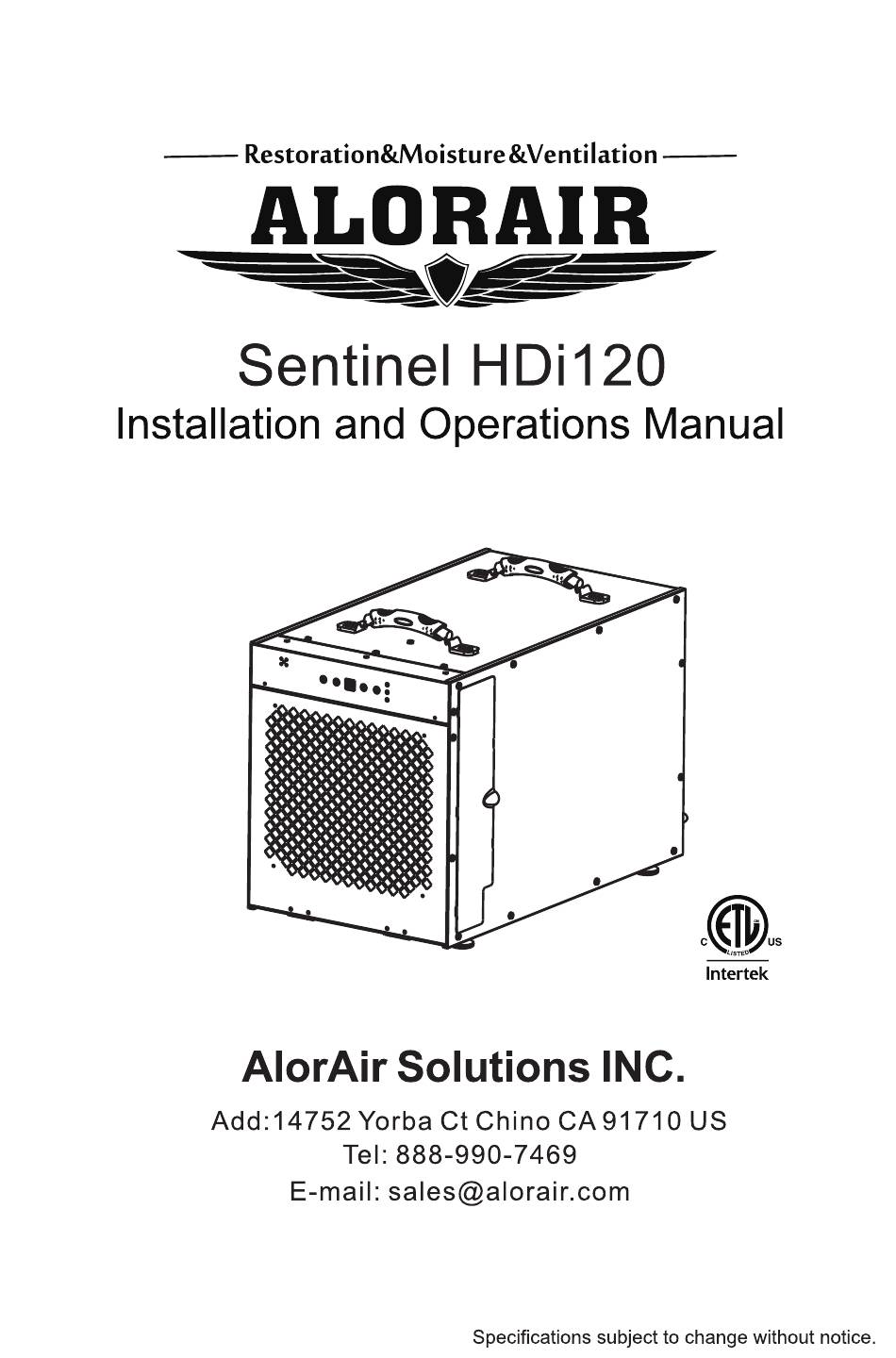

- Page 1 Restoration&Moisture&Ventilation ALORAIR Sentinel HDi120 Installation and Operations Manual Intertek AlorAir Solutions INC. Add:14752 Yorba Ct Chino CA 91710 Tel: 888-990-7469 E-mail: sales@alorair.com Specifications subject to change without notice.
- Page 2 DEHUM/D/F/ERS Table of Contents Important Notes. Warranty Registration Specifications it Works Installation Requirements Installation Key Functions. Indicator Lights. Remote Control Operating Instructions Unit Diagram Maintenance Dehumidifier Storage •11 Ducted Applications Troubleshooting. Spare Parts Warranty Information...
- Page 3 This information is necessary for seeking assistance in the future and can be found on the data label on the side of the unit. Model Number: ALORAIR Sentinel HDi120 Serial Number: Date of Purchase: For additional questions concerning your dehumidifier, contact your local installer or call AlorAir at 888-990-7469...
- Page 4 6' clearance • For the best air diffusion, install the unit so that a side panel faces the wall • Alorair dehumidifiers are only intended for operation when the unit is upright and level with the feet on the ground...
- Page 5 DEHUM/D/F/ERS Installation 1 Place dehumidifier on a level surface • Do not place unit directly on vapor barrier. For example, use blocks or pavers to create a level surface • If unit has been turned or flipped so that the compressor did not remain upright, place the unit on a level surface and wait a minimum of 2 hours before proceeding...
- Page 6 DEHUM/D/F/ERS • The continuous light will illuminate green and the display will show "CO" • To switch back to normal humidistat operation, use the arrow keys to move the setpoint above 36% 4. Manual Drain Button • If you need to store or move your dehumidifier, press the "Drain"...
- Page 7 DEHUM/D/F/ERS Remote Control Instructions AlorAir Dehumidifiers can be controlled using an optional remote accessory. The remote connects to your dehumidifier via a 25' CAT 5 cable, with the integrated sensor giving you multiple options for monitoring surrounding conditions. Example #1- Install the dehumidifier in the laundry room and duct it into the living room Mount the remote in the living room and use the remote sensor.
- Page 8 STOP 4. Water Drainage • The AlorAir Sentinel HDi120 has an integrated condensate pump. During normal operation, the HDi120 will automatically drain as required • If you would like to store or move your unit, press the drain button to drain water from the pump reservoir.
- Page 9 DEHUM/D/F/ERS Unit Diagram Control Panel Handle Side Panel Pre-filter Front View Remote Control Discharge Drain Hose Grille Connection Power Cord Ventilation Fan Port Auxiliary Terminals (Optional) Back View...
- Page 10 • Remove 2 screws on the control board cover. Pump Maintenance Your AlorAir Sentinel HDi120 is equipped with an integral condensate pump designed to pump water from dehumidifier out to the desired drain The pump requires routine maintenance that is not covered by the warranty.
- Page 11 DEHUM/D/F/ERS Removing the Pump 1. Remove the 9 screws on the side panel and set panel aside. 2. Remove the screw holding the pump in place 3. Undo the 3 pump electrical quick connects and 1 drain quick connect. 4. Insert a flat head screwdriver...
- Page 12 DEHUM/D/F/ERS Dehumidifier Storage If the unit will be stored for an extended period of time, complete following steps: 1. Turn off the unit and allow it to dry. 2. Complete steps 1-3 in Advanced Pump Cleaning to clean out the pump reservoir.
- Page 13 DEHUM/D/F/ERS Troubleshooting Symptom Cause Solution Verify that both ends of the power cord are Poor Connection plugged in Diaplay is Blank Power Outage Reset power Clean the filter Filter is Dirty No AirFlow Inlet or Outlet is Blocked. Clear the blockage Check to ensure that...
- Page 14 N-200 AlorAir MERV-I filter AlorAir Main Control AlorAir MERV-IO filter N-201 N-IOO Board Foot, adjustable N-125 AlorAir Display Board N-IOI AlorAir RH/Temp. N-102 Cables Sensor N-102 Temp/RH Sensor Cable Internal Components N-121 Display Ribbon Cable N-801 Compressor 5 Port Internal...
- Page 15 ALORAIR authorized dealer and operated, installed, and maintained according to the instructions included in this user guide or furnished with the product. Alorair Solutions will not provide in-home service during or after the warranty period. You may be responsible for the shipping...
