Introduction
The Reflector pedal is a stereo reverb pedal offering a
maximum delay time of 2000ms. From a spacious hall to the
sound of a studio plate via the pulsing of a vintage spring, the
Reflector recreates six different reverb modes for you to
explore giving you full control over the reverb time, damping
and level of every mode.
The Reflector's dual outputs offer the choice of using a
passive bypass for the main signal path to ensure complete
tonal integrity or allowing the pedal to spill-over allowing your
reverb tails to naturally die away. Combined the outputs create
a stereo reverb effect creating a wide spacious field.
Below is a complete run down of the Reflector's features for
your information. We have also enclosed a number of
suggested settings to help guide you. It should be
remembered that these are only suggested settings and you
should really experiment as much as possible.
2

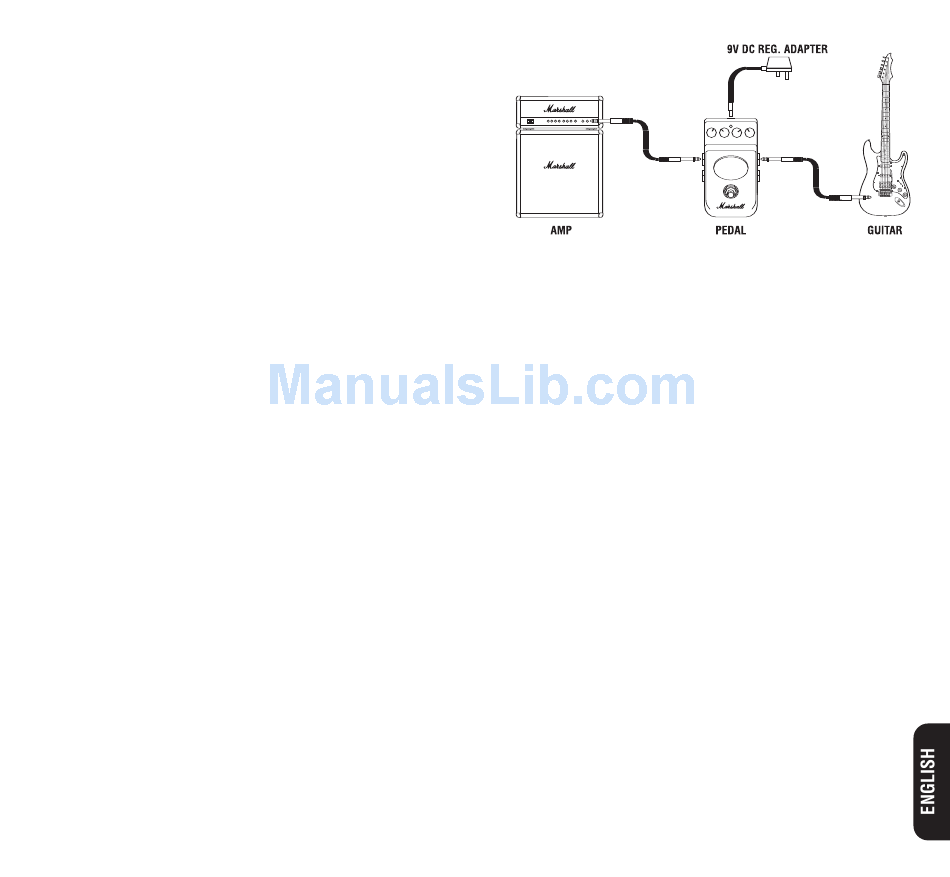

Setting Up
Always use good quality shielded leads.
Always use 9V regulated DC supply with centre negative rated
at 80mA or above.
Although it may seem obvious the first action in achieving a
good effected sound (be it duration / compression etc.) is to
find the perfect bypassed sound. This will then allow the
correct level to be set with the effect unit to allow a cut or
boost in volume and a realistic tone.
On clean channels it is advisable to set the gain (or volume)
to a setting of no less than one quarter maximum so as not to
get unrealistic results due to any volume dependent tonal
shaping on the amplifier preamp.
Features
1. 'In' Jack Socket
This is the input jack for connection to your guitar or to the
output of another effects pedal when linking pedals together.
2. 'Expression' Socket
An expression pedal can be connected to this socket to
control the decay time. Moving the pedal overrides the
reverb time setting on the pedal allowing you to
increase/decrease the control as you perform.
