Summary of Contents for Marshall Amplification EFFECT PEDAL RF-1 REFLECTOR

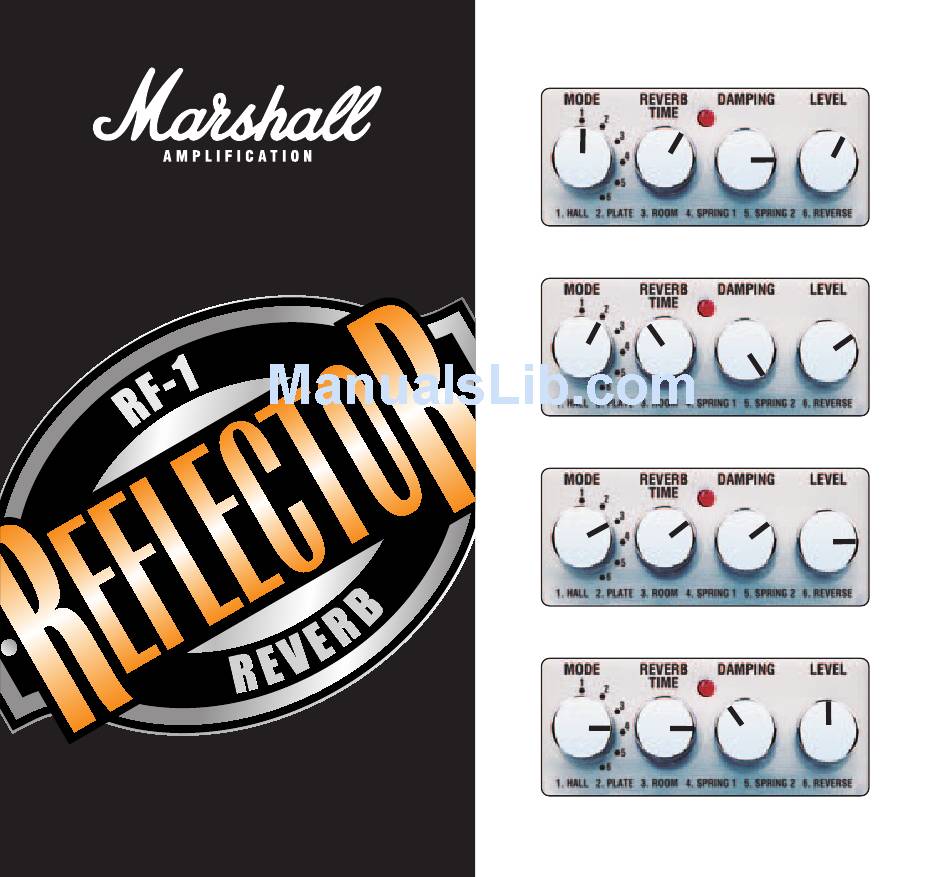

- Page 1 Reflector Suggested Settings RF-1 Reflector HALL (Amp: Clean) PLATE (Amp: Clean) ROOM (Amp: Clean) SPRING (Amp: Clean) Owners Manual...
- Page 2 However, there is no guarantee that interference will not occur in a particular installation. If this the classic Marshall tone to add Marshall character to a guitar equipment does cause harmful interference to radio or television set-up.
- Page 3 Introduction Setting Up The Reflector pedal is a stereo reverb pedal offering a maximum delay time of 2000ms. From a spacious hall to the sound of a studio plate via the pulsing of a vintage spring, the Reflector recreates six different reverb modes for you to explore giving you full control over the reverb time, damping and level of every mode.
- Page 4 3. 'Out 1 / Left' Jack Socket - Passive Bypass 6. Reverb Time Out 1 is connected to a passive bypass circuit. The passive Controls the decay time of the reverb tail from no tail (fully bypass ensures complete tonal integrity by disconnecting the anti-clockwise), providing just the initial sense of space, to full output of the effects circuit when not in operation.
-
Page 5: Troubleshooting
Trouble Shooting Battery Replacement 1. To replace the battery, open the easily accessed coin screw battery cover plate by loosening screw as shown, then disconnect the battery connector lead. 2. Use PP3 or equivalent battery (for improved battery life use alkaline type).
