NextBase MULTI-VISION SET PRO Manual

版 本 ：A/1

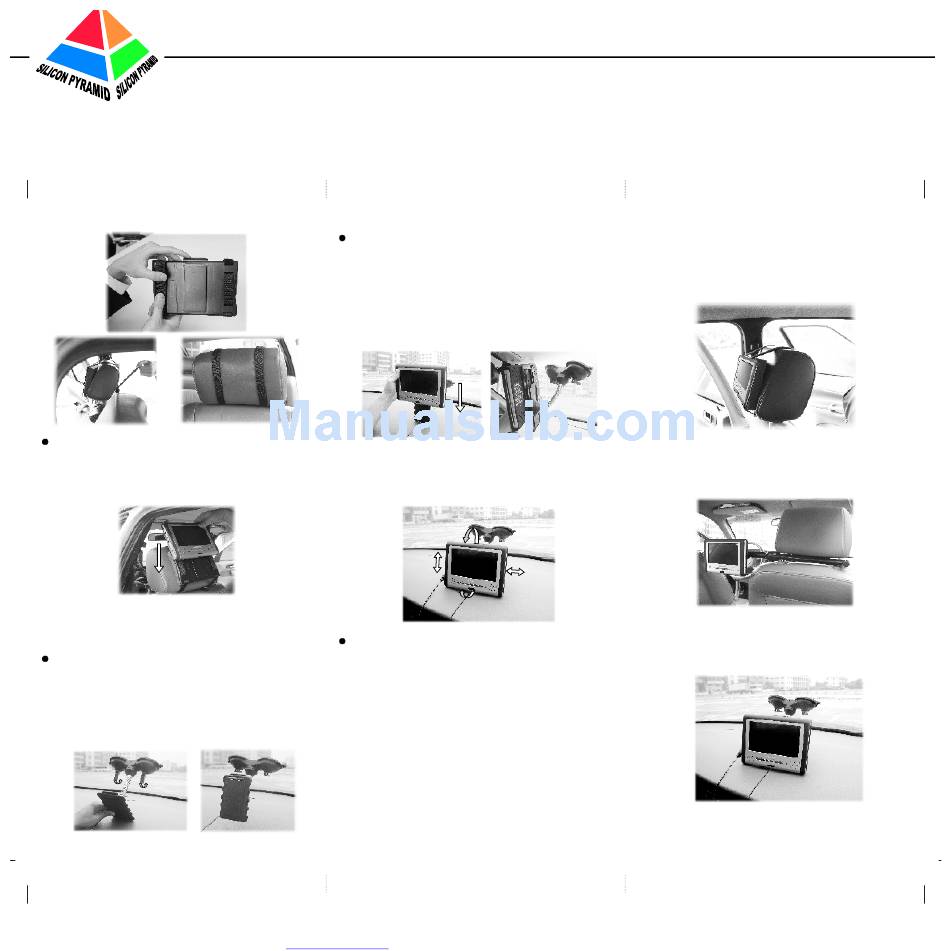

Fitting portable DVD player to headrest mount

1. These instructions assume the backplate is installed on the rear of the
portable DVD player, as introduced above.
Holding the portable DVD player the correct way up and by the edges, offer
the rear of the screen up to the centre of the headrest mount. See diagram
below.
2. Lower the portable DVD player and placing the groove on the backplate of the
portable DVD player over the raised slot in the middle of the headrest mount.
See relative diagrams. Gently push the screen all the way down until the lock
clicks.

Fitting and use of the mirror stand in car

Before installation, rip off the films of the two cupules first. Then choose the
desired place of the windshield and clean it. Put the cupules onto the place and
fix them by pushing down the two small handles on both rear sides. Then the
mirror stand will be fixed firmly. See diagram below.
Caution:
Please make sure that before installation, the place for the cupules should
be clean and smooth. Or else the mirror stand will fall off easily.
Page 4
修 改点 ：把 部 分 " " 这个 单 词 换 为 "
A/1 cupu le
制定： 鲍恩华
PDF 文件使用 "pdfFactory Pro" 试用版本创建
广 州矽 金 塔 电 子有 限 公 司
MVS PRO 英文说 明书
日 期：2005.07 .13

Fitting the portable DVD player to the mirror stand

1. Turn the portable DVD player mounting plate on the mirror stand to the
suitable direction. Slide the portable DVD player in place by using a sliding
action. The T shaped raised slot in the middle of the mounting plate must
engage with the guide(s) on the back of the portable DVD player. See
diagram below.
Pls. Note that the mirror stand has an integral latch to hold the portable
DVD player securely in place. Ensure this latch is engaged by hearing it
click in to place.
2. Once the portable DVD player is in position, adjust the viewing angle and
screen direction for optimum pleasure by gently moving the portable DVD
player in either the rotational, fwd/aft or up and down directions.
See diagram below.

Removal of the products

1. Removal of the portable DVD player from the centre arm, headrest mount
and mirror stand is as follows:
Press the latch release button and slide the portable DVD player upwards
to disengage it from the centre arm, headrest mount or
2. Removal of the centre arm, headrest mount and
of the installation method.
Note:
When removing the
lift the two eared rubber on the outer side of each cupule. Then the
stand can be removed conveniently.
。 "
mirror
www.fineprint.cn
mirror stand.
mirror stand is the reverse
mirror stand, pull up the two small handles first. And
mirror
Page 5
MVS02-ENG-NB-A/1
确认 ：李刚
：
Ref No. SP-MVSPRO-PD-DWG-002
M V S P RO
Mu lti -V i sion S et PRO
O per atin g I nst ruc tio ns
批准： 洪伟 兵
