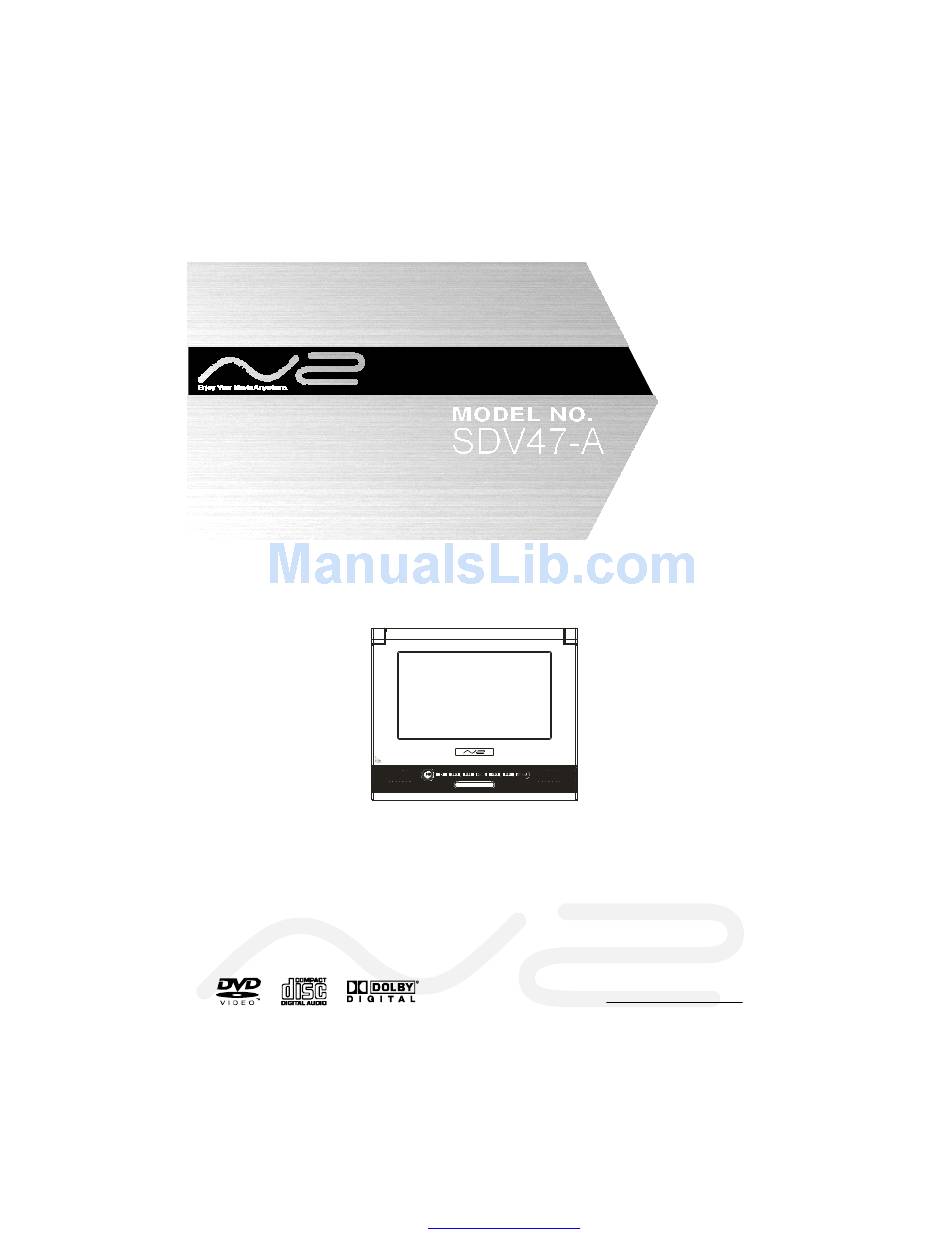

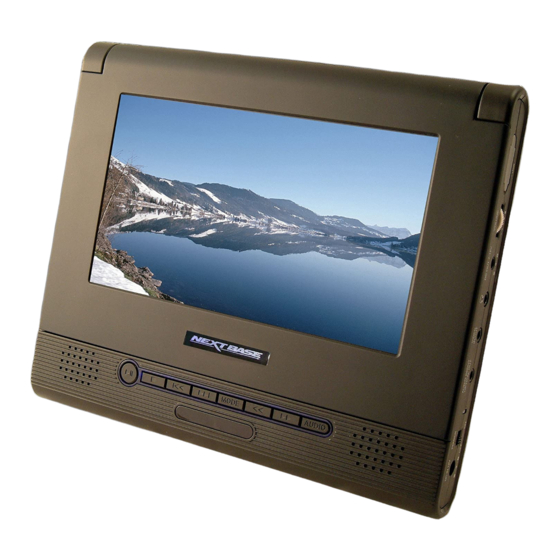

- Page 1 OPERATING INSTRUCTIONS En joy Your Movie Anyw here. MODEL NO. SDV47-A WWW.N2.COM.HK PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
-
Page 2: Important Safety Instructions Important Safety Instructions
1. Read these instructions. 2. Keep these instructions. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 3: Precautions Precautions
Thank you for purchasing this tablet DVD player. Please read this manual carefully before operating and reserve it for future reference. It will be helpful to you if you encounter any operational problem. WARNING: ATTENTION: L ASER: ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用... - Page 4 PDF 文件使用 "pdfFactory Pro" 试用版本创建 PRECAUTIONS CAUT ION: There servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
- Page 5 MA CROVISION: DOLBY: ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 PRECAUTIONS This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision. If not, the use of this technology is only permitted for domestic use and other limited playback uses.
-
Page 6: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS... PRECAUTIONS PRECAUTIONS... TABLE OF CONTENTS TABLE OF CONTENTS... CAUTIONS ON USING THIS PLAYER CAUTIONS ON USING THIS PLAYER...7 DISCS PLAYABLE TYPES OF DISCS PLAYABLE ON THIS PLAYER... PLAYABLE FORMATS... PACKAGE CONTENTS PACKAGE CONTENTS... PARTS AND CONTROLS FRONT SIDE... - Page 7 PLAYING A MP3 FORMAT DISC AND JPEG CD... USING THE USB PORT... SETUP THE PLAYER GENERAL STEPS OF SETUP... SYSTEM SETUP TV SYSTEM... SCREEN SAVER... TV TYPE... PASSWORD... RATING... DEFAULT... LANGUAGE SETUP OSD LANGUAGE... AUDIO LANGUAGE... SUBTITLE LANGUAGE... MENU LANGUAGE... ENJOY YOUR MOVIE ANYWHERE.
-
Page 8: Cautions On Using This Player
CAUTIONS ON USING THIS PLAYER 1.DO NOT MOVE THE PLAYER DURING PLAYBACK During playback, the disc spins at high speed. So do not lift or move the player. Doing so may damage the disc. 2.TRA NSPO RTING THE PLAY ER Before transporting the player, be sure to remove the disc and turn off the power, then unplug the power cord. - Page 9 7.W HEN USING WITH CAR POWE R CABLE IN CARS Please turn on the engine first and connect the car power cable for using. 8.C LEAN ING T HE PL AYER Normally clean the player with a soft, dry cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly.
-
Page 10: Types Of Discs Playable On This Player
TYPES OF DISCS PLAYABLE ON THIS PLAYER The discs listed on the table below can be played on this player without an adapter. The marks shown on the table below are indicated on the disc's label, package or jacket. Types of playable discs and their marks MARKS INDICATED ON DVDS... -
Page 11: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS After unpacking, first check the contents of your DVD player package, as listed below: Opera ting ma nual Main unit AC / DC adapter Car power cable Card-type remote control unit Headrest mount NOTES:Actual products' appearance might vary slightly from the pictures shown. ENJOY YOUR MOVIE ANYWHERE. -
Page 12: Parts And Controls
FRONT SIDE RIGHT SIDE PDF 文件使用 "pdfFactory Pro" 试用版本创建 PARTS AND CONTROLS Disc compartment cover MODE button TFT Screen REV button PLAY / PAUSE button FWD button STOP button AUDIO button PREVIOUS button OPEN button (Push it to open the cover.) NEXT button Remote control sensor Loudspeaker... -
Page 13: Button Definition
BUTTON DEFINITION 1.PLAY / PAUSE button Press it to play. When pressing during playback, pause mode is set. Press again to resume playback. 2.STOP button Press it to stop playback. 3.PREVIOUS button Press it to locate the beginning of the previous track or chapter. 4.NEXT button Press it to locate the beginning of next track or chapter. -
Page 14: Main Unit Rear Side
PARTS AND CONTROLS MAIN UNIT REAR SIDE Suppor t Th e unit can stand with this devic e. HOW TO STAND 1.Pull out the support. 2.Draw out the support to a proper position . ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn... -
Page 15: Remote Control
PARTS AND CONTROLS REMOTE CONTROL ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn... -
Page 16: Key Description Of Remote Control
KEY DESCRIPTION OF REMOTE CONTROL 1 S ETUP Press this button to display setup screen when at stop status. 2 AUD IO SU BTIT LE Press this button to switch the DVD's subtitle language. 4 ANG LE Press this button to switch angles. 5 MEN U Press this button to display the DVD's menu screen. -
Page 17: Notes On Using The Remote Control Unit
27 REPEAT NOTES ON USING THE REMOTE CONTROL UNIT REPLACING THE BATTERY Insert your finger nails into A and B on the diagram below, press A according to the direction, then pull out the battery holder. Fit the battery holder back to its place. ENJOY YOUR MOVIE ANYWHERE. -
Page 18: Fitting Headrest Mount
2. Adjust to your deserved viewing angle, then firmly secure the mount by FITTING TABLET DVD PLAYER TO HEADREST MOUNT Gently slide the Portable DVD player the headrest mount, until you hear the click sound. See diagram below. PDF 文件使用 "pdfFactory Pro" 试用版本创建... -
Page 19: Audio/Video Connections
AUDIO / VIDEO CONNECTIONS CONNECTING THE PLAYER TO A TV SET black yellow yellow white ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn... -
Page 20: Connecting The Adapter To The Dc In 12V Socket
AUDIO / VIDEO CONNECTIONS CONNECTING THE ADAPTER TO THE DC IN 12V SOCKET USING THE EARPHONE 1. Set the volume control to minimum sound level. 2. Connect the earphone plug to the player's " " jack. 3. Adjust the volume control to the preferred sound level. ENJOY YOUR MOVIE ANYWHERE. -
Page 21: Connecting The Player To Other Devices
CONNECTING TO A DOLBY DIGITAL / MPEG DECODER OR AN AMPLIFIER WITH BUILT-IN DECODER With this player, you can enjoy powerful Dolby Digital or MPEG sound. Output the digital signals from the player's digital output to a decoder or amplifier with the built-in decoder. -
Page 22: Connecting To A Digital Amplifier That Is Not Dobly Digtal/Mpeg Compatible
CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO A DIGITAL AMPLIFIER THAT IS NOT DOLBY DIGITAL / MPEG COMPATIBLE Output the digital signals from the player is not Dolby/MPEG compatible. For instructions of audio settings, refer to AUDIO OUT of AUDIO SETUP. Main unit right panel Notes: Carefully check the player... -
Page 23: Connecting To Active Speaker Systems
CONNECTING TO ACTIVE SPEAKER SYSTEMS ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 CONNECTING THE PLAYER TO OTHER DEVICES Main unit right side yellow black Signal flow To Video Input jack yellow Active speaker systems www.fineprint.cn AV cable To audio input jacks... -
Page 24: Basic Operations
TURNING ON THE POWER TURNING OFF THE POWER 1.When the power is on, switch the power button to OFF position. 2.Unplug the power cord from the power outlet. 3.Disconnect the AC/DC adapter from the player's DC input jack. PDF 文件使用 "pdfFactory Pro" 试用版本创建 BASIC OPERATIONS 1.Connect the AC/DC adapter to the socket. -
Page 25: Loading
LOADING ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 BASIC OPERATIONS Press OPEN button to open the cover. Place in a disc and press it down with your fingers near the center hole. A click is heard. Note s: Set the disc securely. -
Page 26: Replace 6 Pcs Aa Batteries
REPLACE 6 PCS AA BATTERIES 1. Open the batteries cover. 2. Replace the 6 PCS AA batteries. 3. Generally speaking, DVD playback time will be more than two hours with 6 PCS Ni-MH batteries of 2300 mAh. NOTE: 1. The playback time of the batteries has much to do with discs and operation factors etc.. -
Page 27: Playback
PLAYBACK 1. Turn on the power of the player. 2. Open the disc cover. 3. Insert a disc correctly. 4. Close the cover. 5. The player will load the disc and play automatically. If the disc does not play, push the STOP PLAYBACK 1. -
Page 28: Playing At Fast Speed
PLAYING AT FAST SPEED 1. Press or on the remote control during playback. 2. The playback speed will be changed each time you press the The speed will be changed to 2X, 4X, 8X, 20X, 1X each time you press the button. PLAYBACK IN SLOW MOTION 1. -
Page 29: Zoom Function
ZOOM FUNCTION 1. Press ZOOM on the remote control during playback. The picture on the screen will be zoomed. 2. The zooming rate changes each time the ZOOM button is pressed. The sequence is 2X, 3X, 4X, 1/2X, 1/3X, 1/4X, SEARCHING FOR A SPECIFIC SCENE 1. -
Page 30: Program Playback
PROGRAM PLAYBACK The program playback function can automatically play titles, chapters, or tracks in accordance with the programmed order. NOTES: When the DVD video player is turned off or the discs are removed, the programmed items will be removed. Referring the disc, some may not have this function. Selecting an inexistent title or chapter, program playback cancels automatically. -
Page 31: Using The On-Screen Display
USING THE ON-SCREEN DISPLAY 1. This DVD video player allows you to view the operational status and disc information on the screen. 2. Press the OSD button on the remote 3. Press the OSD button again, the PLAYING A MP3 FORMAT DISC AND JPEG CD In order to play Mp3 files, move the cursor to MP3 ICON and press the ENTER button. -
Page 32: Using The Usb Port
USING THE USB PORT 1. Turn on the power of the player. 2. Plug the USB card into the USB port of the DVD player. The USB card will be read automatically. 1. If the disc is playing, the USB card can not be read. 2. -
Page 33: Setup The Player
GENERAL STEPS OF SETUP 1. Press the SETUP button on the remote control, the main setup menu appears. 2. Press the LEFT and RIGHT buttons to highlight the icon of the desired page, then press the DOWN or UP button to activate that page. 3. -
Page 34: System Setup Tv System
The system setup options are illustrated below: TV SYSTEM If you want to connect the player to a TV, please choose a correct TV system first. NOTE: Setting with the incorrect TV system will result in a black and white picture on your TV screen. -
Page 35: Tv Type
TV TVPE 16 : 9 (Wide Screen): Choose this setting if your DVD player is connected to a wide screen TV. If you choose this setting and you don't have a wide screen TV, the images on the screen may appear distorted due to vertical compression. 4 : 3 LB (Letter Box): Choosing this setting if your DVD player is connected to a normal ratio TV. -
Page 36: Password
PASSWORD Step1: For first time use: enter 0000 as password or assigned password to unlock. Step2: Once parental control is unlocked, go to rating menu and assign rating. Step3: Enter a new password of your choice in 4 digits to lock the player rating. If you forget your assigned password, you can use 0000 to unlock the rating again. -
Page 37: Osd Language
The language setup options are illustrated below: OSD LANGUAGE Highlight the OSD LANGUAGE option, and press the arrow buttons to choose the OSD language you prefer. Press ENTER to confirm, and it will display the OSD in the language you have chosen. There are 5 optional OSD languages: English, German, Spanish, French and Italian. -
Page 38: Subtitle Language
SUBTITLE LANGUAGE Highlight the SUBTITLE LANG option, and press the arrow buttons to choose the subtitle language you prefer. Press ENTER to confirm. If the disc you are playing has that language available, it will display subtitles in that language. There are 7 optional subtitle languages: Chinese, English, Japanese, French, Spanish, Italian and German. -
Page 39: Audio Out
AUDIO OUT Highlight the AUDIO OUT option, and press the arrow buttons to choose the audio output mode you prefer. Press ENTER to confirm: There are 3 optional audio output modes: SPDIF / OFF, SPDIF / RAW and SPDIF / PCM. -
Page 40: Video Setup Brightness
The video setup options are illustrated below: BRIGHTNESS Use the UP and DOWN buttons to move the scroll and adjust the brightness. CONTRAST Use the UP and DOWN buttons to move the scroll and adjust the contrast. PDF 文件使用 "pdfFactory Pro" 试用版本创建 VIDEO SETUP VIDEO S ETU P B R IGH TN ES S... -
Page 41: Hue
Use the UP and DOWN buttons to move the scroll and adjust the hue. SATURATION Use the UP and DOWN buttons to move the scroll and adjust the saturation. ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 VIDEO SETUP VIDEO S ETU P BR IGH TNES S CON TR AS T... -
Page 42: Digital Setup Op Mode
The digital setup options are illustrated below: OP MODE There are two output modes: one is LINE OUT; the other is RF REMOD. LINE OUT: To carry out the linear compression function for input signal. RF REMOD: Choose it during the daytime for the sake of its high volume. DYNAMIC RANGE Choose this setting to adjust the line out compressing ratio and get different effects. -
Page 43: Size And Parameter
SIZE AND PARAMETER ENJOY YOUR MOVIE ANYWHERE. PDF 文件使用 "pdfFactory Pro" 试用版本创建 OTHERS Product name: TABLET DVD player Power: D C12V Consumption: < 8.5W Audio out: R /L 2ch ,OPTI CAL Video out: C ompo site 2 10X17 5X40m m Size: Weight: 7 10g (W /O ba ttery) -
Page 44: Trouble Shooting
TROUBLE SHOOTING Symptoms The disc does not play Maintenance and clean the unit only as recommended in the operational instructions. DA MAGE REQU IRING SERVICE DO NOT ATTEMPT TO SERVICE THE UNIT BY YOURSELF! PDF 文件使用 "pdfFactory Pro" 试用版本创建 P ossible causes Disc is loaded incorrectly. - Page 45 SD V47-A-ENG-N2-A1 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
