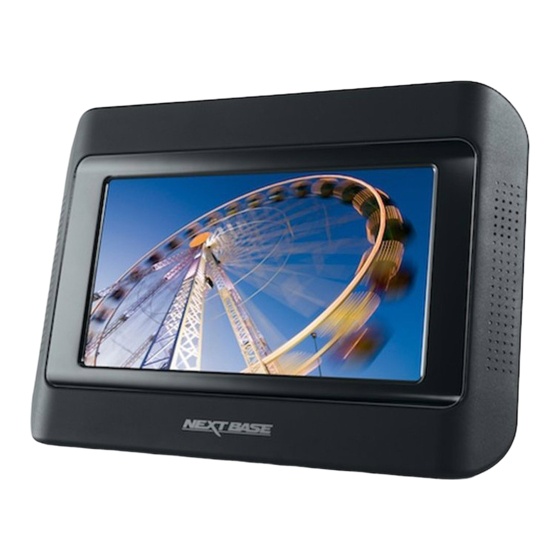

NextBase SDV685-AM Operating Instructions Manual

NextBase SDV685-AM Operating Instructions Manual

Tablet dvd player
Table of Contents

Advertisement

MODEL NO.
SDV685-AM

OPERATING INSTRUCTIONS

PDF 文件使用 "pdfFactory Pro" 试用版本创建
www.fineprint.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDV685-AM and is the answer not in the manual?

Questions and answers

Summary of Contents for NextBase SDV685-AM

  • Page 1: Operating Instructions

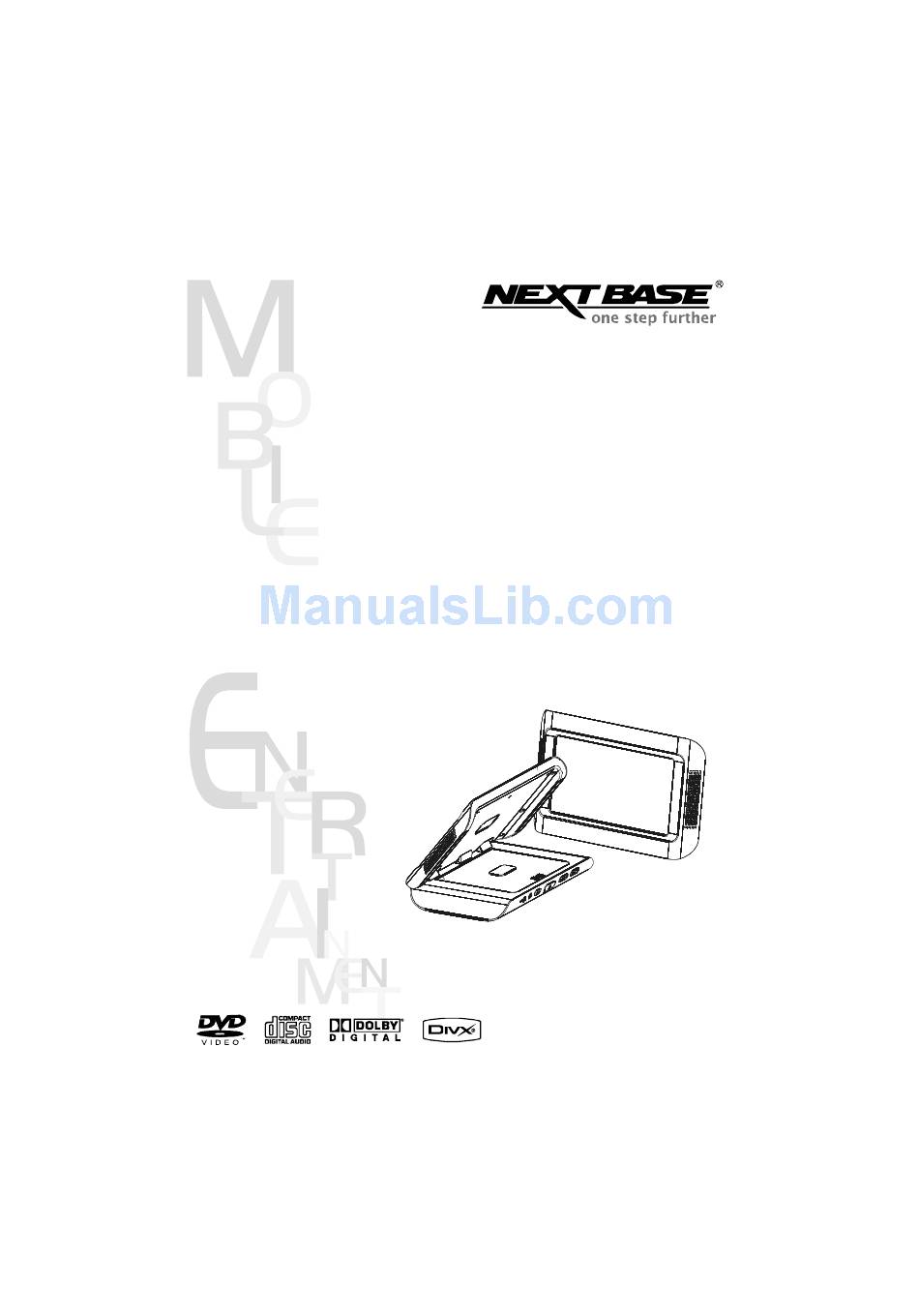

    MODEL NO. SDV685-AM OPERATING INSTRUCTIONS PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 2: Important Safety Instructions

    1. Read these instructions. 2. Keep these instructions. 3 Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 3 Thank you for purchasing this tablet DVD player. Please read this manual carefully before operating and reserve it for future reference. It will be helpful to you if you encounter any operational problem. WA RNING: AT TENTION: MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 PRECAUTIONS To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture, Dripping or splashing and that no...
  • Page 4 PRECAUTIONS within MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 5 PRECAUTIONS MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 6: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIO NS PRECAUTIO NS TABLE OF C ONTE NTS CAUTIONS O N USING THIS PLAY ER DISCS PLAYABLE PACKAGE CONTENTS PARTS AND CONTENTS AUDIO/VIDEO CONNECTIO NS CONNECTIO NS CONNECTING THE PLAYER TO OTHER DEVICES CONNECTIO N BETWEEN PLAYE RS BASIC OPERATIO NS PDF 文件使用...
  • Page 7: Table Of Contents

    SE TUP T HE PL AYER SY STEM SETUP BASIC O PERATIONS SY STEM SETUP LA NGUA GE SETUP AUDIO S ETUP VID EO S ETUP DIGITAL SETUP OTHERS MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 TABLE OF CONTENTS STO P PLAYBAC K... 27 PAU SE PLAYBACK...
  • Page 8: Cautions On Using This Player

    CAUTIONS ON USING THIS PLAYER 1. DO NOT MOVE THE PLAYER DURING PLAYBACK During playback, the disc spins at high speed. So do not lift or move the player. Doing so may damage the disc. 2. TRANSPORTING THE PLAYER Before transporting the playe r, be sure to remove the disc an d turn off the power, then unplug the power cord.
  • Page 9 7. WH EN U SING WITH CAR P OWER CAB LE IN CARS Please turn on the engine and then connect the car power cable for using. 8. CL EANIN G TH E PLAYER Normally clean the player with a soft, dry cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly.
  • Page 10: Type Of Disc Playable On Thi Player

    DISCS PLAYABLE TYPES OF DISCS PLAYABLE ON THIS PLAYER Marks indicated on DVDs PLAYABLE FORMATS The unit is able to play most audio/video files such as: PICTURE: JPEG AUDIO: MP3, WMA VIDEO: DAT, VOB, MPEG2, MPEG4 (AVI) MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 11: Package Contents

    PACKAGE CONTENTS PACKAGE CONTENTS Main Unit & Monitor Operating M anua l AC / DC Adapter AVP Cable Remote Control Car Power Cable AV Cables Two Headrest mounts Carrying bag NOTES:Actual products' appearance might vary slightly from the pictures shown. MOBILE ENTERTAINMENT PDF 文件使用...
  • Page 12: Parts And Contents

    FRONT SIDE Disc compartent cover TFT Screen LEFT SIDE EARPHONE jack For connecting a stereo earphone or an amplifier. USB port Support USB 1.0 use. DC OUT jack (12V DC output. Note: This DC out port can connect to products from our company only. Otherwise it might cause bad performance.
  • Page 13: Parts And Controls

    TOP PANEL BUTTON DEFINITION Volume UP/ down button Press Press PREV/NEXT button Press Press OPEN Press it to open the disk cover. PLAY / PAUSE button Press it to play. When pressing during playback, pause mode is set. Press again to resume playback.
  • Page 14: Main Unit Rear Side

    PARTS AND CONTROLS MAIN UNIT REAR SIDE HOW TO STAND MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 15: Remote Control

    PARTS AND CONTROLS REMOTE CONTROL MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 16: Key Description Of Remote Control

    KEY DESCRIPTION OF REMOTE CONTROL Press this button to display setup screen when at stop status. MODE It is the shortcut key for AV IN founction Confirm and enter the selected item PDF 文件使用 "pdfFactory Pro" 试用版本创建 PARTS AND CONTROLS MOBILE ENTERTAINMENT www.fineprint.cn...
  • Page 17: Notes On Using The Remote Control Unit

    NOTES ON USING THE REMOTE CONTROL UNIT REPLACING THE BATTERY MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 PARTS AND CONTROLS Vol - Press it to decrease the volume Vol + Press it to increase the volume NOTE: To preve nt leaka ge of flu id from t he lithium battery, r emove th e batter y when no t using t he remo te contro l unit for l ong peri ods of tim e (one...
  • Page 18: Fitting Tea Dres T Mo Unt

    2. Adjust to your deserved viewing angle, then firmly secure the mount by tightening the straps. See diagrams below. FITTING PO RTABLE DV D PLAYER TO HEADREST MO UNT Gentle slide the Portable DVD player headrest mount, until you hear the click sound. See diagram below. PDF 文件使用 "pdfFactory Pro" 试用版本创建...
  • Page 19: Audio/Video Connections

    AUDIO/VIDEO CONNECTIONS CONNECTING THE PLAYER TO A TV SET MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 20: Connecting The Adapter To The Dc In 12 V Socket

    CONNECTIONS CONNECTING THE ADAPTER TO THE DC IN 12 V SOCKET USING THE EARPHONE MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 21: Connecting The Player To Other Devices

    CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO A DOLBY DIGITAL/MPEG DECODER OR AN AMPLIFIER WITH BUILT-IN DECODER Wi th this pl ayer, you can enj oy powe rful Dolb y Digita l or MPE G sound . Output the dig ital sign als from the player's digit al output to a dec oder or amplifier with bui lt-in decoder.
  • Page 22: Connecting To A Dolby Digtal Amplifier That Is Not Dolby Digital / Mpeg Compatible

    CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO A DOLBY DIGTAL AMPLIFIER THAT IS NOT DOLBY DIGITAL / MPEG COMPATIBLE Output the digit al signal s from th e player 's digita l output t o a digital amplif ier that is not D oby/MP EG comp atible.
  • Page 23: Connecting To Active Speaker Systems

    CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO ACTIVE SPEAKER SYSTEMS MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 24: Connection Between Players

    AVP CABLE Yellow White (Bl ck) DC OUT Connect the two players with AVP cable as described below: 1. First, connect the AVP cable and the main unit by inserting the DC OUT section of the cable to the DC OUT socket of the main unit. 2.
  • Page 25: Movie Share Operation

    CONNECTION BETWEEN PLAYERS MOVIE SHARE OPERATION WHEN SHARING A SAME MOVIE: Main unit Monitor 1. Connect the two players with AVP cable first, and then plug the car power cable to DC IN socket of the main unit. 2. Turn on the two players. 3.
  • Page 26: Basic Operations

    TURNING ON THE POWER TURNING OFF THE POWER When the power is on, press and hold on the Power ON / OFF button for 1.5S to turn off the player. PDF 文件使用 "pdfFactory Pro" 试用版本创建 BASIC OPERATIONS Connect the AC/DC adapter to socket.
  • Page 27: Loading

    LOADING MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 BASIC OPERATIONS Open TFT cover first, then press OPEN button to open the disc cover. OPEN button www.fineprint.cn...
  • Page 28: Playback

    BASIC OPERATIONS PLAYBACK STOP PLAYBACK PAUSE PLAYBACK MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 29: Playing At Fast Speed

    BASIC OPERATIONS PLAYING AT FAST SPEED PLAYBACK IN SLOW MOTION A-B/REPEAT PLAYBACK MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 30: Zoom Function

    ZOOM FUNCTION SEARCHING FOR A SPECIFIC SCENE SELECTING SUBTITLE CHANGING THE ANGLE CHANGING THE AUDIO LANGUAGE PDF 文件使用 "pdfFactory Pro" 试用版本创建 BASIC OPERATIONS www.fineprint.cn MOBILE ENTERTAINMENT...
  • Page 31: Program Playback

    PROGRAM PLAYBACK 1. Insert a disc and then press the PROGRAM button on the remote control. At this time, menu appears as below. 2. Using number buttons to select the title and chapter in your preferred order. 3. Using player starts PROGRAM playback. MOBILE ENTERTAINMENT PDF 文件使用...
  • Page 32: Using The On-Screen Display

    BASIC OPERATIONS USING THE ON-SCREEN DISPLAY PLAYING A MP3 FORMAT DISC AND JPEG CD MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 33: Playing Divx Files

    BASIC OPERATIONS PLAYING DivX FILES by pressing the OPEN button. USING THE USB PORT 1. If the disc is playing, the USB can not be read. 2. The player may not work properly if using USB connecting cable. Suggested not to use it.
  • Page 34: Setup The Player

    GENERAL STEPS OF SETUP PDF 文件使用 "pdfFactory Pro" 试用版本创建 SETUP THE PLAYER SYSTEM SETUP TV SYSTEM TV TYPE SCREEN FORMAT TV SCREEN PASSWORD RATING DEFAULT EXIT SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP www.fineprint.cn MOBILE ENTERTAINMENT...
  • Page 35: System Setup

    The system setup options are illustrated below: TV SYSTEM If you want to connect the player to a TV, please choose a correct TV system first. AUTO: Choose this setting if your DVD player is connected to a multi-system TV. NTSC: Choose this setting if your DVD player is connected to a NTSC TV.
  • Page 36: Tv Type

    TV TYPE 16:9 (Wide Screen): Choose this setting if your DVD player is connected to a wide screen TV. If you choose this setting and you don’t have a wide screen TV, the images on the screen may appear distorted due to vertical compression. 4:3 LB (Letter Box): Choose this setting if your DVD player is connected to a normal ratio TV.
  • Page 37: Default 3

    SCREEN FORMAT 16:9: Choose this setting to change TFT MODE to 16:9. 4:3: Choose this setting to change TFT MODE to 4:3. The default setting is 16:9. TV SCREEN NORMAL: Choose this setting to have obverse display. ROTATE 180 C: Choose this setting to have reverse display. The default setting is NORMAL.
  • Page 38: System Setup

    PASSWORD Step1: for first time use: enter 0000 as password or assigned password to unlock. Step2: once parental control is unlock, go to rating meun and assign rating. Step3: enter new password of your choose in 4 digit number to lock player rating. If you forget your assigned password, you can use 0000 to unlock the rating again.
  • Page 39: Default

    SYSTEM SETUP DEFAULT SYSTEM SETUP TV SYSTEM TV TYPE SCREEN FORMAT TV SCREEN PASSWORD RATING RESTORE DEFAULT EXIT SETUP MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 40: Language Setup

    OSD LANGUAGE AUDIO LANG. Highlight the AUDIO LANG. option, and press the Arrow buttons to choose the audio language you prefer. Press language available, it will output audio in that language. There are 8 optional audio languages: Chinese, English, Japanese, French, Spanish, Portuguese, Italian PDF 文件使用...
  • Page 41: Subtitle Lang

    SUBTITLE LANG. MENU LANG. If your preferred language isn’t available, the disc’s default language will be played. The default language of your DVD player is English. MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 LANGUAGE SETUP LANGUAGE SETUP OSD LANGUAGE CHINESE AUDIO LANG.
  • Page 42: Audio Setup

    AUDIO OUT IR HEADPHONE Highlight the IR HEADPHONE item and use the arrow buttons to choose the following options: ON, OFF. When the IR headphone is ON, the IR indicators around the right of TFT will be lighted and become red. The default setting is OFF.
  • Page 43: Fm Transmitt

    FM TRANSMITTER 1. Press direction buttons to enter MHZ item. The prompting message “PLEASE PRESS ENTER TO INPUT FM” will appear at the bottom of the screen. 2. Press OK button. The prompting message will be changed to “PLEASE INPUT FM 87.6-107.9”...
  • Page 44: Sat Uration 4

    BRIGHTNESS CONTRAST PDF 文件使用 "pdfFactory Pro" 试用版本创建 VIDEO SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP www.fineprint.cn MOBILE ENTERTAINMENT...
  • Page 45: Hue

    SATURATION MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 VIDEO SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP www.fineprint.cn...
  • Page 46: Sound Effect

    SOUND EFFECT here are two sound output effect modes: NORMAL and SURROUND. You can choose SURROUND to enhance the output sound effect. DYNAMIC RANGE Choose this setting to adjust the line out compressing ratio and get different effects. If adjusting to FULL, the audio signal peak value will be compressed to be minimum; while adjusting to OFF, to be maximum.
  • Page 47: Digital Setup

    DivX(R) VOD The registration code will be changed each time you use it to download the DivX files. You have to use new code to carry out downloading operation next time. MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 DIGITAL SETUP DIGITAL SETUP SOUND EFFECT DYNAMIC RANGE...
  • Page 48: Size And Parameter

    OTHERS SIZE AND PARAMETER Tablet DVD player 262X170X44.1mm (Main Unit) 262X170X33mm (Monitor) 1381g MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 49: Trouble Shooting

    OTHERS TROUBLE SHOOTING MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
  • Page 50 SDV685-AM-ENG-NB-A0 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
