7AI//M-PS2
p o w e r e d s u b w o o f e r s
m a n u a l
P S - 1 2
B P S - 1 5 0 i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-12 and is the answer not in the manual?

Questions and answers

john
February 23, 2025

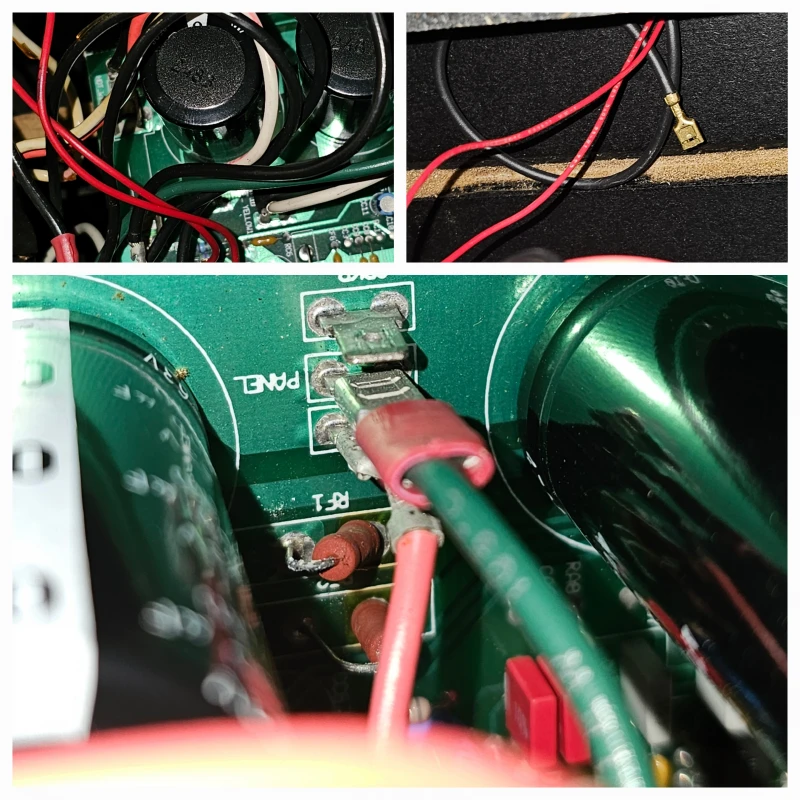

I'm not getting any power to my sub. Mirage PS-12-180: There are 2 small red wires and one black wire coming out of the interior of the subwoofer. I see where the 2 red ones go, but the black one isn't attached to anything. I'm not sure if it became detached or not. The sub has no power, and I'm wondering is it the fuse or the fact that when i opened the sub, I saw that the black wire coming out of the sub along with the 2 red wires wasn't connected to anything. I submitted 3 pictures. (1)one of the 3 wires coming out of the sub, the 2 red wires, and the black one. (2) picture is where the red wires being connected, and (3) a picture of a stem that should have a wire connected to it.

User image 67bb13b3c403c
1 comments:
Mr. Anderson
May 14, 2025

The power issue in the Mirage PS-12 subwoofer could be caused by the black wire not being connected, as this wire is likely part of the power supply circuit. Without it connected, the subwoofer may not receive electrical power, resulting in no power to the unit.

This answer is automatically generated

Summary of Contents for Mirage PS-12

  • Page 1 p o w e r e d s u b w o o f e r s w n e r s m a n u a l P S - 1 2 B P S - 1 5 0 i PRINTED IN CANADA 7AI//M-PS2...
  • Page 2: Safety Instructions

    o w n e r s m a n u a l P S - 1 2 / B P S - 1 5 0 i IMPOR TANT SAFETY INSTRUCTIONS • Read Instructions - All safety and operating instructions should be read before the product is operated.
  • Page 3 P S - 1 2 / B P S - 1 5 0 i o w n e r s m a n u a l • Pow er Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them,paying particular attention to cords at plugs,convenience receptacles,and the point where they exit from the product.
  • Page 4: Table Of Contents

    o w n e r s m a n u a l P S - 1 2 / B P S - 1 5 0 i TABLE OF CONTENTS Safety Instructions ..........1 Introduction .
  • Page 5: Features & Operating Controls

    P S - 1 2 / B P S - 1 5 0 i o w n e r s m a n u a l FEATURES AND OPERATING CONTROLS All operating controls are conveniently located on the amplifier panel mounted on the rear of your subwoofer cabinet.
  • Page 6: Room Acoustics & Subwoofer Placement

    o w n e r s m a n u a l P S - 1 2 / B P S - 1 5 0 i OPERATING CONTROLS Subwoofer Le vel Control This rotary control adjusts the output level of your Mirage subwoofer and should be used to balance the level of the subwoofer with that on your main/satellite speakers.
  • Page 7: Subwoofer Connection To Your Audio/Video System

    P S - 1 2 / B P S - 1 5 0 i o w n e r s m a n u a l The interaction between room acoustics and any subwoofer is closely related to the subwoofer’s proximity to the walls. Typically, subwoofer placement directly in or close to a corner will produce the most bass output,placement along one wall but away from a corner will produce less bass output,and placement of the subwoofer further into the room will produce the least amount of bass output.It should also be realized that the...
  • Page 8: Using The "Subwoofer Output" Of An A/V Receiver Or Processor (Diag.2)

    o w n e r s m a n u a l P S - 1 2 / B P S - 1 5 0 i Using High Le vel Connections (see Diagram 1) On the rear of your subwoofer cabinet is a block designated “HIGH LEVEL”. This block contains four pairs of speaker terminals;...
  • Page 9: Using High Level Connection (Diag.1)

    P S - 1 2 / B P S - 1 5 0 i o w n e r s m a n u a l Diagram 1: HIGH LEVEL CONNECTION TO LEFT TO RIGHT – – SPEAKER SPEAKER TO AMPLIFIER SPEAKER OUTPUT TERMINALS –...
  • Page 10: Using External Crossover (Diag. 3)

    o w n e r s m a n u a l P S - 1 2 / B P S - 1 5 0 i Diagram 3: LOW LEVEL CONNECTION 2 TO SUBWOOFER OUTPUT OF CROSSOVER INTERCONNECT CABLE Diagram 4: LOW LEVEL CONNECTION 3 TO RIGHT MAIN - IN...
  • Page 11: Set-Up Calibration

    P S - 1 2 / B P S - 1 5 0 i o w n e r s m a n u a l SET UP AND CALIBRATION For best results when setting up your system,assume your normal listening position and have another person perform the following adjustments: Since each room and placement is different,the trial and error method described below is the best way of calibrating your subwoofer with the rest of your system.The best...
  • Page 12: Specifications

    o w n e r s m a n u a l P S - 1 2 / B P S - 1 5 0 i SPECIFICATIONS PS-12 BPS-150i Type: Discrete MOSFET Discrete MOSFET Class A/B Class A/B Pow er Output: 150 watts 150 watts 600 watts Peak...
  • Page 13: Warranty

    P S - 1 2 / B P S - 1 5 0 i o w n e r s m a n u a l LIMITED WARRANTY POLICY Warranty in the United States and Canada Mirage warrants this product to the retail purchaser against any failure resulting from original manufacturing defects in workmanship or materials.The warranty is in effect for a period of one (1) year from date of purchase from an authorized Mirage dealer and is valid only if the original dated bill of sale is presented when service is required.
