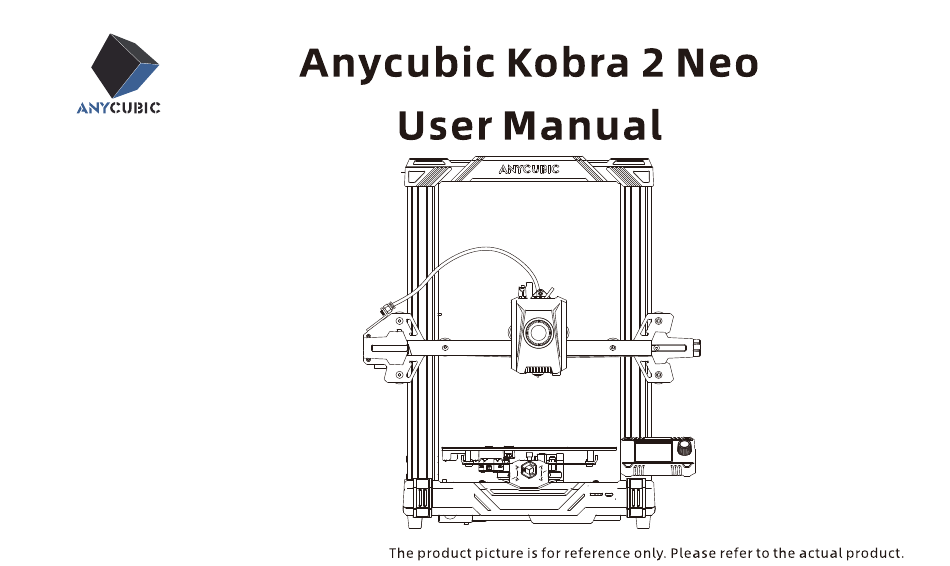

- Page 1 Anycubic Kobra 2 Neo User Manual ANYCUBOC The product picture is for reference only. Please refer to the actual product.
- Page 2 Product Overview ANYCUIBIC Lead Screw Filament tube X axis tepper -axis belt tensioner Print head Build platform Filament holder TF card slot Type-c interface Screen Y-axis stepper Z-axis stepper Y axis belt tensioner...
- Page 3 Packing List The following pictures are for reference only. Please refer to the actual object. M4*16 M5*25 M5*45 M3*6 (2pcs) (4pcs) (2pcs) (2pcs) power cord Memory Card Card reader Spare nozzle Cable fixing clip Wrench 4.0/3.0/2.5/ 2.0/1.5 Nozzle Cleaner Filament (1 pcs) (3pcs) (1 pcs)
- Page 4 Machine Installation Install frame The TF card of the machine comes with an instruction video. I.Remove cable ties from frame. 2. Turn the coupler to raise the X axis. Cable Coupler Back Back...
- Page 5 Install frame ANYCUBIC PEI Sheet M5*25 (2pcs) M5*45 (2pcs) • Note: Please install PEI sheet. Front M5*45 (1 pcs) M5*25 (2pcs) M5*45 (1 pcs)
- Page 6 Install print head AYTtntc M3*6 (4pcs) Back Front...
- Page 7 O Install screen ANYCUBDC Plug in the screen cable after installation.
- Page 8 @Install filamentholder...
- Page 9 Insert Filament Tube Filament Tube Insert filament tube in the direction indicated in the diagram. ANYCUBOC...
- Page 10 O Wiring AWCUBOC ..Print head X-axis limit switch X-axis stepper Z-axis stepper...
- Page 11 O Wiring Step 1:Secure the cables and filament tube at the indicated ANYCUBIC Step 2: Secure the cables at the indicated position using zip ties.
- Page 12 Check Before I.Pulley elastic adjustment Check if the print head is shaking. If it is, adjust the hexagonal isolation column located underneath the print head until it slides smoothly and without shaking. •o Print head Check if the print bed is shaking. If it is, adjust the hexagonal isolation...
- Page 13 2.Belts Please manually move the print head and print platform. If there is any difficulty or abnormal noise during the movement, adjust the tensioner to ensure smooth sliding of the print head or platform. axrcueoc -axis belt tensioner Y-axis belt tensioner Tighten Loosen...
- Page 14 Screen Interface Overview Home Checkbox Preheat Home Page Nozzle Temp Dark Theme Designed 1200C File Dark Theme Designed Blanted - Hero Dark Theme Designed Blanted - Hero Home Page 250/260 60/110 Motor-Off Rotate left/Rotate right:select Move Axis 0.15 Filament Enter Auto Level Module...
- Page 15 Leveling In the settings page, select [Auto level] and wait for the machine to complete the leveling process. Home Page 25/200 25/60 Motor-Off Preheating Auto Level? Move Axis Wiping Nozzle Filament 250/260 60/110 Probe Auto Level Module Calibration 100% 0.15 More Settings Note.
- Page 16 Loading Filament I.Put the filament onto the spool holder. 2.1nsert the filament into the extruder until you feel some resistance. While doing so, press and hold the button on top of the extruder. 3.1n the settings page, select [Filament] - [Extrude], and wait for the nozzle to heat up to the preset temperature.
- Page 17 4.Wait filament to extrude from nozzle. 5.Select [Stop] to end the filament loading process. 6.Clean melted filament off the nozzle. Extruding..f filament feeding is not smooth stop & Back . consistent, please adjust the extrusion' • force of the extruder.
- Page 18 Start printing I)lnsertthe TF card into the printer's card slot. TF Card slot 2) Select the corresponding model and start printing. Home Page Blanted Dark Theme Designed 15:10 Start Print? Dark Theme Designed 250/260 60/110 25/0 25/0 Blanted - Hero Dark Theme Designed 0.15 100%...
- Page 19 Model Resume Function Description Power Loss Resume: In the event of a sudden power outage or accidentally turning off the machine, this function does not require manual setup. Simply reconnect the power and turn on the machine. You can then resume the print. : The PEI platform adheres better when heated.
- Page 20 Troubleshooting Guide Module Calibration If there is a leveling anomaly, please follow the steps below to check: Abnormal 1 )After powering off, check the wiring of the leveling calibration module to ensure it is connected properly. Then, restart the machine. 2)Select [Module Calibration]...
- Page 21 Troubleshooting Guide X/ Y/ Z axis motor not moving or making abnormal noise: O Check if the motor wires loose recheck connections. O The corresponding limit switch may not be triggering properly. Check if there is any interference with the axis movement and ensure that limit switch...
- Page 22 Name:APEX CE SPECIALISTS Name:Apex CE Specialists GmbH Add:89 Princess Street,Manchester, MI 4HT,UK Add:Habichtweg 1 41468 Neuss Germany Contact:Wells Contact:WellS Tel:+441616371080 Tel:+353212066339 E-Mail:info@apex-ce.com ce.com RoHS O M02030344...
