PARTS AND SERVICE MANUAL
FOR
DIMPLEX 23" OUTDOOR
ELECTRIC FIREPLACE
Model DFO2307

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFO2307 and is the answer not in the manual?

Questions and answers

Related Manuals for Dimplex DFO2307

Summary of Contents for Dimplex DFO2307

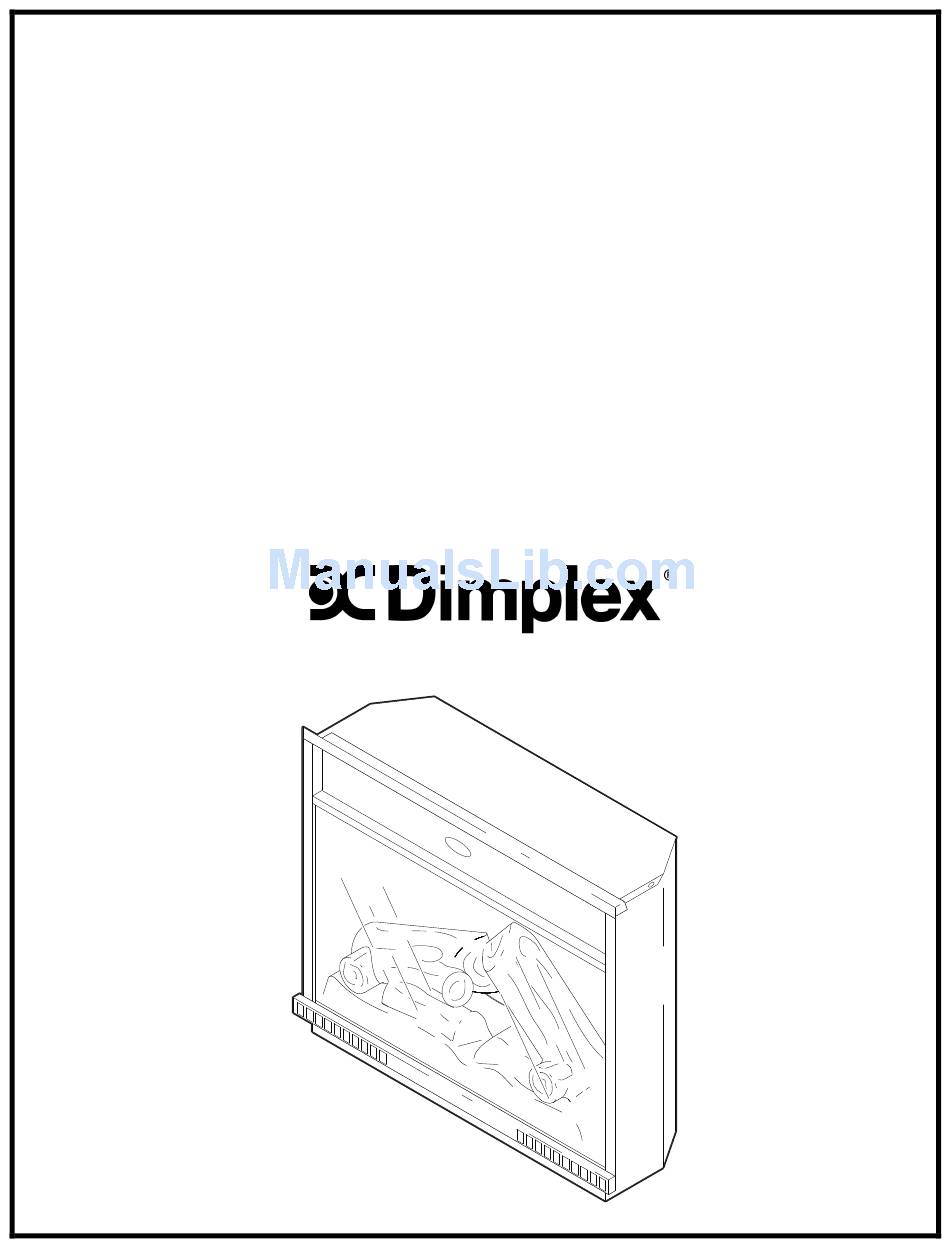

  • Page 1 PARTS AND SERVICE MANUAL DIMPLEX 23” OUTDOOR ELECTRIC FIREPLACE Model DFO2307...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OPERATION PARTS DRAWING PARTS LIST WIRING DIAGRAM FRONT GLASS REMOVAL UPPER LIGHT REPLACEMENT LOWER LIGHT REPLACEMENT MAIN ON/OFF REPLACEMENT FLAME ROD AND MOTOR REPLACEMENT CIRCUIT BOARD REPLACEMENT PAGE 2 PAGE 3 PAGE 4 PAGE 5 PAGE 6 PAGE 7 PAGE 8 PAGE 9...

  • Page 3: Operation

    DFO2307 OPERATION ELECTRIC FIREPLACE MANUAL CONTROL The manual controls for the firebox are located in the upper right hand corner behind the access panel. To access the controls, open the upper access panel by pulling forward and down. To locate controls refer to Figure 3.

  • Page 5: Replacement Parts

    DFO2307 REPLACEMENT PARTS FIREBOX, 23” – Dimplex CATALOGUE NO. PART NO. REPLACEMENT PART 1. MOTOR, ASSEMBLY 2. LED LIGHT, 1 WATT 3. ON/OFF SWITCH 4. CIRCUIT BOARD 5. MIRROR 6. GLASS FRONT 7. LED LIGHT, BOTTOM 8. TRANSFORMER 9. FLAME ROD 10.

  • Page 6: Wiring Diagram

    WIRING DIAGRAM...

  • Page 7: Front Glass Removal

    DFO2307 Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. FRONT GLASS REMOVAL 1. Remove top from mantel. 2. Lift firebox out of mantel. 3. Lay firebox on it’s back.

  • Page 8: Upper Light Replacement

    DFO2307 Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. It is a good idea to replace all of the lights at one time if they are close to the end of their rated life.

  • Page 9: Lower Light Replacement

    DFO2307 Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. Lights need to be replaced when you notice a dark section of the flame. There are three lights under the log set which generate the flames and embers located under the emberbed.

  • Page 10: Main On/Off Replacement

    DFO2307 Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. MAIN ON/OFF SWITCH REPLACEMENT 1. Remove the front glass as shown on page 6 of this manual. 2. Remove the top trim piece by removing the 3 retaining screws.

  • Page 11: Flame Rod And Motor Replacement

    DFO2307 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 12: To Replace The Circuit Board

    DFO2307 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.
