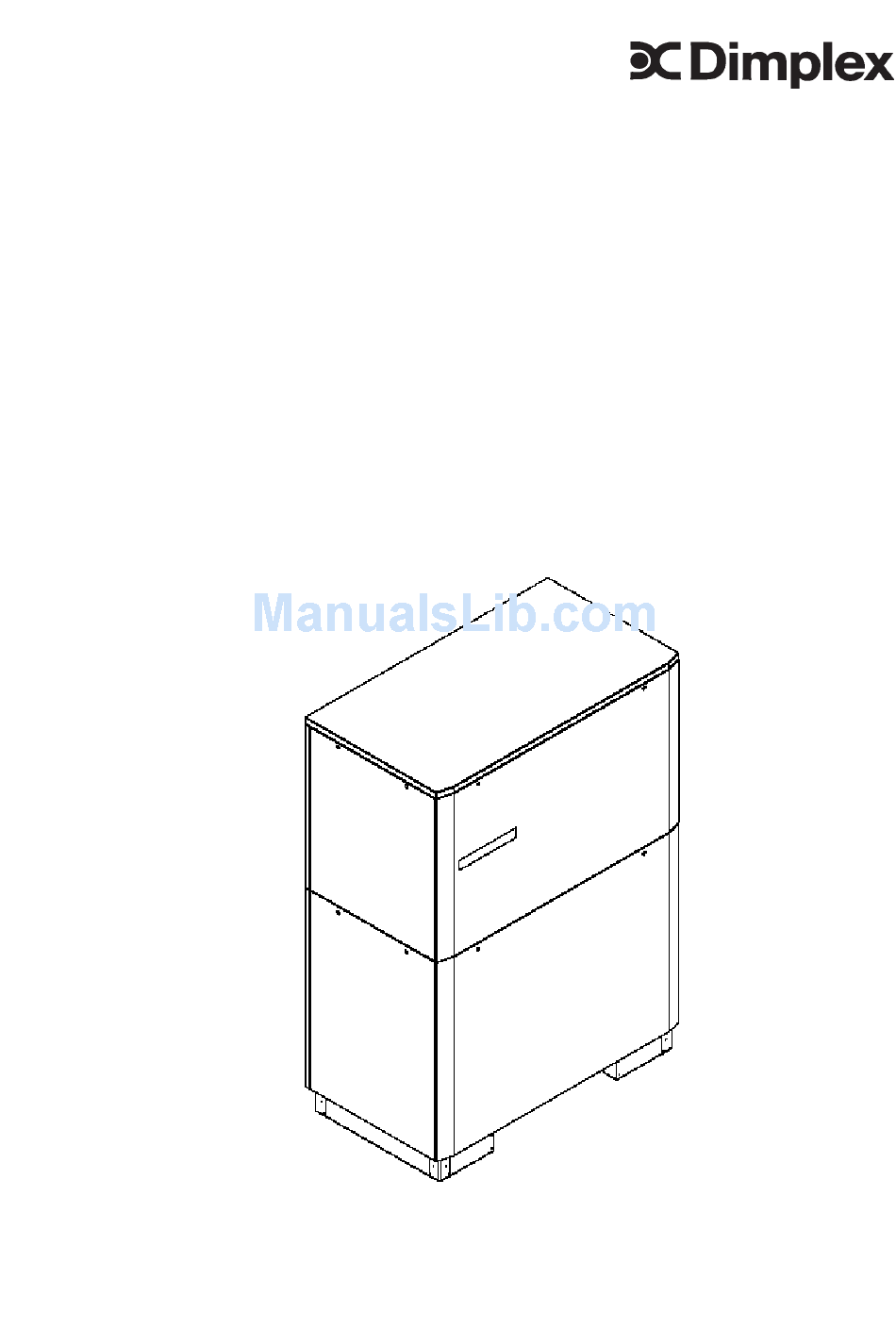

    INSTALLATION and OPERATING INSTRUCTIONS Brine-to-Water Heat Pump for Indoor Installation SI 50ZS / SI 75ZS / SI 100ZS Order No.: 452234.67.01 FD 8511...
  • Page 2: Table Of Contents

    CONTENTS READ IMMEDIATELY Important Information Legal Provisions and Guidelines Energy-Efficient Use of the Heat Pump PURPOSE OF HEAT PUMP Application Principle of Operation SCOPE OF DELIVERY Baseline Unit ACCESSORIES Connecting Flanges TRANSPORT INSTALLATION General Information Sound Emissions MOUNTING General Information...
  • Page 3: Read Immediately

    Flush the heating system prior to connecting the heat pump. CAUTION! The supplied strainer is to be fitted in the heat source inlet of the heat pump to protect the evaporator against contamination. CAUTION! The brine solution must consist of at...
  • Page 4: Purpose Of Heat Pump

    A circulating pump then conveys the warmed brine to the evaporator of the heat pump. There, the heat is given off to the refrigerant in the refrigeration cycle. When so doing, the brine cools so that it can again take up heat energy in the brine circuit.
  • Page 5: Accessories

    In this case, the transport securing device is not imperative. 45° CAUTION! The heat pump must not be tilted ° more than max. 45 (in either direction). After the transport, the transport securing device is to be removed on either side at the bottom of the unit.
  • Page 6: Installation Mounting

    Provided the controller and heating circulating pumps are ready for operation, the frost protection feature of the controller is active. If the heat pump is taken out of service or in the event of a power failure, the system has to be drained. In heat pump...
  • Page 7: Connection On Heat Source Side

    CAUTION! The supplied strainer must be fitted in the heat source inlet of the heat pump in order to protect the evaporator against the ingress of impurities. In addition, a powerful vent must be installed at the highest point of the heat source system.
  • Page 8: Commissioning

    8.3 Commissioning Procedure The start-up of the heat pump is effected via the heat pump controller. CAUTION! Commissioning is to be effected in accordance with the installation and operating manual of the heat pump controller.
  • Page 9: Care/Cleaning

    9.3 Cleaning of Heat Source Side CAUTION! The supplied strainer is to be install- ed in the heat source inlet of the heat pump in order to protect the evaporator against conta- mination. The filter screen of the strainer should be cleaned one day after commissioning, thereafter every week.
  • Page 10: Malfunctions/ Troubleshooting

    TROUBLESHOOTING 10.1 Correction of Minor Malfunctions by Owner This heat pump is a quality product and designed for trouble- and maintenance-free operation. In the event that a malfunction occurs nevertheless, you will be able to correct the problem yourself in most of the cases.
  • Page 11: Appendix

    APPENDIX 12.1 Dimensioned Drawings 12.1.1 Dimensioned Drawing SI 50ZS 12 12.1.2 Dimensioned Drawing SI 75ZS 13 12.1.3 Dimensioned Drawing SI 100ZS 14 12.2 Equipment Data 12.3 Diagrams 12.3.1 Characteristic Curves SI 50ZS 12.3.2 Characteristic Curves SI 75ZS 12.3.3 Characteristic Curves SI 100ZS 18 12.4...
  • Page 12: Appendix 11

    APPENDIX: 12.1 DIMENSIONED DRAWINGS 12.1.1 Dimensioned Drawing SI 50ZS...
  • Page 13: Dimensioned Drawing Si 75Zs

    APPENDIX: 12.1 DIMENSIONED DRAWINGS 12.1.2 Dimensioned Drawing SI 75ZS...
  • Page 14: Dimensioned Drawing Si 100Zs

    APPENDIX: 12.1 DIMENSIONED DRAWINGS 12.2.3 Dimensioned Drawing SI 100ZS...
  • Page 15: Equipment Data

    Abbreviations have the following meaning, e.g. B10 / W55: heat source temperature 10 °C and heating water supply temperature 55 °C. The heating circulating pump and the controller of the heat pump must be on standby at all times.
  • Page 16: Diagrams

    APPENDIX: 12.3 DIAGRAMS 12.3.1 Characteristic Curves SI 50ZS Heating capacity in [kW] 2-compressor mode 1-compressor mode Power consumption (incl. power input to pump) Brine inlet temperature in [°C] Coefficient of performance (incl. power input to pump) Brine inlet temperature in [°C] Conditions: Heating water flow rate Brine flow rate...
  • Page 17: Characteristic Curves Si 75Zs

    12.3.2 Characteristic Curves SI 75ZS Heating capacity in [kW] 2-compressor mode 1-compressor mode Power consumption (incl. power input to pump) Brine inlet temperature in [°C] Coefficient of performance (incl. power input to pump) Brine inlet temperature in [°C] Conditions: Heating water flow rate Brine flow rate 30000 25000...
  • Page 18: Characteristic Curves Si 100Zs

    APPENDIX: 12.3 DIAGRAMS 12.3.3 Characteristic Curves SI 100ZS Heating capacity in [kW] 2-compressor mode 1-compressor mode Power consumption (incl. power input to pump) Brine inlet temperature in [°C] Coefficient of performance (incl. power input to pump) Brine inlet temperature in [°C]...
  • Page 19: Wiring Diagrams

    APPENDIX: 12.4 WIRING DIAGRAMS 12.4.1 Control...
  • Page 20: Load

    APPENDIX: 12.4 WIRING DIAGRAMS 12.4.2 Load...
  • Page 21: Terminal Diagram

    APPENDIX: 12.4 WIRING DIAGRAMS 12.4.3 Terminal Diagram...
  • Page 22: Legend

    Hot water circulating pump M19* Swimming pool circulating pump M21* Mixer, principal circuit M22* Mixer, heating circuit 2 Heat pump controller Starting current limiter, compr. 1 Starting current limiter, compr. 2 N10* Remote control station N11* Relay module External sensor...
  • Page 23: Hydraulic Block Diagram

    APPENDIX: 12.5 HYDRAULIC BLOCK DIAGRAM Hydraulic Block Diagram (Example)
  • Page 24: Ec Declaration Of Conformity

    APPENDIX: 12.6 EC DECLARATION OF CONFORMITY EC Declaration of Conformity EC Declaration of Conformity The undersigned Glen Dimplex Deutschland GmbH Division Dimplex Am Goldenen Feld 18 D-95326 Kulmbach / Allemagne hereby confirm that the design and construction of the product(s) listed below, in the version(s) placed on the market by us, conform to the relevant requirements of the applicable EC directives.
  • Page 25: Warranty Certificate
