Field Controls 46261800 Replacement Instructions

TURBO-MIST TURBINE REPLACEMENT INSTRUCTIONS

1. CLOSE SADDLE VALVE COMPLETELY.

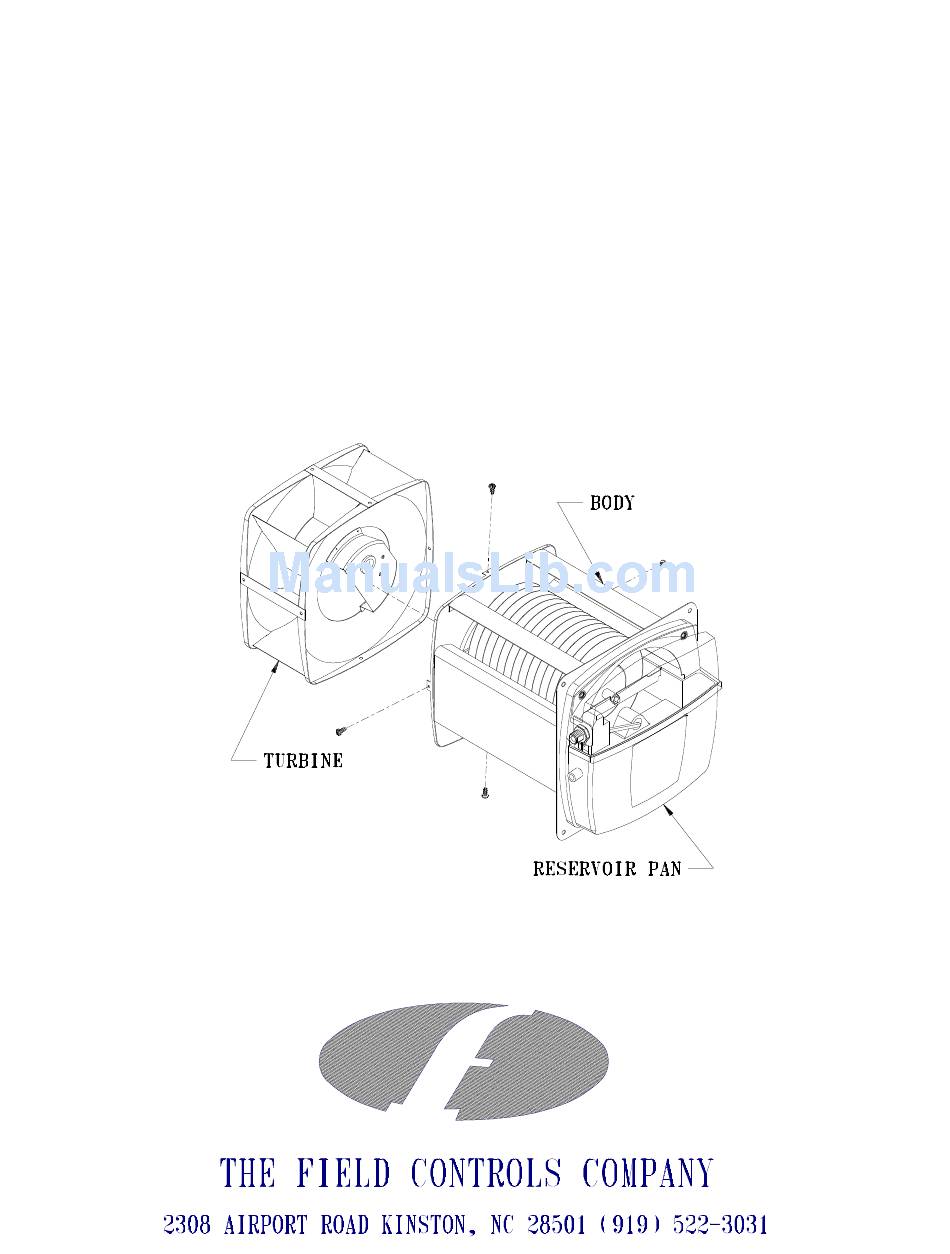

2. REMOVE TURBO-MIST FROM PLENUM.
3. DRAIN WATER FROM RESERVOIR PAN.
4. REMOVE SCREWS WHICH SECURE TURBINE TO TURBO-MIST.
5. GENTLY PULL TURBINE AWAY FROM TURBO-MIST.
6. REPLACE WITH NEW TURBINE. MAKE SURE THAT THE EVAPORATOR SHAFT IS
PROPERLY ENGAGED WITH THE TURBINE DRIVE GEAR. *
7. INSERT SCREWS TO SECURE TURBINE TO THE TURBO-MIST BODY.
8. RE-INSTALL TURBO-MIST INTO THE PLENUM.
9. OPEN SADDLE VALVE COMPLETELY.
* SPIN THE TURBINE BY BLOWING INTO IT TO VERIFY THAT THE EVAPORATOR ROTATES
WHEN THE TURBINE ROTATES.
P/N 4626180
