INSTALLATION
1. Install in the door frame between the rooms where the temperature or air moving imbalance
exists. Select the corner of the door frame which is closest to an electrical outlet.
2. Using two wood screws, mount the mounting bracket on the door frame 1" from corner. The center
of the screw holes should be at least 2" away from the door when it is closed (See Fig.1).
3. Point the fan blade side of the unit in the direction of desired air flow. Mount the fan by sliding the
fan body onto the mounting bracket. Slide it over until both fan feet are located on mounting
bracket (See Fig.1).
4. Use the cord clips to secure the power cord along the wall (See Fig. 2).

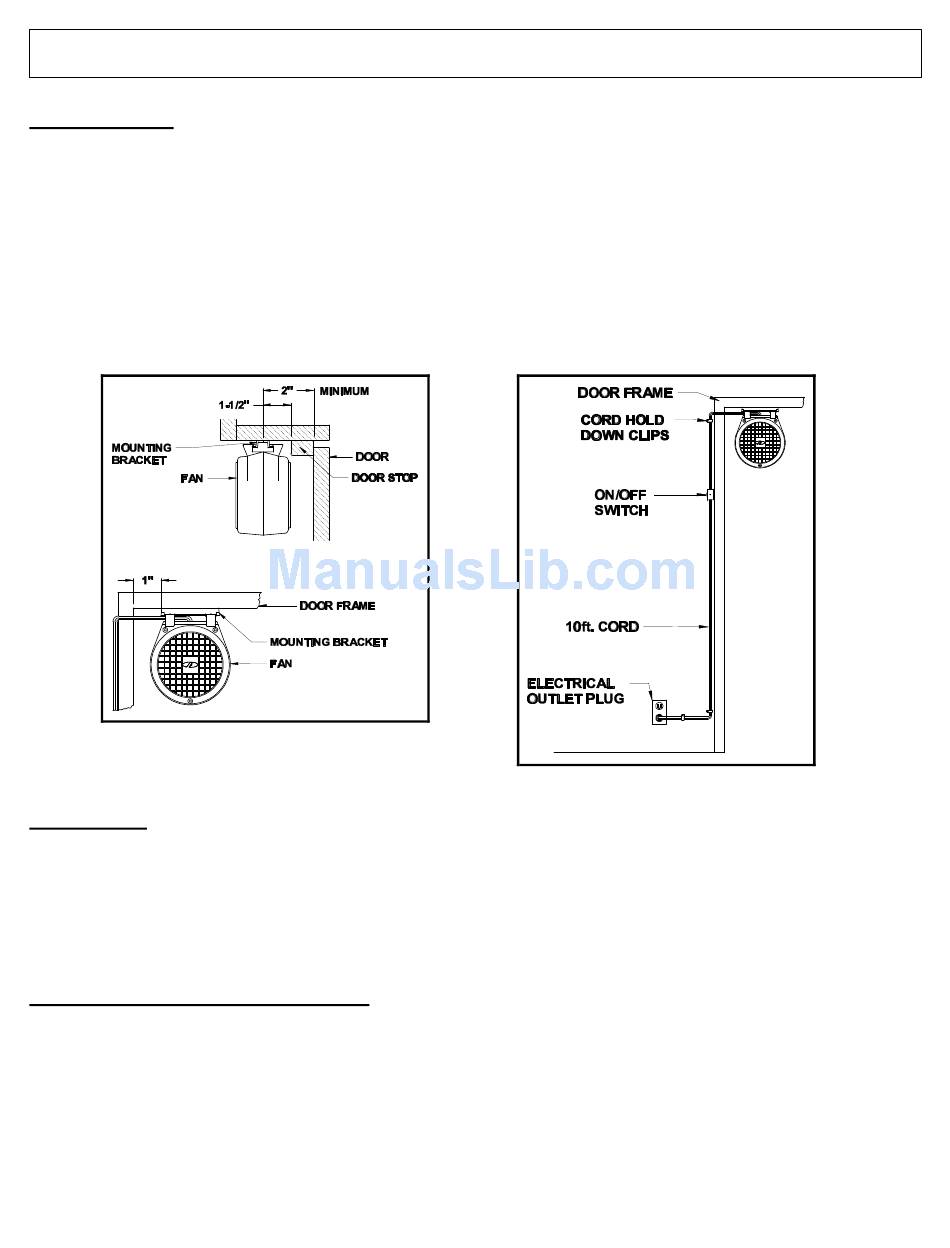

Figure 1

OPERATION

Position the fan so the air flows from the warmer room to the cooler room. The motor is turned on and
off by rotating the on/off switch on the power cord. To change air flow direction, lift the fan and slide
the fan off the mounting bracket. Rotate the fan and slide it back onto the mounting bracket.
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state
speed control device.

IMPORTANT SAFETY INSTUCTIONS

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of
electrical shock, this pug is intended to fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt
to defeat this safety feature.

Installation Instructions

Page 2
Figure 2
