Managed Stackable Layer 3 Switches GSM7328S and GSM7352S Hardware Installation Guide

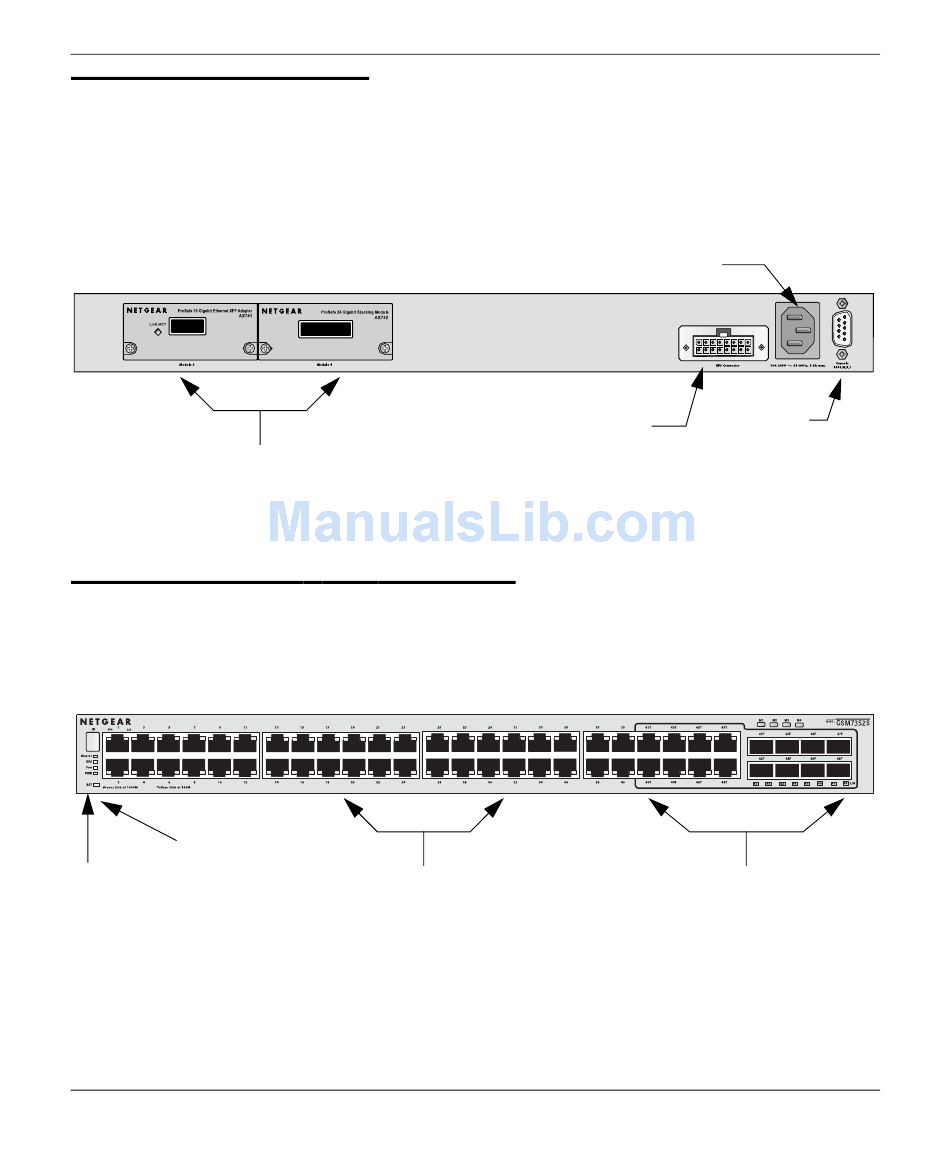

GSM7328S Rear Panel

The rear panel has two module bays, a console port, redundant power supply
connector, and a standard AC power receptacle for the supplied power cord. The
module bays support any combination of either the ProSafe 10-Gigabit Ethernet
XFP Adapter (AX741) or the ProSafe 24-Gigabit Stackable Module (AX742).
Stacking/XFP
module bays
Figure 2-2

GSM7352S Front Panel and LEDs

The figure below shows the front panel of the GSM7352S. The front panel
contains LEDs, a RST (reset) button, RJ-45 jacks, and copper/fiber combo ports.
1
RST
(reset button)
LEDs
Figure 2-3
2-4
Redundant
power supply
connector
RJ-45 jacks
v1.0, March 2006
Power receptacle
Console
Copper/fiber
combo ports
Introduction
