The module bays support any combination of either the ProSafe 24-Gigabit
Stackable Module (AX742) or the ProSafe 10-Gigabit Ethernet XFP Adapter
(AX741). See "High-Speed I/O Module Bays" in Chapter 3.
1
RJ-45 jacks
LEDs RST
(reset button)

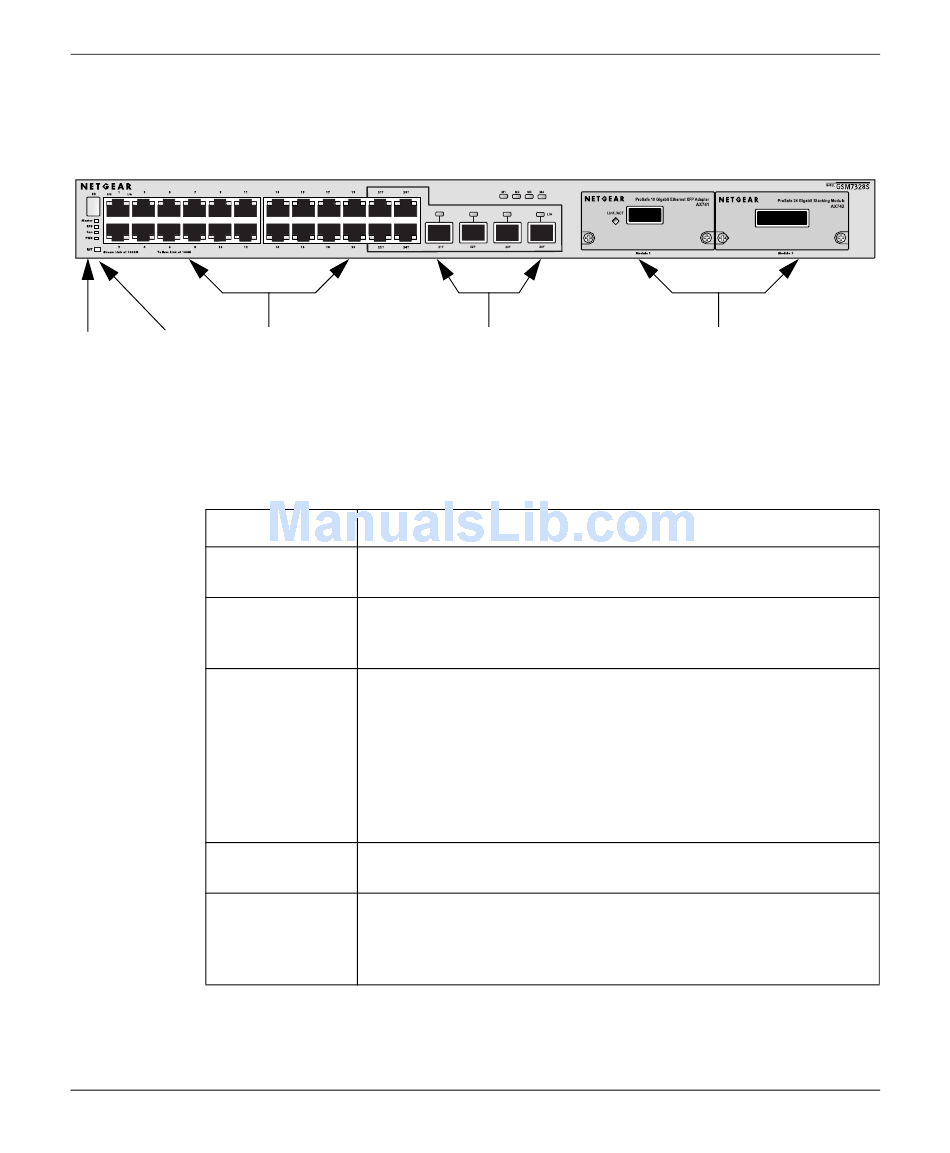

Figure 2-1
The following table describes the LEDs on the front panel of the switch.
Table 2-1. LED Descriptions for GSM7328S
LED
ID
Master
RPS
(redundant power
supply)
Fan
PWR (power)
2-2
Copper/fiber
combo ports
Description
This is the stack member ID (1–8) that the software assigns to the
switch.
• Green: Switch acts as a master unit in a stack of GSM7300S
series switches.
• Off: Switch acts as a slave unit in a stack of GSM7300S switches.
• Solid green: The redundant power supply is connected (and using
internal power).
• Solid yellow: The switch internal power has failed or been
disconnected, but the redundant power supply is providing power
to the switch.
• Blinking yellow: The redundant power supply unit is present, but
the power has failed.
• Off: The redundant power supply is disconnected or not present.
• Red: Fan has failed.
• Off: Fan operating normally.
• Solid green: Power is supplied and the switch is working.
• Solid yellow: Power-on Self-Test (POST) is in progress.
• Blinking yellow: POST, CPU, or internal power supply has failed.
• Off: Power is disconnected.
