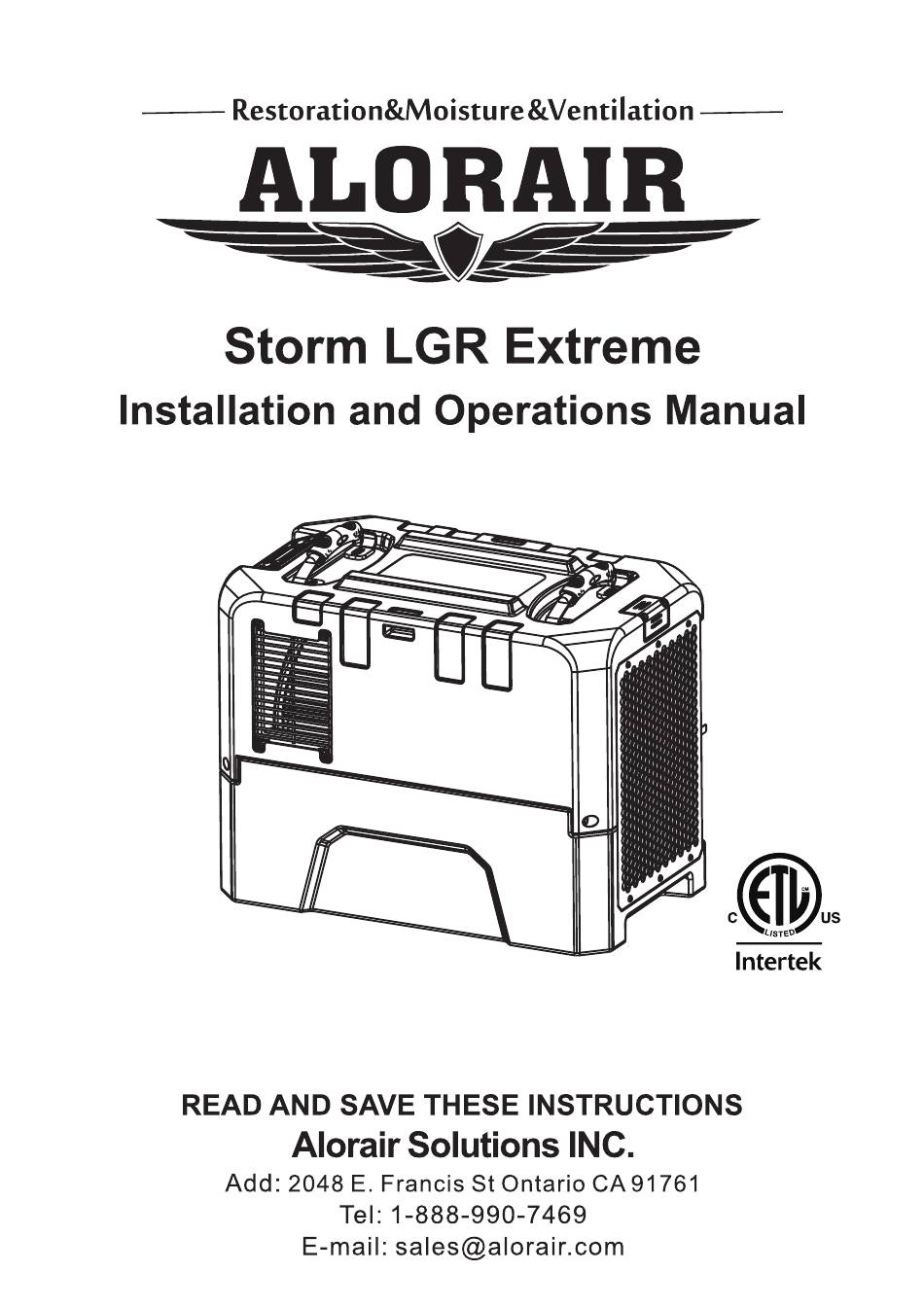

- Page 1 Restoration&Moisture&Ventilation ALORAIR Storm Extreme Installation and Operations Manual LISTEO Intertek READ SAVE THESE INSTRUCTIONS Alorair Solutions INC. Add: 2048 E. Francis St Ontario CA 91761 Tel: 1-888-990-7469 E-mail: sales@alorair.com...
- Page 2 Table of Contents Safety Instructions Identification Electrical Supply Extreme Works Guidelines Parts Diagram Using the Display- Main Screen Using the Display- Submenus Maintenance Instructions Error Codes Troubleshooting Dehumidifier Storage Warranty...
- Page 3 Model Number: Storm Extreme Serial Number: Date Purchase: For additional questions concerning your dehumidifier: • Contact your installing contractor • Contact Alorair Solutions: sales@alorair.com 888-990-7469 Electrical Supply Power Supply: 115V, 60 Hz AC, Single Phase Outlet Requirement:...
- Page 4 Storm Extreme Works The Storm Extreme dehumidifier utilizes its integral humidistat to monitor the conditioned space. Once conditions are outside the desired setpoint, the compresser energizes and air is drawn across an evaporator coil. The evaporator coil is cooler than the dew point of the air so the water vapor will turns into liquid condensation.
- Page 5 DEHUM/D/F/E Parts D iagram TemplRH sensor Handle Airinlet Airoutlet Air Filter Control panel Condensate Drain Line Quick Connect power Socket...
- Page 6 Control Panel Guide Power Button Use this button to turn the dehumidifier on and off. You can also press this button while on a sub-menu if you wish to return to the main screen. Confirm Button This button is used to confirm your selected setting, as well as set the humidity level. Each time you press the button, the humidity level will increase 5% (between 35% and 90%).
- Page 7 DEHUM/D/F/ER 2. Setting Up the Unit • Once the machine has powered on, you will see the following display: a. UNIT ON- means the unit is powered on. b. 00.0HRS- describes any time the machine is running from power on to power off. It includes defrosting time, but does not include the standby time once the set point is reached.
- Page 8 Using the Display Sub-Menus 1. Job hours • This screen allows you to clear the job hours. To clear the hours select ">" This will clear the hours on the main screen, and "RESET" will no longer display on the sub menu.
- Page 9 DEHUM/D/F/ER 5. Humidity Setpoint • This screen is used to select your humidity setpoint. Press the ">" button to set the humidity value between 35% to 90%. Each time you press the button, it will increase 6. Temperature Measurement • This screen can be used to switch the temperature measurement between oc OF.
- Page 10 Maintenance Instructions Before • Check the power cord for signs of damage such as fraying. Replace the cord before use if there is any damage. • Check the filter for signs of dirt or obstructions. Clean or replace the filter as necessary. •...
- Page 11 DEHUM/D/F/ER Error Codes If there is an issue with the dehumidifier, one of the following error codes will appear: • El Error An El error code will appear if the humidity sensor has an error. The unit will not work with an El code, however, you can still use the manual pump button •...
- Page 12 Troubleshooting Symptom Cause Solution Poor Connection Verify that both ends of the power cord are plugged in Display is Blank Power Outage Reset power Clean the filter Filter is Dirty No Airflow Air Inlet or Outlet is Blocked Clear the blockage Humidity Sensor or Check to ensure that...
- Page 13 DEHUM/D/F/ER Limited Warranty This limited warranty starts from the date of purchase. Alorair Solutions Inc. warrants the original purchaser that this ALORAIR product is free from manufacturing defects material or workmanship for the limited warranty period of: Six (6) Month parts and labor.
