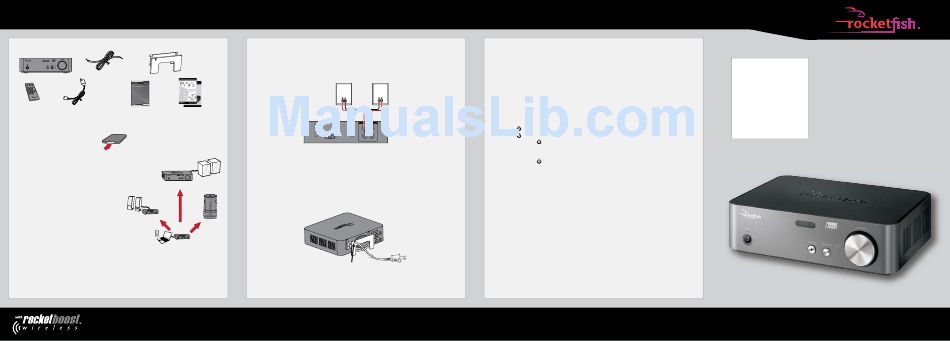

RF-RBREC Wireless Amplified Audio Receiver
Package contents
Cable spool
Speaker cable (2)
3 ft (91.5 cm)
Wireless receiver
Remote
control
AC power cable
User Guide
Quick Setup Guide
Initial setup
1 Unpack the package contents
2 Enable the remote control battery
Remove the tab from the bottom of
the remote control.
Rocketboost technology can connect all audio
devices throughout your home to form a home
audio network. Rocketboost products include
"senders, " which send audio streams, and "receiv-
RF-RBREC
ers, " which receive the audio. This lets you listen to
(receiver)
music from your sender in other rooms, using your
receiver.
The RF-RBREC is a Rocketboost wireless receiver
that includes a built-in audio amplifier. So once you
RF-RBAUX
connect your speakers to the RF-RBREC you can
(receiver)
listen to audio from your Rocketboost senders.
Rocketboost is expandable. Each Rocketboost
receiver can select the audio from any sender in
RF-RBAUX
your Rocketboost audio network. You can set up
(sender)
your network to meet your specific needs. The
illustration on the right shows an example
Rocketboost network.
QUICK SETUP GUIDE
Connecting the speakers to the wireless receiver
• Connect the right speaker to the right speaker-out connectors on the wireless receiver. Use a
red speaker wire to connect the red (+) speaker-out connector and a black speaker wire to
connect the black (-) speaker-out connector. Repeat this step to connect the left speaker.
Right (rear)
speaker
Receiver back
SPEAKER-OUT (4-8 Ohm)
AC IN
R
L
Connecting the wireless receiver to an AC power outlet
• Connect one end of the AC power cord to the AC IN connector on the back of the wireless
receiver.
Then, plug the other end of the AC power cable into an AC power outlet. The Standby indicator
turns on.
RF-RBWS02
(receiver)
Cable notch
Establishing communication
All Rocketboost devices must be "joined" or wirelessly connected to your Rocketboost hub device so
that audio can be sent between them. The following steps describe how to join Rocketboost devices.
For additional information, see the Rocketboost network notes on the right.
1 If you are setting up your network for the first time, choose one of your Rocketboost senders to
be your hub device by setting the Hub Status switch to Enable.
Left (rear)
For example, if you want the RF-RBAUX sender/receiver to be the hub, set the Hub Status
speaker
switch on the sender/receiver to Enable.
The sender/receiver power indicator lights green if the sender/receiver Hub Status switch is
enabled, or lights blue if the sender/receiver Hub Status switch is disabled.
2 If possible, bring your Rocketboost hub device, and the RF-RBREC wireless receiver which you'd
like to join to the hub, into the same room.
3 Press the
on the Rocketboost hub device to turn it on.
4 Press the
on the RF-RBREC wireless receiver to turn it on.
5 Press and hold the
on the Rocketboost hub device for more than three seconds to put it
into joining mode. The power indicator starts blinking rapidly and the unit will stay in joining
mode for 30 seconds.
6 Press and hold the
on the RF-RBREC wireless receiver for more than three seconds to put it
into joining mode.
• When successfully joined, the power indicator LEDs on both products will stop blinking and
stay on.
• If joining fails after 30 seconds, the power indicator LEDs will begin flashing at a slower rate.
If this occurs, repeat the above steps.
• Repeat steps 2-6 for each additional Rocketboost device you are adding to your network.
For additional information, see your User Guide.
Using your wireless receiver
1 Make sure the volume is turned up on the audio device connected to your Rocketboost sender.
2 Play music from the audio device connected to your Rocketboost sender.
3 Adjust the volume level on the wireless receiver.
To AC power
outlet
If you have multiple audio sources in your Rocketboost network, press the Source button on
the wireless receiver to hear the next audio source. Press the Source button again to cycle
through all available audio sources.
Rocketboost network notes:
Every Rocketboost network must contain
one hub device, which helps devices join
the network. The network can have only
one hub, which you can enable using the
hub switch on the back of all Rocketboost
senders and sender/receivers. If this is your
first Rocketboost product, you should
make this device the hub, if you already
have Rocketboost products, you should
disable hub mode on this device.
Important: Hub devices must always have
power for your network to operate. The
hub device can be in standby (power-
saving) mode, but must stay plugged in.
© 2010 BBY Solutions, Inc., All Rights Reserved. Distributed by Best Buy Purchasing, LLC, 7601 Penn Avenue South, Richfield, MN USA 55423-3645
ENGLISH 10-0176
