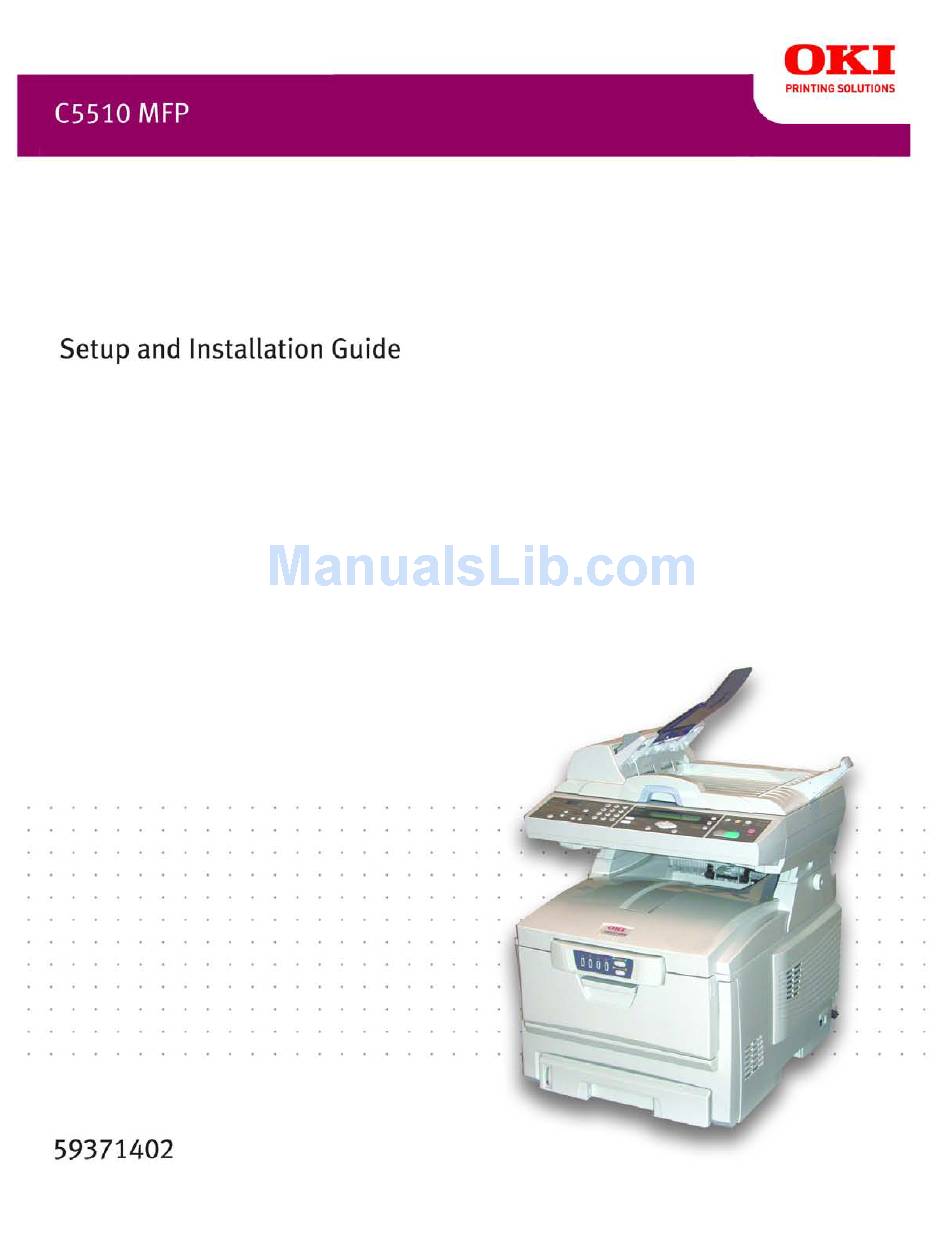

Guide: setup and installation c5510mfp (american english)
Hide thumbs Also See for C5510nMFP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C5510nMFP and is the answer not in the manual?

Questions and answers

Related Manuals for Oki C5510nMFP

Summary of Contents for Oki C5510nMFP

  • Page 3: Table Of Contents

    C5510 MFP Setup and Installation Guide Installation Overview Notes, Cautions, and Warnings ..4 Configuring Your MFP Configuring from the OKI Management Select Location ....4 Utility (OKI MFP Network Setup Tool) 15 Checking Package Contents .

  • Page 4: Notes, Cautions, And Warnings

    NOTES, CAUTIONS, AND WARNINGS CHECKING PACKAGE CONTENTS Unpack the box and check to see that all components are NOTE! included. If any item is missing, contact your dealer immediately. A note provides important information to supplement the main text. Scanning Unit Main unit Power Adapter and cord CAUTION!

  • Page 5: Setting Up The Printing Unit

    SETTING UP THE PRINTING UNIT 3. Make sure the printing unit and the support bracket are aligned and firmly in place. 1. Remove the transport tape from front and back of printing unit. NOTE! Do not remove the orange paper band extending from inside the printing unit on the right side.

  • Page 6: Setting Up The Scanning Unit

    SETTING UP THE SCANNING UNIT 5. Turn the locking knobs clockwise to lock the scanning unit in place. 1. Attach the paper support to the paper feed tray. 2. Attach the paper feed tray to the machine. Unlock the Scan Mechanism CAUTION! The scan mechanism is locked during transport to prevent damage.

  • Page 7: Connecting The Cables

    CONNECTING THE CABLES Connect the computer cable IMPORTANT NOTE! Connect the ADF cable Connect the ADF cable (attached to the documents cover), to the To ensure the scan function works properly, install the ADF port on the scan unit. Scanning Unit Driver before connecting the USB cable to your computer.

  • Page 8: Preparing The Image Drum/Toner

    PREPARING THE IMAGE DRUM/TONER 3. Connect the power cord to the power adapter. CARTRIDGES 1. Press the cover release button and lift the top cover. 4. Connect the other end of power cord to a power outlet. 2. Carefully lift the black toner/drum cartridge out of the printing unit.
  • Page 9 4. Pull out both the protective sheet and the plastic sheet in the 7. Repeat steps 2 to 6 with remaining toner/ drum cartridges. direction of arrow. 5. Carefully place the toner/drum cartridge back into the printing unit. 6. Push the blue lock lever towards the back of the unit as far as it will go.

  • Page 10: Preparing The Fuser

    PREPARING THE FUSER 1. Observe the instructions printed on the orange band. 2. Remove the orange band. Press firmly on the blue lock (1) to release the orange transport restraint (2). Pull the restraint out in the direction of the arrow. 3.

  • Page 11: Loading Paper

    LOADING PAPER 4. Load the paper. 1. Pull out the paper tray. 5. Close the paper tray. 2. Remove the transport restraint by pulling downward then out. 3. Adjust the rear (1) stopper and paper guides (2) to the size of paper being used. Do not overload.

  • Page 12: Turning Power On

    TURNING POWER ON IMPORTANT NOTE! Do not turn the scanning unit power on until the Power (Ready) LED is illuminated on the printing unit status panel. Turn printing unit power on Turn power switch to the " ❘ " position Turn scanning unit power on Wait until the Power (Ready) LED illuminates solid green on the printing unit status panel.

  • Page 13: Network Installation: Windows

    ® INTERNET COMMUNICATION FEATURES NETWORK INSTALLATION: WINDOWS Scan to E-mail MINIMUM CONFIGURATION REQUIREMENTS The MFP allows you to deliver your scanned document to e-mail addresses on the network. The document is first scanned and To make the best of this MFP, the following configuration is converted to a standard file format, then transmitted to remote required: recipients simultaneously as an e-mail attachment.

  • Page 14: Installing Drivers And Network Software

    Installing Drivers and Network Software 6. Click MFP Essentials. 7. Select Network Installation. Click Next. NOTE! 8. Follow the on-screen instructions. To ensure the scan function works properly, DO NOT connect the USB cable to your computer until the MFP 9.

  • Page 15: Configuring Your Mfp

    Configuring Your MFP Configurating From the Web Page 1. Type the IP address of the MFP in the URL field of your This section is specifically for persons who are responsible for browser and then press Enter. The MFP web page appears. the administration of this MFP.

  • Page 16: Additional Network Software

    Profiles Additional Network Software Before sending documents to filing servers you should set up a few profiles to speed up the filing process. A profile contains a The following additional network utilities can be installed by list of filing parameters such as your filing protocol, directory, clicking on the Network Software button: file name and other scanning parameters.

  • Page 17: Operating Your Mfp

    OPERATING YOUR MFP Loading the Paper Cassette Tray IMPORTANT NOTE! Recommended Paper weight = 17 to 32 lb. Before sending a print job, be sure that the MFP is in 1. Remove the paper tray from the printer. SCAN TO MODE. In COPY MODE, the printing unitprinting unitwill not accept a print job.

  • Page 18: Quick Operation

    Quick Operation Enter your copy count via the numeric keypad. Press to make Press Copy Mode key. B&W copy. Press to make color copy. Choose your e-mail address from the Address Book. Press to send Press Scan to Mode key. your document in B&W.

  • Page 19: For Additional Information

    For Additional Information For additional information about your MFPsee these sources: • The electronic User’s Guide’s on the supplied CD for expanded information on using your MFP. • The Handy Reference Guide. • The HELP files available with the utility programs. For Assistance If you need further assistance or have questions: •...
  • Page 20 Oki Data Americas, Inc., 2000 Bishops Gate Blvd., Mt. Laurel, NJ 08054-4620 Tel: (856) 235-2600 Fax: (856) 222-5320 www.okidata.com my.okidata.com Oki Data Americas, Inc., 2735 Matheson Blvd. East, Unit 1, Mississauga, Ontario L4W 4M8, Canada Télép: 1-800-654-3282 Téléc: 1-905-238-4421 www.okidata.com Oki is a registered trademark of Oki Electric Industry Company, Ltd.
