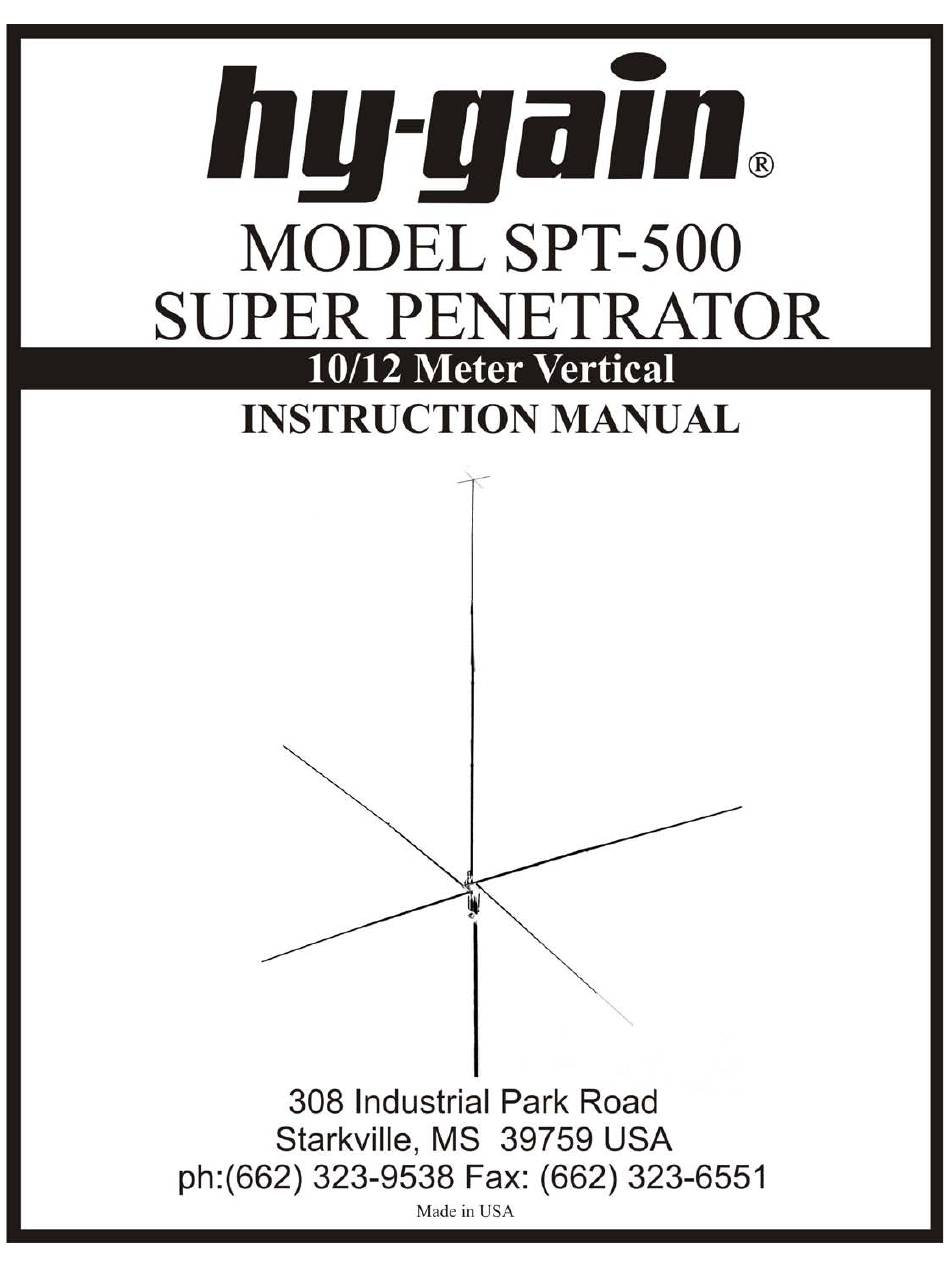

- Page 1 hg-gain MODEL SPT-500 SUPER PENETRATOR 10/12 Meter Vertical INSTRUCTION MANUAL Industrial Park Road Starkville, MS 39759 USA 323-9538 Fax: (662) 323-6551 Made in USA...
- Page 2 General Description The Penetrator is a full-size 5/8 wave, omnidirectional antenna. A full-sized radiator with a lower radiation angle concentrates power closer to the ground. It can be fed by any standard 50 ohm coaxial cable such as RG-8/U and RG-58/U. For runs over 50 feet, RG-8/U RG-213/U is recommended.
- Page 3 The base assembly will have the top Place one of the radial brackets on the insulator pre-installed. Remove the three base and align the holes so that the 1/4-20 nuts, bolts and split washers. bracket is square with the base. #8 self taping Place the other bracket on top of the first and align the holes.
- Page 4 Standoff insulator 463642 Install the u-bolts in the back of the mounting bracket loosely so that you can support the antenna on a temporary mast. You should have a friend help support the antenna when mounting or moving it around. Although the antenna is not heavy, it is very large in size and could injure someone or bend the elements if it were to fall over.
- Page 5 TOP HAT RADIALS ARE POSITIONED 10-24 x 1" 504069 INTERVALS Lock washer 7/16 x 52" 877157 with insert TOP hat radial 173499 1/8 cap 455624 x Hose clamp #4 745-3104S 5/8 X 53-1f2" 173273 Hose clamp #6 745-3106S Overlap each section 2—3 inches. use the last section to adjust the total length of the antenna 7/8 x 55"...
- Page 6 1.0LB t— 1.0 LO LO 1.0 10 LD (D awoo < 10 X LD (D...
- Page 7 SPT-500 Matching Rod Change This change uses CNC machinery tomako t homatching rod moro c onsistent andeasier t owork withwhen assembling thoantenna, Thisnew design will only useoneofthestandoff insulators used with thoolddesign. Although mechanicall different, theelectrical characteristics ofthomatching network are exactly the same. Standoff insulator 463642-1...
