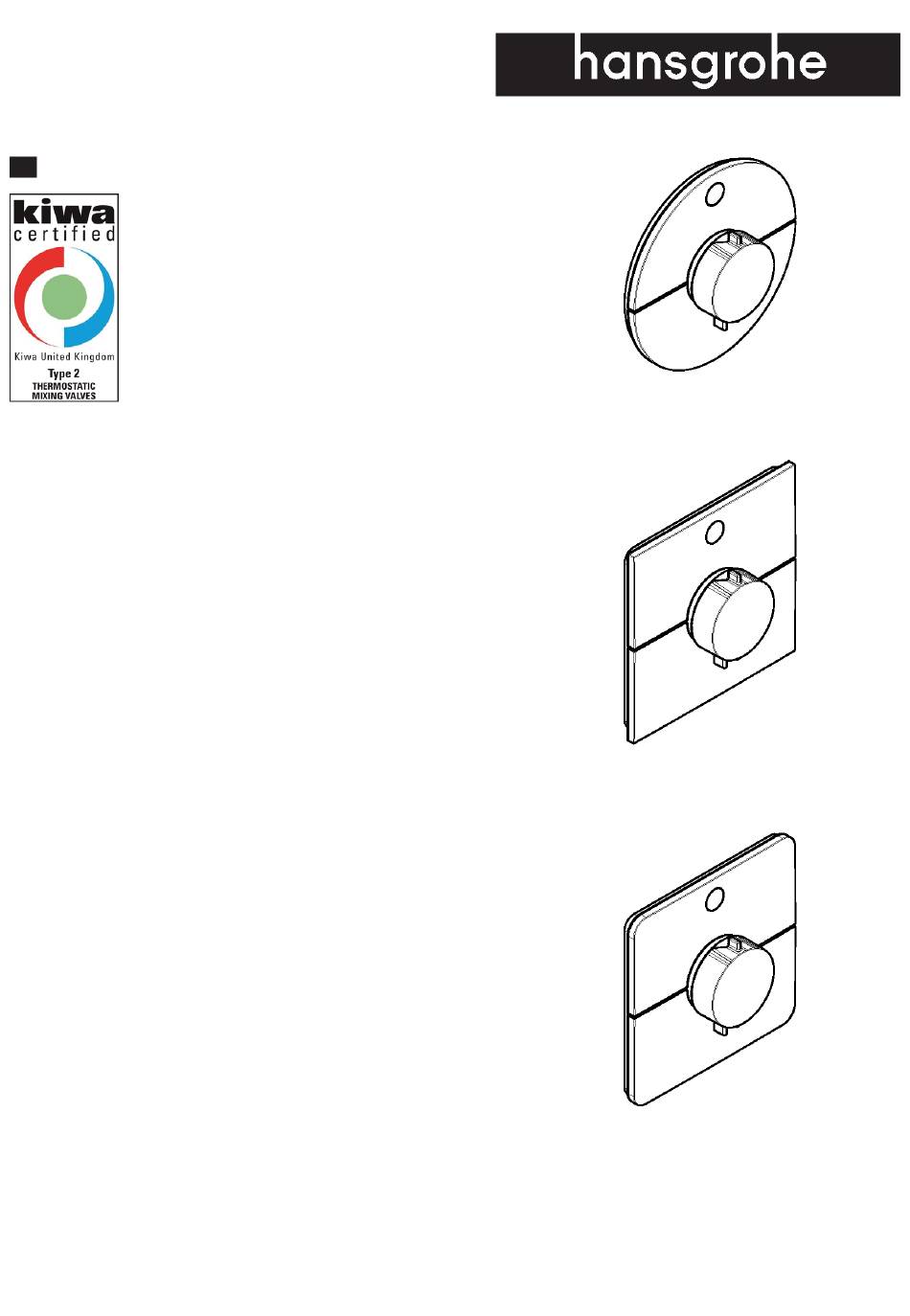

- Page 1 Instructions for use / Assembly instructions ShowerSelect S 15553XX0 ShowerSelect E 15571XX0 ShowerSelect Q 15581XX0...
- Page 2 English Adjustment (see page 12) Safety Notes Gloves should be worn during installation to prevent After the installation, the output temperature of the crushing and cutting injuries. thermostat must be checked. A correction is necessary if The product may only be used for bathing, hygienic the temperature measured at the output differs from the and body cleaning purposes.
- Page 3 English Fault Cause Remedy Insufficient water - Supply pressure inadequate - Check water pressure (If a pump has been installed check to see if the pump is working). - Regulator filter dirty - Clean filter in front of the mixer and on the MTC-thermo cartridge - Shower filter seal dirty - Clean filter seal between shower...
- Page 4 and the commissioning and testing of the TMV can be On the following undertaken. pages 4 - 8 you The mixer is fitted with check valves (page 21 can find impor- pos. 94928000). There are filters on the thermostatic tant information element too (page 21 pos.
- Page 5 41°C for washbasins. Before connecting the mixer, water should be flushed The maximum mixed water temperature can be 2°C through the system to remove all debris that might other- above the recommended maximum set outlet tempera- wise damage the valve. tures.
- Page 6 https://www.kiwa.com/gb/en/about-kiwa/ water seeping from the valve is no more than 2°C above tmvs-certificate-search/ the designated maximum mixed water outlet temperature b) the supply pressures are within the range of oper- setting of the valve. ating pressures for the designation of the valve Temperature readings should be taken at the normal flow c) the supply temperatures are within the range rate after allowing for the system to stabilise.
- Page 7 Acceptance criteria for TMV Type 2 Tub/Bath: and 4. the next in-service test can be deferred to 1. The volume collected in the first period of 5 s shall 24 to 28 weeks after commissioning. b) If small changes (e.g. 1 to 2 K) in mixed water not exceed 400 ml.
- Page 8 tion in user / owner domestic dwellings, a duty of care obligation should be considered in commercial bathroom or subletting situations. The mixer is fitted with check valves (page 21 pos. 94982000) and filters (page 21 pos. 98282000). If the water flow drops the filters need to be cleaned. For that purpose please follow the steps 1 - 18 on page 16.
- Page 9 01500180 DOWN 4 mm 4 mm (3 Nm)
- Page 10 15571XX0 / 15581XX0 (3,1 x 1,6) CLICK...
- Page 11 CLICK CLICK...
- Page 12 CLICK...
- Page 13 3 mm z. B. 42° C for example 42° C...
- Page 14 3 mm (4 Nm)
- Page 15 CLICK CLICK CLICK...
- Page 16 3 mm 27 mm...
- Page 17 ( 4 N 27 mm (15 Nm) 3 mm (4 Nm)
- Page 18 CLICK CLICK CLICK...
- Page 19 ShowerSelect S ShowerSelect E ShowerSelect Q 15553XX0 15571XX0 15581XX0 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 12 18 24 30 36 42 48 Q = l/min Q = l/sec...
- Page 20 www.hansgrohe.com/cleaning-recommendation *www.hansgrohe.com/warrant y Cleaning recommendation / Warranty / Contact >40°C...
- Page 21 ShowerSelect E ShowerSelect Q 15571XX0 15581XX0 98134000 94959XX0 (16 x 2,5) 98368000 95758000 M28x1,5 94974XX0 19 mm 94900000 94928000 94971000 94009000 98282000 ShowerSelect S 98913000 15553XX0 M34 x 1,5 27 mm 94933000 94972000 94958XX0 94929000 94927000 94930000 (3,1 x 1,6) 94933000 94926XX0 94929000...
