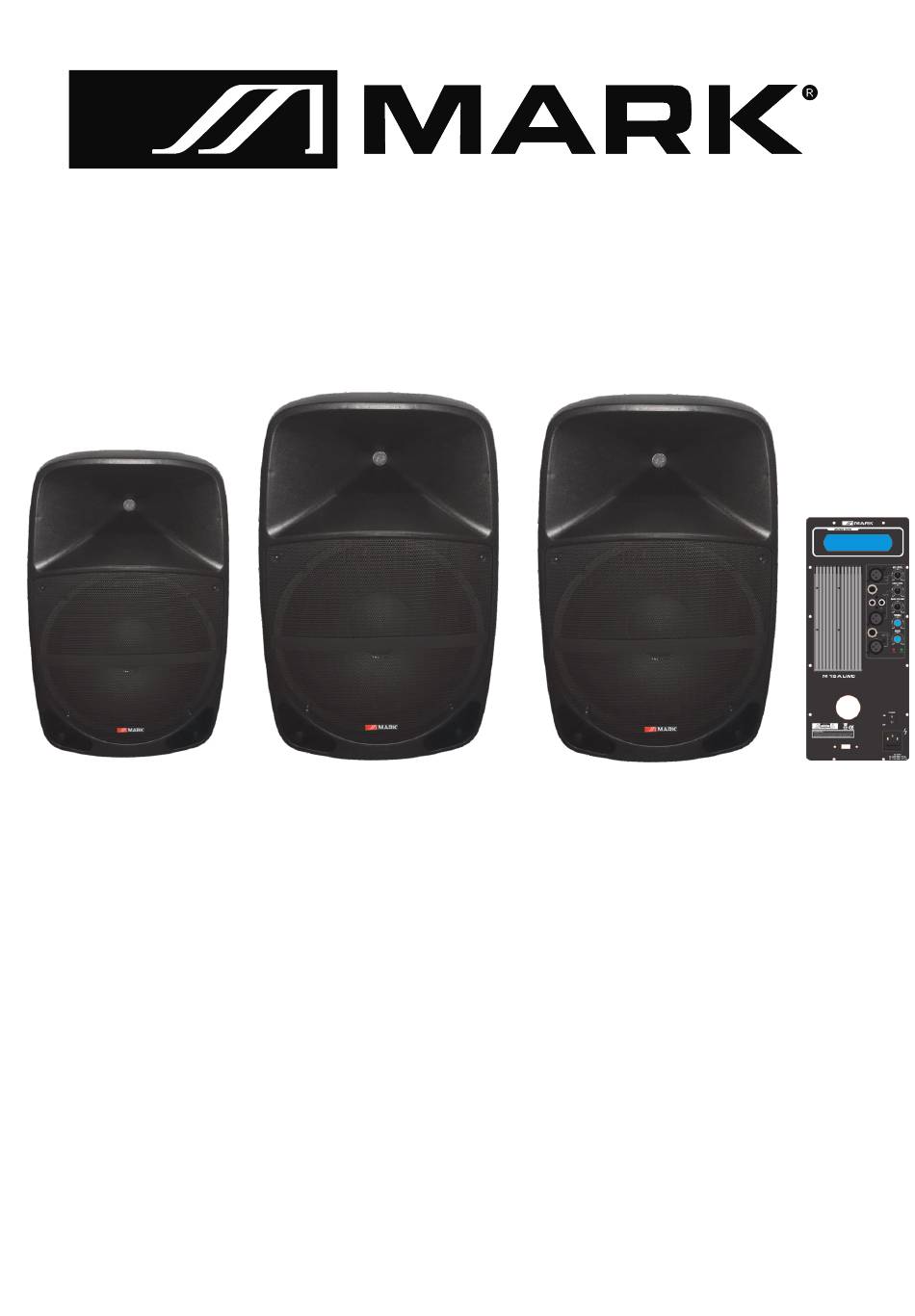

- Page 1 M12 LWC M15 LWC M15A LWC M-LWC SERIES (Active / Passive) User Manual / Instrucciones de Usuario Rev 16.03.01...
- Page 2 M12 LWC - M15 LWC M 15A LWC SAFETY RELATED SYMBOLS WARNING: WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR HUMIDITY. DO NOT REMOVE COVER. THIS PRODUCT IS NOT INTENDED FOR USE OTHER THAN STATED. ENSURE THAT THE MAIN VOLTAGE SOURCE MATCHES THE VOLTAGE RATING.
- Page 3 PASSIVE SERIES M12 LWC - M 15 LWC This is an example picture for passive series rear panel.The rest of device on this series have the same configuration changing the power output. MBS Series (Active/Passive) - 2 - User Manual / Manual de uso...
- Page 4 ACTIVE SERIES M 15A LWC MBS Series (Active/Passive) - 3 - User Manual / Manual de uso...
- Page 5 1 - 2. MIC Input. XLR 3 pin/Jack 1/4" connectors for a microphone input. 3. LINE Input. 2x RCA connectors that allow to connect an external unbalanced audio device (CD, tuner, deck) 4. LINE Input. XLR 3 pin connector for a LINE input 5.
- Page 6 Passive Series M 12 LWC M 15 LWC Model Type 2-Way passive loudspeaker Diameter Woofer 12" 15" Coil Diameter 1.5" 1.5" Diameter / Coil material 25 mm/Titanium 25 mm/Titanium Tweeter Impedance 8 Ω 8 Ω Power Output (AES) 100 W 120 W Power Output (program) 200 W...
- Page 7 M12 LWC - M15 LWC M15A LWC SIMBOLOS RELATIVOS A LA SEGURIDAD WARNING: WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR HUMIDITY. DO NOT REMOVE COVER. THIS PRODUCT IS NOT INTENDED FOR USE OTHER THAN STATED. ENSURE THAT THE MAIN VOLTAGE SOURCE MATCHES THE VOLTAGE RATING.
- Page 8 PASSIVE SERIES M12 LWC - M 15 LWC Este es un dibujo de ejemplo del panel trasero de la serie pasiva. El resto de dispositivos de esta serie tienen la misma configuración exceptuando la potencia de salida. MBS Series (Active/Passive) - 7 - User Manual / Manual de uso...
- Page 9 SERIE ACTIVA M 15A LWC MBS Series (Active/Passive) - 8 - User Manual / Manual de uso...
- Page 10 1 - 2. Entrada MIC. Conectores XLR 3 pin y Jack 1/4" para entrada de micrófono. 3. Entrada LINE. 2x conectores RCA que permiten conectar un dispositivo externo de audio desbalanceado (CD, pletina, sintonizador). 4. Entrada LINE. Conector XLR 3 pin para entrada LINE. 5.
- Page 11 Serie Pasiva M 12 LWC M 15 LWC Modelo Tipo Cajas acústicas pasivas de 2 vías Woofer Diámetro 12" 15" Diámetro bobina 1.5" 1.5" Diámetro / Material Tweeter 25 mm/Titanio 25 mm/Titanio Impedancia 8 Ω 8 Ω Potencia de salida (AES) 100 W 120 W Potenc.
- Page 12 EQUIPSON, S.A. Avda. El Saler, 14 - Pol. Ind. L´Alteró 46460 - Silla (Valencia) Spain Tel. +34 96 121 63 01 Fax + 34 96 120 02 42 / equipson@equipson.es www.equipson.es...
