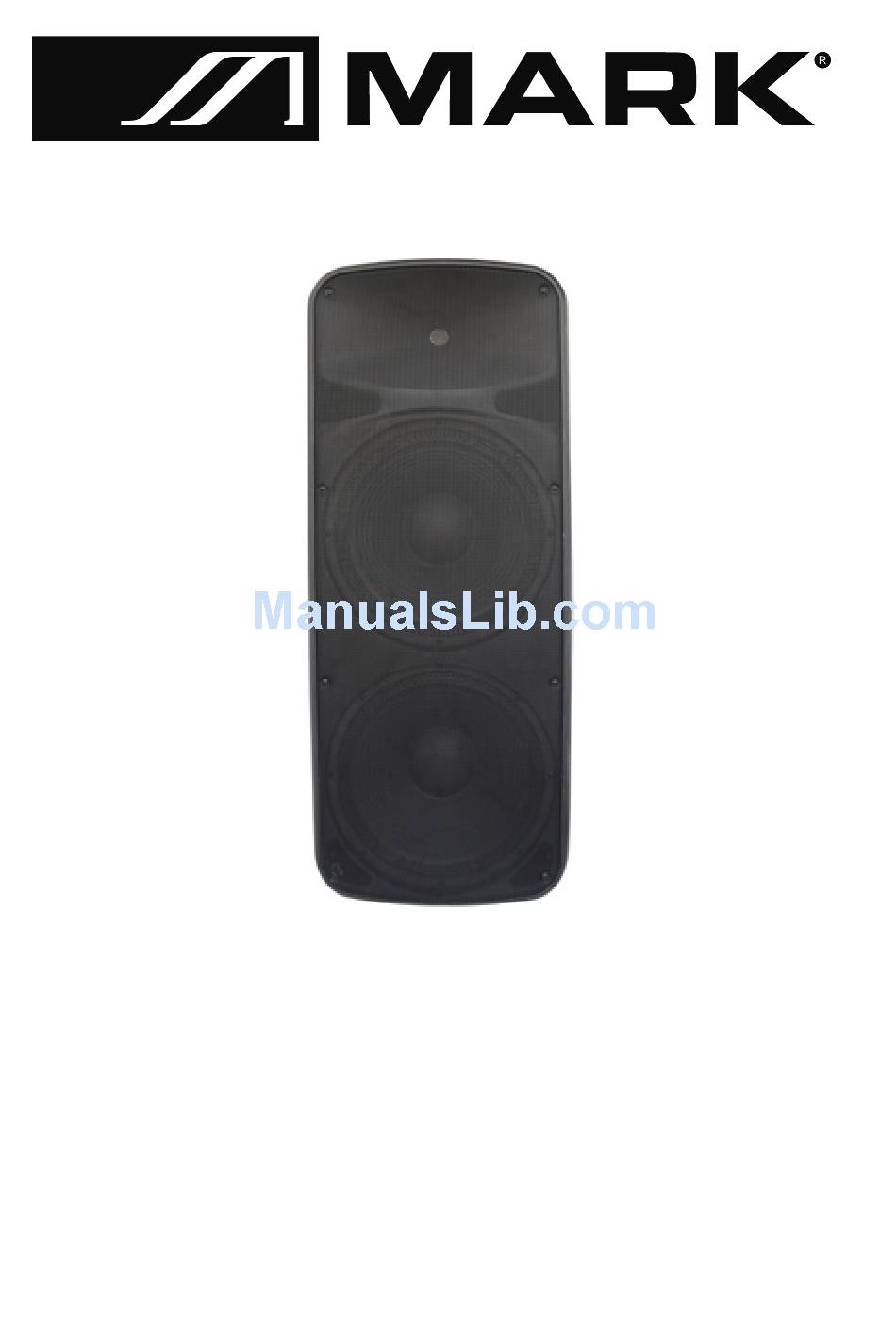

- Page 1 MBS 6215 SERIES (Active / Passive) User Manual / Instrucciones de Usuario Rev 13.12.10...
- Page 2 Do not use this product when in close proximity to water. Do not install this product near any direct heat source. Do not block areas of ventilation. MBS 6215 Series (Active/Passive) - 1 - User Manual / Manual de uso...
- Page 3 MBS 6215 400W - 8Ω 1-IN : It allows to connect to a external amplifier through speakon connector. 2-LINK: It allows to connect other loudspeaker through speakon connector. MBS 6215 Series (Active/Passive) - 2 - User Manual / Manual de uso...
- Page 4 ACTIVE REAR MBS 6215 A USB 1. USB Port 2. LCD Display 3. SD Card Port 4. MP3 Volume. This is used to adjust the signal level of the USB/SD Card inputs. 5. MIC Volume control. It is used to adjust the signal level from the Microphone input.
- Page 5 Freq. Response: 30Hz-19KHz Max SPL: 130dB Nominal Line Input: RCA,XLR, 3.5 Low Freq Woofer: 15" *2 3.0"KSV 80oZ High Freq Driver: 1.75"Ti.Diap.Driver 8Ω Power Max: 600W Weight : 28Kg MBS 6215 Series (Active/Passive) - 4- User Manual / Manual de uso...
- Page 6 MBS 6215 A USB SIMBOLOS RELATIVOS A LA SEGURIDAD WARNING: WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR HUMIDITY. DO NOT REMOVE COVER. THIS PRODUCT IS NOT INTENDED FOR USE OTHER THAN STATED.
- Page 7 SERIE PASIVA MBS 6215 400W - 8Ω 1-IN : Permite la conexión con un amplificador externo a través de un conector del tipo speakon. 2-LINK: Permite la conexión con otro altavoz mediante un conector speakon. MBS6215 Series (Active/Passive) - 6 -...
- Page 8 12. Salida LINE . Conector XLR 3 pin que permite enviar la señal pre-amplificada a otro dispositivo amplificador. 13. Conmutador On/Off. Presione para encender/apagar la unidad. 14. Toma AC. Conecte el cable AC incorporado. MBS 6215 Series (Active/Passive) - 7 - User Manual / Manual de uso...
- Page 9 Freq. Respuesta: 30Hz-19KHz Max SPL: 130dB Nominal Line Input: RCA,XLR, 3.5 Low Freq Woofer: 15" *2 2.5"KSV 80oZ High Freq Driver: 1.75"Ti.Diap.Driver 8Ω Power Max: 600W Peso : 28Kg MBS 6215 Series (Active/Passive) - 8- User Manual / Manual de uso...
- Page 10 EQUIPSON, S.A. Avda. El Saler, 14 - Pol. Ind. L´Alteró 46460 - Silla (Valencia) Spain Tel. +34 96 121 63 01 Fax + 34 96 120 02 42 www.equipson.es / equipson@equipson.es...
