Summary of Contents for Mark MWA 802

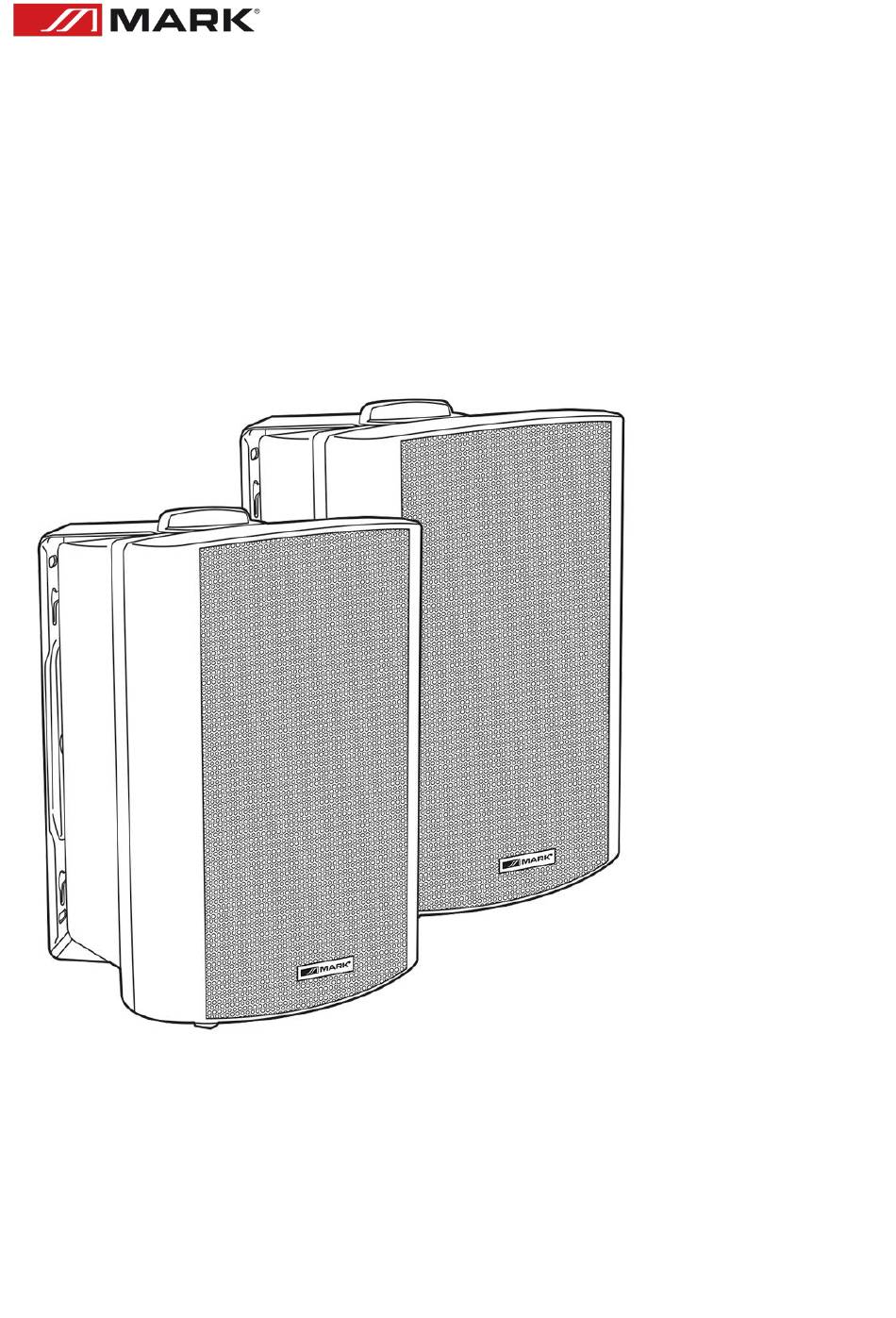

- Page 1 MWA 802 User Manual – Version 1.2...
-
Page 2: Safety Instructions
8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time. - Page 3 Both devices integrate a 6.5” woofer and a 1" tweeter. Made of white colour ABS plastic, they have metal grille and fixing handle included. The main feature of MWA 802 is the possibility to connect via Wi-Fi and Bluetooth with smartphones or similar devices able to send audio files in streaming.
- Page 4 CONNECTION Connect the included external power supply to the main loudspeaker. Use the speaker parallel cable to link both loudspeakers considering the polarity. REMOTE CONTROLLER Turn on/off the device. Short press to group a speaker. Long press to extract the speaker from the group.
-
Page 5: Wifi Mode
SETUP WIFI MODE To configure this loudspeaker system in Wi-Fi mode, it is necessary to download the 4STREAM app, freely available for Android and iOS on their respective download pages. STEP 1 Turn on the loudspeaker. The LED should be red (wifi). Search within the smartphone, in the Wi-Fi networks section, the name of the MWA802 speaker. - Page 6 STEP 2 The program will search for compatible devices. STEP 3 Once the device is found, it appears on the display. Press "TOUCH ALL"...
- Page 7 STEP 4 In the next step, we choose the local WIFI network that we have and click continue. STEP 5 The process of connecting the previously detected speaker to the local WIFI network begins. An audible warning will be emitted that the device is connecting to the local Wi-Fi.
- Page 8 STEP 6 Once connected, click on the icon in the upper left corner to select the different audio sources from which we can send files. STEP 7 NOTE: IF YOU USE SPOTIFY, you must have a Premium account. We select the icon, and after authorizing ourselves to use it, we select the playlist saved in SPOTIFY and display the icon that allows us to select the destination.
- Page 9 STEP 8 Now we can see that the playlist is running, and at the bottom (in green), the output device in which the audio is playing appears. STEP 9 In the 4STREAM app, we move screens to the right and we can see the information of the speaker playing the audio.
- Page 10 ADDITIONAL NOTES A) If in step 4, the 4STREAM Home application does not show us the list of local Wi-Fi networks, we must select it from the CONFIGURATION / WIFI NETWORKS menu of the smartphone and then return to the 4STREAM Home application to go to step 5.
- Page 11 Then: STEP 10 We see the two loudspeaker models detected and connected. Now we can group them. Previously, we click on the LR icon of each one to assign a channel to each of them (L and R). Once this step is taken. We click on the lower device and drag it to the upper one. STEP 11 The two loudspeakers are linked as a root.
- Page 12 STEP 12 If you don't want to use SPOTIFY, you can play audio stored on our smartphone. To make this, select (MY MUSIC) in the audio sources screen. It will show the different possibilities. We select PHONE. STEP 13 The folders stored on the smartphone are displayed. Select the folder where you have the music stored and choose the track.
-
Page 13: Bluetooth Mode
This short guide is meant to help and try to solve simple problems. If they continue and the device cannot operate, please, don’t try to repair it by yourself, return the device to your MARK dealer. If a problem occurs, carry out the following steps in sequence until find the problem solved.
