Rompa SNOEZELEN 24514 Instruction Manual

Hip hop activity box wall panel & floor pad

Advertisement

Quick Links

R

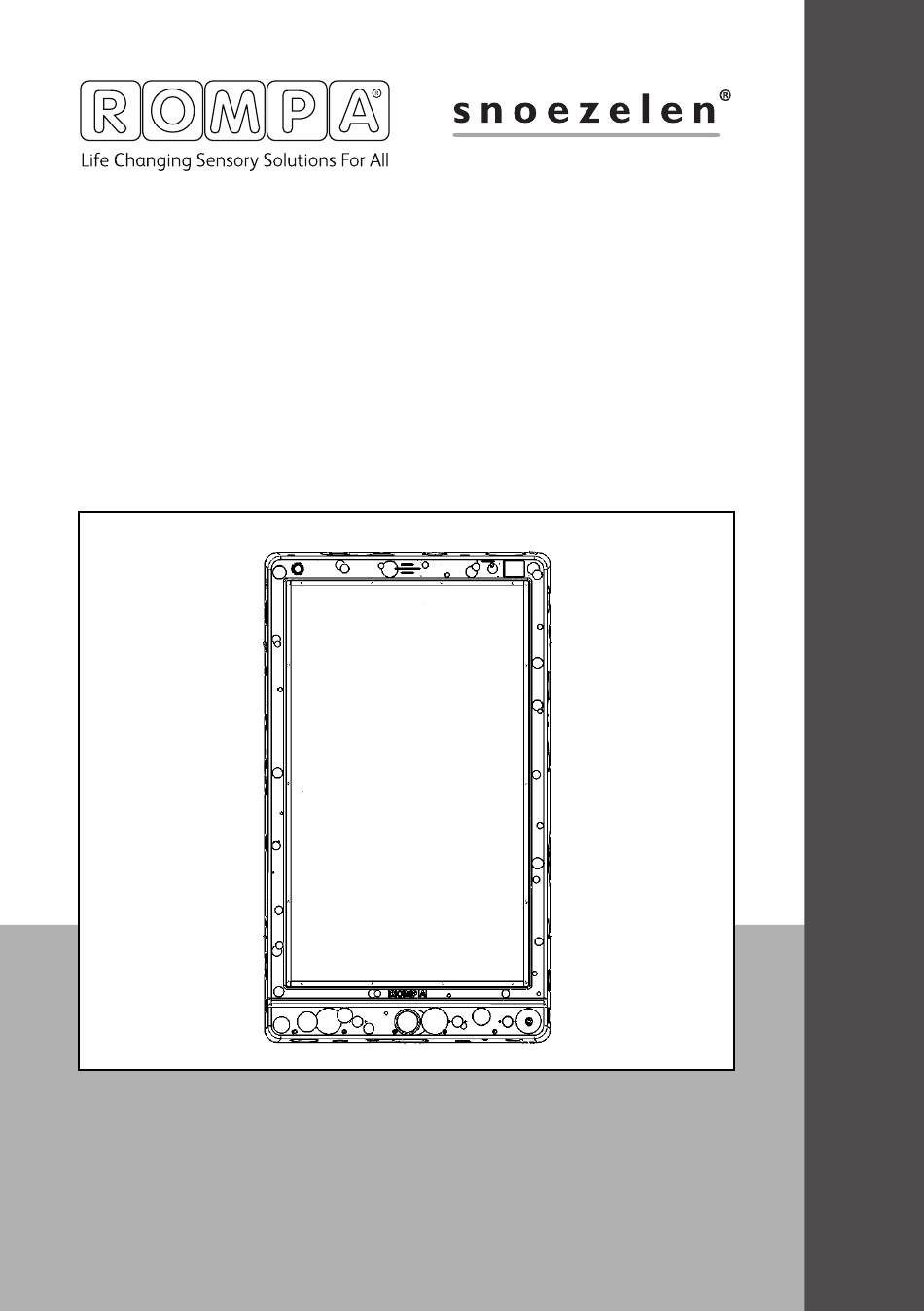

INSTRUCTION
MANUAL
SNOEZELEN
HIP HOP ACTIVITY BOX™
®
WALL PANEL & FLOOR PAD
24514

Advertisement

loading
Need help?

Need help?

Do you have a question about the SNOEZELEN 24514 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rompa SNOEZELEN 24514

  • Page 1 INSTRUCTION MANUAL SNOEZELEN HIP HOP ACTIVITY BOX™ ® WALL PANEL & FLOOR PAD 24514...
  • Page 2 CONTENTS...
  • Page 3 CONTENTS ABOUT THE PRODUCT ������������������������������������������������������������������������������������ 4 Product Description ����������������������������������������������������������������������������������������������������������������������������������������������������5 User Benefits ����������������������������������������������������������������������������������������������������������������������������������������������������������������5 Product Compatibility ������������������������������������������������������������������������������������������������������������������������������������������������5 TECHNICAL SPECIFICATION ��������������������������������������������������������������������������� 6 Included Parts���������������������������������������������������������������������������������������������������������������������������������������������������������������7 Technical Specification ����������������������������������������������������������������������������������������������������������������������������������������������7 SAFETY AND CARE ������������������������������������������������������������������������������������������� 8 Product Safety and Care Instructions �������������������������������������������������������������������������������������������������������������������9 ASSEMBLY & INSTALLATION GUIDE Product Assembly Guide/Installation ����������������������������������������������������������������������������������������������������������������� 13 Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4 ABOUT THE PRODUCT...
  • Page 5 Product Description Immerse yourself in a world of interactive fun and learning with the soft play floor pad. This versatile pad allows you to play games, create music, and trigger mesmerizing shows of light and colour, all from a single, engaging platform. The panel is brimming with a variety of games, musical compositions, and sound effects, offering endless hours of entertainment and educational opportunities.
  • Page 6 TECHNICAL SPECIFICATION...
  • Page 7 Included Parts • 1x Hip Hop Activity Box™ Wall Panel • 1x Hip Hop Activity Box™ Floor Pad • 2x Wall Mounting Bracket • 4x M4 Screws • 1x UK Mains Lead • 1x US Mains Lead • 1x EU Mains Lead Panel Floor Pad...
  • Page 8 Technical Specification Panel: Weight: 12kg Dimensions: 115H x 67W x 10cm Input: 100-240V 50/60Hz Output: 5V DC 10A 115cm (H) 67cm (W)
  • Page 9 Floor Pad: Weight: 12kg Dimensions: 115H x 67W x 10cm Input: 100-240V 50/60Hz Output: 5V DC 10A Material: ABS (Phthalate-Free) 145cm (H) 72.5 (W)
  • Page 10 SAFETY AND CARE...
  • Page 11 Disconnect any cables when installing or moving the product. Pulling of the cables can cause premature wear or damage to the product and/ or accessories. • If the product generates abnormal sounds, a burning smell or smoke disconnect immediately and contact Rompa customer services. ® •...
  • Page 12 ASSEMBLY & INSTALLATION GUIDE...
  • Page 13 Product Assembly Guide/Installation Installation Installing Wall Mount Brackets & Panel Ensure that, after installation, the mains plug and/or power switch for the Panel is easily accessible to facilitate removal of power. Due to the size of the product, it is recommended that two people are required to install the product.
  • Page 14 1� Unscrew the 4x M4 screws which secure the 2x brackets to the panels� The brackets are secured to avoid any damage during transit� Be sure to place the 4x M4 screws in a safe place as they will be required later� 2�...
  • Page 15 4� Secure both brackets to the wall* ensuring the centre of the bracket mounting holes line up with the marks just made to ensure the bracket is level when mounting it to the wall� The top bracket mounting holes should line up with the top 2x marks and the bottom bracket mounting holes should line up with the bottom 2x marks�...
  • Page 16 5� Clean the wall and brackets of any dust and debris which may have been created whilst mounting the brackets� Insert one end of the floor pad cable into the floor pad and the other into the wall panel� Tighten the integrated screws�...
  • Page 17 If the IEC cable is securely in place and there is still no power to the panel, then ensure that the plugs fuse has not blown and replace if required. If troubleshooting does not solve the issue please contact Rompa Customer Services ®...
  • Page 18 USER GUIDE...
  • Page 19 User Guide Operation Modes The mode dictates how the panel behaves. The Hip Hop Activity Box™ has 6 modes which can be selected via the touch screen and an additional mode when a microphone is plugged into the ¼”/6.35mm microphone input: Mode 1: One Light/ One Note When a colour on the floor pad is selected the entire panel screen will light up the same colour and play an associated sound effect.
  • Page 20 Mode 5: Song and Lights A song and light pattern is linked to each colour of the floor pad. Selecting a colour on the floor pad will trigger the pattern and song to start playing. At any time the user can select a different song and pattern by stepping on another colour.
  • Page 21 Mode 5: Press the light blue mode button to cycle through the modes of the panel. Press the red forward or back buttons to cycle through the other menu options. Difficulty: Pressing at the face will give you different levels of difficulty in that mode.
  • Page 22 Pressing the purple wireless button will cycle the panel Wireless on or off. With wireless turned on the panel will respond to other Rompa® compatible wireless products. With wireless turned off it will ignore Rompa® compatible wireless products. Press the red forward or Stats Pressing the blue stats will open the stats screen.
  • Page 23 Illuminated Push Buttons The Hip Hop Activity Box™ has 1 illuminated push button so the user can control select the theme of sound effects associated with the panel. When pressed the button will flash and a unique sound effect will be triggered. Sound effects can be 15 turned off via the touch screen.
  • Page 24 Pressing the colour buttons turns the all the panel the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel or a Rompa® wireless controller or the panel will return to its normal operation by using the floor pad or timing out after...
  • Page 25 Game Mode It is recommended that only an 8 colour controller is used with game mode as the 8 colours on the controller match the 8 colours on the floor pad. Pressing the central ‘function button’ will switch the panel to the Game Mode. 8 Colour Wirefree Controller: Simple and Deluxe Pressing the colour buttons acts as pressing the corresponding colour on the floor pad.
  • Page 26 FEATURES...
