Summary of Contents for Rompa SNOEZELEN SOUND TO SIGHT SHOWTIME

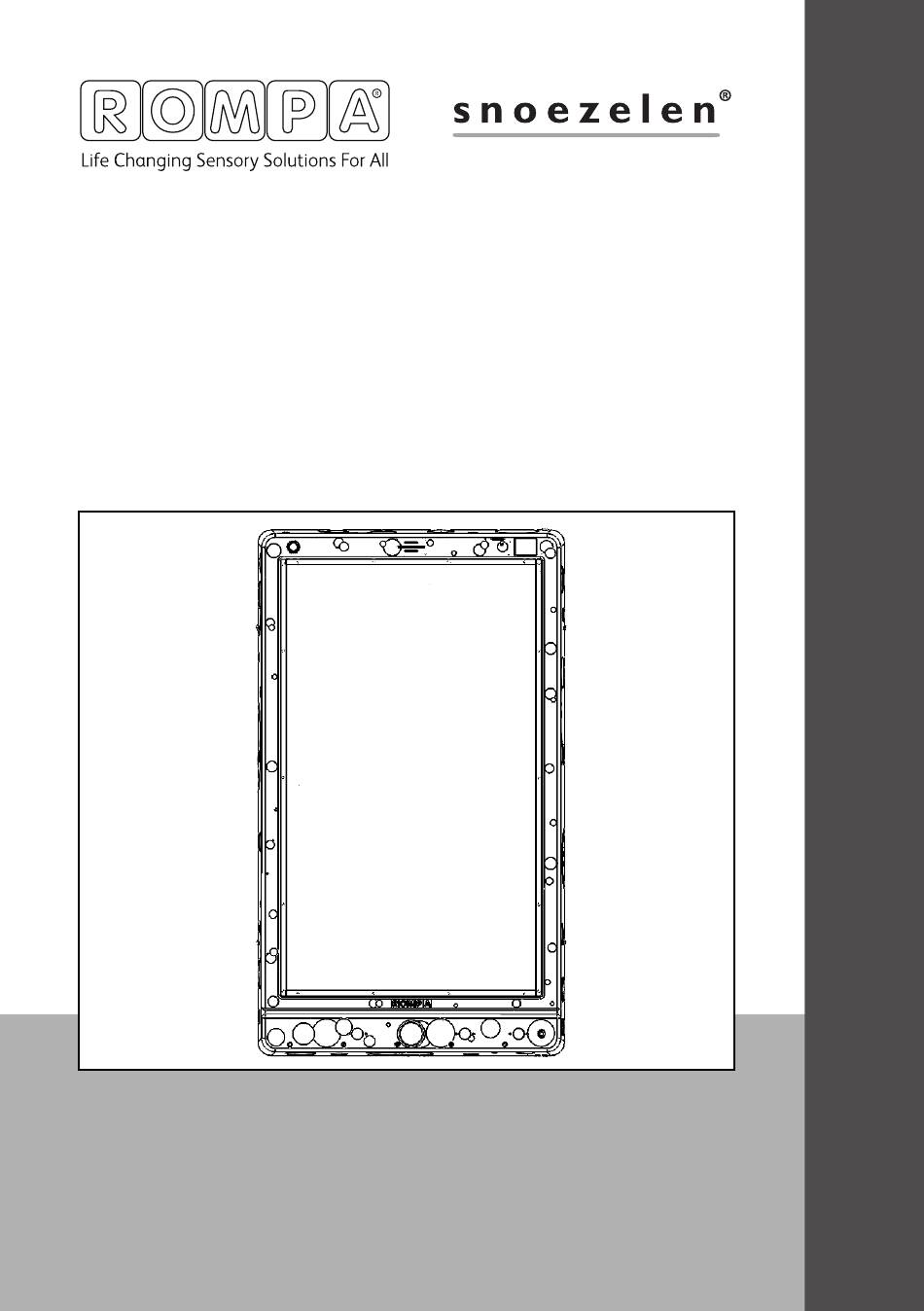

  • Page 1 INSTRUCTION MANUAL SNOEZELEN SOUND TO SIGHT ® SHOWTIME SENSORY ROOM WALL PANEL ™ 24512...
  • Page 2 CONTENTS...
  • Page 3: Table Of Contents

    CONTENTS ABOUT THE PRODUCT ������������������������������������������������������������������������������������ 4 Product Description ����������������������������������������������������������������������������������������������������������������������������������������������������5 User Benefits ����������������������������������������������������������������������������������������������������������������������������������������������������������������5 Product Compatibility ������������������������������������������������������������������������������������������������������������������������������������������������5 TECHNICAL SPECIFICATION ��������������������������������������������������������������������������� 6 Included Parts���������������������������������������������������������������������������������������������������������������������������������������������������������������7 Technical Specification ����������������������������������������������������������������������������������������������������������������������������������������������7 SAFETY AND CARE ������������������������������������������������������������������������������������������� 8 Product Safety and Care Instructions �������������������������������������������������������������������������������������������������������������������9 ASSEMBLY & INSTALLATION GUIDE Product Assembly Guide/Installation ����������������������������������������������������������������������������������������������������������������� 12 Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: About The Product

    ABOUT THE PRODUCT...
  • Page 5: Product Description

    Product Description Sounds are turned into dazzling shows of light, colour and movement. The panel responds to both changes in pitch and volume to create an everchanging sensory experience. Engaging, interactive and rewarding. Encourages learning, exploration and fosters a feeling of empowerment.
  • Page 6: Technical Specification

    TECHNICAL SPECIFICATION...
  • Page 7: Included Parts

    Included Parts 1x Sound to Sight Showtime Panel ™ 2x Wall Mounting Bracket 4x M4 Screws 1x UK Mains Lead 1x US Mains Lead 1x EU Mains Lead Technical Specification Weight: 13.5kg Dimensions: 115H x 67W x 10cm Input: 100-240V 50/60Hz Output: 5V DC 10A Material: ABS (Phthalate-Free) 67cm...
  • Page 8: Safety And Care

    SAFETY AND CARE...
  • Page 9: Product Safety And Care Instructions

    Disconnect any cables when installing or moving the product. Pulling of the cables can cause premature wear or damage to the product and/ or accessories. • If the product generates abnormal sounds, a burning smell or smoke disconnect immediately and contact Rompa customer services. ® •...
  • Page 10 • Do not attempt to physically damage the product including the electronics, screen and buttons. • Ensure loose wires are out of sight. At the end of the product’s life please dispose of the product ethically: • Product can be taken to local recycling centre. Visit RecycleNow.com to find your local recycling centre.
  • Page 11: Assembly & Installation Guide

    ASSEMBLY & INSTALLATION GUIDE...
  • Page 12: Product Assembly Guide/Installation

    Installing Wall Bracket, Tank & Panel Ensure that, after installation, the mains plug and/or power switch for the Panel is easily accessible to facilitate removal of power. Due to the size of the product, it is recommended that two people are required to install the product.
  • Page 14 Unscrew the 4x M4 screws which secure the 2x brackets to the panels. The brackets are secured to avoid any damage during transit. Be sure to place the 4x M4 screws in a safe place as they will be required later. Remove the brackets from the panel by sliding the bracket down and then lift them out of panel.
  • Page 15 Secure both brackets to the wall* ensuring the centre of the bracket mounting holes line up with the marks just made to ensure the bracket is level when mounting it to the wall. The top bracket mounting holes should line up with the top 2x marks and the bottom bracket mounting holes should line up with the bottom 2x marks.
  • Page 16: Troubleshooting

    Clean the wall and brackets of any dust and debris which may have been created whilst mounting the brackets. Place the panel on the brackets. To do this have the panel slightly higher than its final resting position. When you feel the panel has slotted into the bracket gradually lower the panel into position.
  • Page 17 Ensure the mains is off before checking the power cable is fully inserted into the panel and then turn the mains back on. Check the power lead’s fuse. If troubleshooting does not solve the issue please contact Rompa Customer Services ®...
  • Page 18: User Guide

    USER GUIDE...
  • Page 19 Modes The mode controls how the panel behaves. The Sound to Sight Showtime has 3 modes which can ™ be selected via the touchscreen and an additional mode when one or two microphones are plugged into the ¼”/6.35mm microphone input: Mode 1: Amplitude and Frequency The panel reacts to both the amplitude and frequency of a sound.
  • Page 20 Mode Press the light blue mode button to cycle through the modes of the panel. Press the red forward or back buttons to cycle through the other menu options. Media* Press the ‘play/ pause’ button to play or pause music. Press the ‘skip forward’ to play the next track or ‘skip back’...
  • Page 21 Press the red forward or back buttons to cycle through the other menu options. Wireless Pressing the purple wireless button will cycle the panel wireless on or off. With wireless turned on the panel will respond to other Rompa compatible wireless products. With wireless turned off it will ®...
  • Page 22 Stats Pressing the blue stats button will open the stats screen. From the stats screen you can see in real time the amount of button presses that have been made on the panel and the duration the panel has been used for. To return to the main menu press the Red backward button Press the red forward or back buttons to cycle through the other menu options.
  • Page 23 External Switches The panel has 3 external switch inputs each located underneath their associated illuminated push button. To connect the external switch simply plug into the ¼”/6.35mm jack and remove when finished (external switches without a ¼”/6.35mm jack may need an adapter fitting). Microphone Input The panel has 2 microphone inputs.
  • Page 24 Equaliser Mirrored – Single Block A single block of light moves up and down the panel in response to sounds detected in the bottom half of the panel. This pattern is mirrored in the top half of the panel. Sound Ladder A row or rung of the ladder is illuminated each time a sound is detected.
  • Page 25 8 of the panel’s patterns. Other Wireless Products Selecting a colour changes all the LEDs in array to the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel or a Rompa wireless controller ®...
  • Page 26: Notes

    NOTES...
  • Page 28 Rompa Limited, Goyt Side Road, ® Chesterfield, S40 2PH customer.service@rompa.com www.rompa.com 24512_160425...
