INSTRUCTIONS–PARTS LIST
READ AND RETAIN FOR REFERENCE

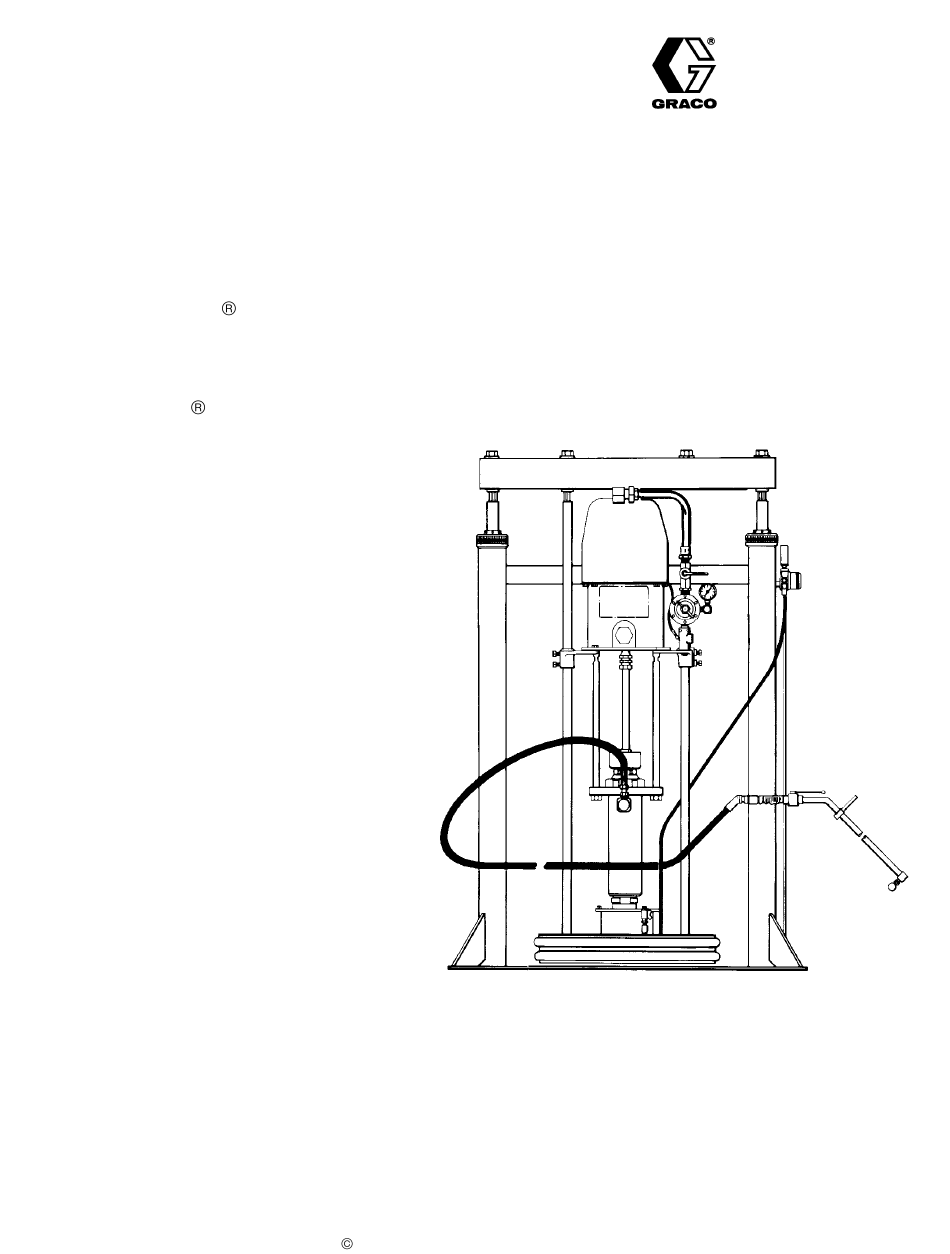

SILICONE SEALER SYSTEMS
Model 222–135, Series A
40:1 Ratio Bulldog
4000 psi (276 bar) MAXIMUM WORKING PRESSURE
Model 222–136, Series A
55:1 Ratio King
Pump
4950 psi (340 bar) MAXIMUM WORKING PRESSURE
CONTENTS
Warnings
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical Installation
. . . . . . . . . . . . . . . . . . . . .
System Installation
. . . . . . . . . . . . . . . . . . . . .
Operation–Service
. . . . . . . . . . . . . . . . . . . . .
Parts Drawing and Parts List
For Dispensing Valve & Wand
For Silicone Sealer Systems
Accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . .
How to Order Replacement Parts Back Cover
Technical Data
. . . . . . . . . . . . . . . .
Warranty
. . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1444
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
Pump
2, 3
4
5
5
. . . . . . . . . .
5
. . . . . . . . . . .
6
7
Back Cover
Back Cover
COPYRIGHT 1988, GRACO INC.
307–905
Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Graco A Series

Summary of Contents for Graco A Series

  • Page 1 ....Back Cover Warranty ..... Back Cover GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1444 COPYRIGHT 1988, GRACO INC.
  • Page 2 SAFETY WARNINGS FLUID UNDER HIGH PRESSURE CAN CAUSE SERIOUS INJURY. FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS. Read and understand all instruction manuals before operating equipment. FLUID INJECTION HAZARD General Safety Nozzle Safety This equipment generates very high fluid pressure. Fluid emitted under Use extreme caution when cleaning or changing nozzles.
  • Page 3 Do not use fluids or solvents which are not compatible use, the high pressure fluid emitted from it can cause a fluid injection with the inner tube and cover of the hose. DO NOT expose Graco hose injury or other serious bodily injury or property damage.
  • Page 4 TYPICAL INSTALLATION DRAWING Pump Runaway Valve Main Air Line Air Line Lubricator Bleed–Type Master Air Valve Bleed–Type Master Air Valve Fluid Drain Valve Pump Air Regulator Air Control Kit (Includes C, D, & E) Air Manifold Fluid Hose Air Line Filter Dispensing Valve 4 307905A...
  • Page 5 Install an air line lubricator (B) for automatic air mo- For assistance in designing a system to suit your needs, tor lubrication. contact your Graco representative. Position the ram/pump assembly on the truck so that the The pump air control kit (3), which is mounted on the ram and pump air controls are easily accessible.
  • Page 6 PARTS DRAWING AND PARTS LIST Model 222–135 Model 222–136 40:1 Ratio Bulldog Silicone Sealer System 55:1 Ratio King Silicone Sealer System Includes items 1 to 33 Includes items 1 to 33 Ref 5 PART NO. DESCRIPTION PART NO. DESCRIPTION 222–137 PUMP &...
  • Page 7 ACCESSORIES Accessories must be purchased separately. Use only GENUINE GRACO PARTS AND ACCESSORIES. GROUNDED AIR SUPPLY HOSE, buna–N GROUNDING CLAMP 103–538 175 psi (12.25 bar) MAXIMUM WORKING PRESSURE 0.75 in. (19 mm) ID, coupled 3/4 npt(mbe) GROUND WIRE 208–950 25 Ft (7.6 m) length.
  • Page 8 Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defec- tive.

This manual is also suitable for:

222-135222-136
