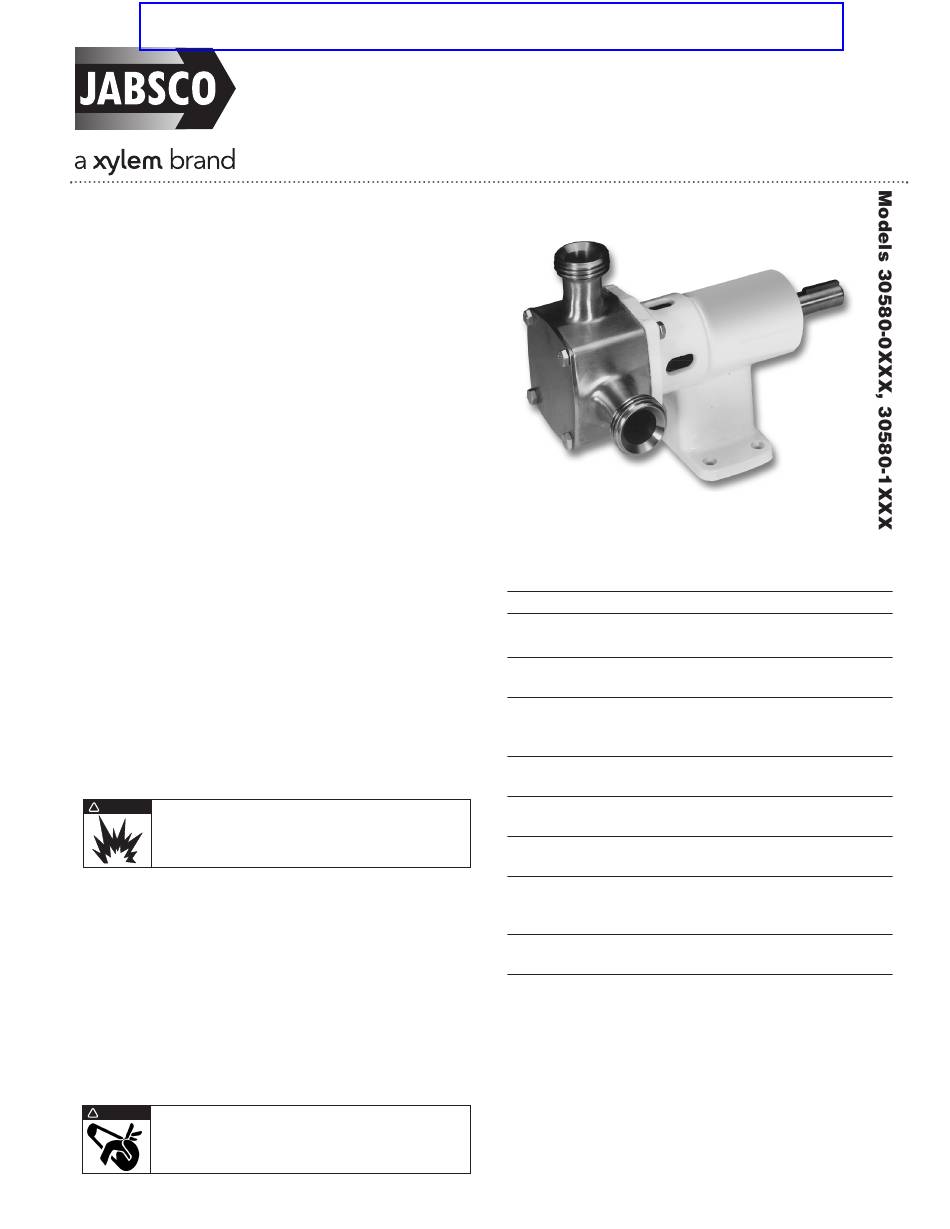

Xylem JABSCO 30580-1102 Quick Installation Instructions

www.PumpAgents.com - Click here for Pricing/Ordering for Pumps and Parts
SELF-PRIMING PUMPS
FEATURES
Pump Type: Pedestal Pump
Body: 316 Stainless Steel
Impeller: Neoprene or EPDM
Shaft Seal: Mechanical; Carbon-on-Ceramic or
Tungsten Carbide; Nitrile
Ports: 2" ACME Threads with Bevel Seat
or Clamp Type
Shaft: 316 Stainless Steel
Weight: 31.0 lb (14.1 kg) Approx.
APPLICATIONS
DAIRY: Transfer and processing of raw milk, cream, milk
whey, buttermilk, condensed milk.
FOODS: Processing of eggs, sugar liquors, brines,
catsup, chocolate, glaze, gelatin, honey, jams, jellies,
mayonnaise, molasses, mustard, pickle relish, vinegar,
water, yeast slurries, syrups, liquids containing solids in
suspension such as chopped tomatoes, nuts, peanut
butter.
BEVERAGE: Circulating and transferring alcohols,
beers, brewery slop, cider, distillery wort, extracts,
flavors, juice, mash, soft drink syrups, wines.
PHARMACEUTICAL: Moving medicines, cosmetics,
process chemicals, lotions, preparations, filtering
solutions, used as a filling line supply pump.
WARNING
!
Explosion hazard. Do not pump gasoline, solvents,
thinners or other flammable liquids. To do so can
cause an explosion resulting in injury or death.
OPERATING INSTRUCTIONS
1. INSTALLATION – Pump may be mounted in any
position. The rotation of the pump shaft determines
the location of the pump's intake and discharge
ports. (Refer to dimensional drawing.) Pump is
normally assembled at factory for clockwise rotation
looking at end cover. If counterclockwise rotation is
desired, follow steps 1 and 2 of disassembly and
step 9 of assembly instructions to change direction
of impeller blade deflection under cam.
WARNING
!
Injury hazard. Exposed pulleys and belts can
cause injury. Install shield around pulleys and
belts. Stay clear while machinery is operating.
Jabsco Pumps 30580-1102
VARIATIONS AVAILABLE
Model
30580-0005
30580-0015
30580-0105
30580-0115
30580-1005
30580-1015
30580-1105
30580-1115
2. DRIVE – Belt or direct with flexible coupling.
Belt Drive: Overtight belt load will reduce pump
bearing life.
Direct Drive: Clearance should be left between
drive shaft and pump shaft when installing coupling.
Always mount and align pump and drive shaft before
tightening the coupling set screw.
If pulley or coupling must be pressed on shaft,
remove end cover and impeller to support shaft from
MODELS 30580-0XXX
Variations
Standard Pressure, Neoprene
Impeller, Carbon Seal, ACME Ports
High Pressure, Neoprene Impeller,
Carbon Seal, ACME Ports
Standard Pressure, Neoprene
Impeller, Tungsten Carbide Seal,
ACME Ports
High Pressure, Neoprene Impeller,
Tungsten Carbide Seal, ACME Ports
Standard Pressure, Neoprene
Impeller, Carbon Seal, Clamp Ports
High Pressure, Neoprene Impeller,
Carbon Seal, Clamp Ports
Standard Pressure, Neoprene
Impeller, Tungsten Carbide Seal,
Clamp Ports
High Pressure, Neoprene Impeller,
Tungsten Carbide Seal, Clamp Ports
30580-1XXX
