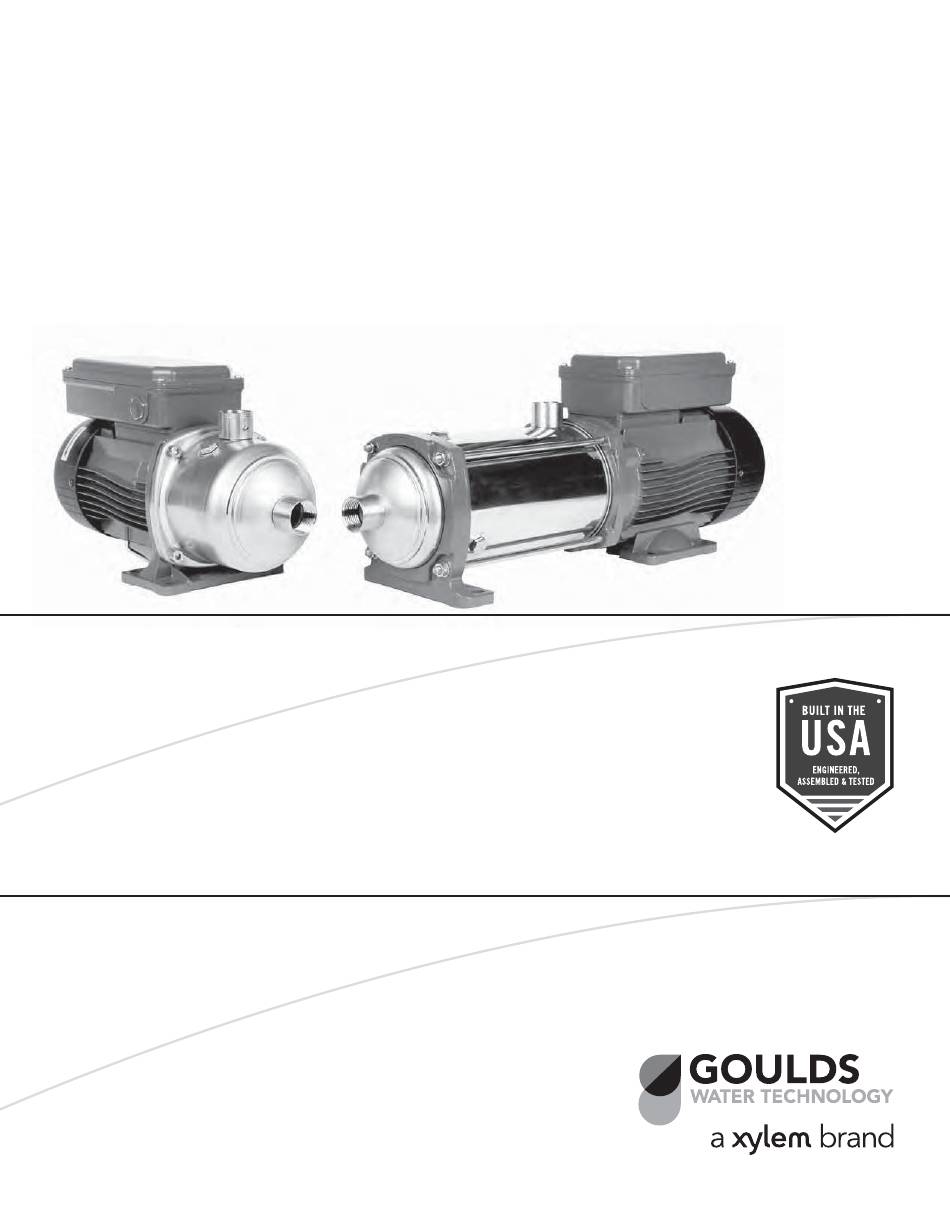

- Page 1 TECHNICAL BROCHURE BeHM R9 e-HM ™ 60 Hz TECHNICAL MANUAL THREADED HORIZONTAL MULTISTAGE CENTRIFUGAL ELECTRIC PUMPS...
-
Page 2: Table Of Contents
Goulds Water Technology Commercial Water CONTENTS Rating Plate ..................2 e-HM Hydraulic Coverage Curve . -
Page 3: E-Hm Hydraulic Coverage Curve
Goulds Water Technology Commercial Water e-HM™ Series Hydraulic Coverage Curve METERS FEET 3500 RPM 10HM 15HM 22HM Flow (GPM) PAGE 3... - Page 4 Goulds Water Technology Commercial Water e-HM™ SERIES lica io s Be e s a d I dus ry Whether you re in the mar et for industry speci c applications, building services, or residential applications, the e-HM is designed to meet your water needs. Customizable options mean you get exactly the right pump for your application, exactly when you need it.
-
Page 5: General Introduction
Goulds Water Technology Commercial Water e-HM™ SERIES GENERAL INTRODUCTION Our newly redesigned horizontal multi-stage high pressure centrifugal pump offers outstanding ef ciencies. The high- ef ciency motor coupled with an innovative hydraulic design, NPT threaded inlet and outlet connections, and broad coverage provides exible options for a variety of applications. -
Page 6: General Characteristics
Goulds Water Technology Commercial Water e-HM™ SERIES GENERAL CHARACTERISTICS 1HM, 3HM 10HM, 15HM, 22HM 2-6 Stages 7+ stages 2-5 Stages 7+ stages All Stages t (F) t (F) t (F) t (F) t (F) ELECTRIC PUMP NOISE The table shows the mean sound pressure ( p) measured as per POWER NOISE Curve A (Standard ISO 1680). - Page 7 Goulds Water Technology Commercial Water 1HM, 3HM PRESSURE AND TEMPERATURE LIMITS 7+ Stages - 7+ Stages - QQE, QQV BQE, BQV 2-6 Stages - BQE, BQV, 2-6 Stages - BVE QQE, QQV Temperature (ºF) 5HM PRESSURE AND TEMPERATURE LIMITS 6+ Stages - 6+ Stages - QQE, QQV BQE, BQV 2-5 Stages -...
- Page 8 Goulds Water Technology Commercial Water e-HM™ SERIES Hig ef ciency MARKETS horizontal B I DING SER ICES. multistage pump IND STR . APPLICATIONS Pressure boosting and water supply systems. Washing and cleaning industry including vehicles washing. Circulation of hot and cold liquids (like water, water and glycol) for heating, cooling and conditioning systems.
- Page 9 Goulds Water Technology Commercial Water e-HM™ SERIES GENERAL CHARACTERISTICS Compact Sleeve HM Series 10HM 15HM 22HM Nominal Flow ( GPM ) 3 - 12 5-23 10 - 45 15 - 75 25 - 127 30 - 150 2 - 18 2 - 14 2 - 12 1 - 8...
-
Page 10: E-Hm Identi Cation Code
Goulds Water Technology Commercial Water e-HM PRODUCT LINE NUMBERING SYSTEM FOR 1 – 22HM PUMPS The various versions of the e-HM line are identi ed by a product code number on the pump label. This number is also the catalog number for the pump. The meaning of each digit in the product code number is shown below. Note: Not all combinations are possible. -
Page 11: Hm Models (Compact Design), Cross Section And Main Components
Goulds Water Technology Commercial Water MODEL 1, 3, 5 HM..N SERIES – MAJOR COMPONENTS (COMPACT DESIGN) TABLE OF MATERIALS HM..N SERIES REFERENCE STANDARDS REFRENCE NAME MATERIAL NUMBER EUROPE Pump body Stainless steel AISI 316 EN 10088-1-X2CrNiMo17-12-2 (1.4404) Impeller Stainless steel AISI 316 EN 10088-1-X2CrNiMo17-12-2 (1.4404) Diffuser... -
Page 12: Hm Models (Sleeve Design), Cross Section And Main Components
Goulds Water Technology Commercial Water MODEL 1, 3, 5, 10, 15, 22 HM..N SERIES – MAJOR COMPONENTS (SLEEVE DESIGN) TABLE OF MATERIALS HM..N SERIES REFERENCE STANDARDS REFRENCE NAME MATERIAL NUMBER EUROPE Head Stainless steel AISI 316 EN 10088-1-X2CrNiMo17-12-2 (1.4404) Impeller Stainless steel AISI 316 EN 10088-1-X2CrNiMo17-12-2 (1.4404) -
Page 13: E-Hm Mechanical Seals
Goulds Water Technology Commercial Water e-HM™ SERIES MECHANICAL SEALS LIST OF MATERIALS Part Number Components 4 and 5 Rotory Face Stationary Face Elastomers Hardware B - Carbon E - EPDM (EPR) All 316 SS Materials Q - Sil Carbide - iton - Ceramic PRESSURE AND TEMPERATURES LIMITS 1HM, 3HM... -
Page 14: Motor Data
Goulds Water Technology Commercial Water MOTOR DATA 3500 RPM, 60Hz, Lowara Motors Volts Enclosure FL Amps SF Amps Frame Size Motor Flange Type GWT P/N TEFC / IP55 8.07 COMPACT 1-3-5 EHM 107236000 COMPACT 1-3-5 EHM 107236040 TEFC / IP55 10.3 S EE E 1-3-5 EHM 107236050... -
Page 15: E-Hm 3500 Performance Curves, Dimensions And Weights
Goulds Water Technology Commercial Water 1HM..N SERIES, (2 TO 10 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 1HM02 0.75 3.43 5.51 8.86 13.78 – –... - Page 16 Goulds Water Technology Commercial Water 1HM..N SERIES, (2 TO 10 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø 3Ø TOTAL STAGES PAGE 16...
- Page 17 Goulds Water Technology Commercial Water 1HM..N SERIES, (11 TO 18 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 1HM11 9.09 6.10 9.13 21.57 9.17 4.09 3.94 4.92 4.92...
- Page 18 Goulds Water Technology Commercial Water 1HM..N SERIES, (11 TO 18 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø 3Ø TOTAL STAGES PAGE 18...
- Page 19 Goulds Water Technology Commercial Water 3HM..N SERIES, (2 TO 8 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 3HM02 0.75 3.43 5.51 8.86 13.78 – –...
- Page 20 Goulds Water Technology Commercial Water 3HM..N SERIES, (2 TO 8 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø 3Ø TOTAL STAGES PAGE 20...
- Page 21 Goulds Water Technology Commercial Water 3HM..N SERIES, (9 TO 14 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 3HM09 7.52 6.10 9.13 20.00 7.60 4.09 3.94 4.92 4.92...
- Page 22 Goulds Water Technology Commercial Water 3HM..N SERIES, (9 TO 14 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø TOTAL STAGES 3Ø PAGE 22...
- Page 23 Goulds Water Technology Commercial Water 5HM..N SERIES, (2 TO 7 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 5HM02 0.75 4.09 5.51 8.86 14.45 – –...
- Page 24 Goulds Water Technology Commercial Water 5HM..N SERIES, (2 TO 7 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø 3Ø TOTAL STAGES PAGE 24...
- Page 25 Goulds Water Technology Commercial Water 5HM..N SERIES, (8 TO 12 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 5HM08 8.19 6.85 9.13 22.87 9.09 5.00 4.92 5.91 5.51...
- Page 26 Goulds Water Technology Commercial Water 5HM..N SERIES, (8 TO 12 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø / 3Ø TOTAL STAGES PAGE 26...
- Page 27 Goulds Water Technology Commercial Water 10HM..N SERIES, (1 TO 8 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 10HM01 4.92 9.13 3.54 17.44 4.13 3.94 4.92 4.92 6.1 0.49 0.39 10HM02 4.92 9.13 3.54 17.44...
- Page 28 Goulds Water Technology Commercial Water 10HM..N SERIES, (1 TO 8 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM TOTAL STAGES 1Ø / 3Ø PAGE 28...
- Page 29 Goulds Water Technology Commercial Water 15HM..N SERIES, (1 TO 4 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 15HM01 5.67 6.10 9.13 3.54 18.82 6.06 4.76 3.94 4.92 4.92 6.10 0.49 0.39 15HM01 5.67 6.10 9.13 3.54 18.82 6.06 4.76 3.94 4.92 4.92 6.10 0.49 0.39 15HM02...
- Page 30 Goulds Water Technology Commercial Water 15HM..N SERIES, (1 TO 4 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM TOTAL STAGES 1Ø / 3Ø PAGE 30...
- Page 31 Goulds Water Technology Commercial Water 22HM..N SERIES, (1 TO 3 STAGES) DIMENSIONS AND WEIGHTS AT 60 HZ, 3500 RPM Motor Dimensions (in) Pump Size Frame Max. Working Weight Stages Size Pressure (PSI) (lbs) 22HM01 5.67 6.85 9.13 3.54 20.83 6.93 5.67 4.92 5.91 5.51 6.46 0.49 0.39 22HM02 5.67 7.76 10.00 3.94 22.17 7.72 6.42 5.51 6.69 6.30 7.24 0.59 0.47 22HM03...
- Page 32 Goulds Water Technology Commercial Water 22HM..N SERIES, (1 TO 3 STAGES) OPERATING CHARACTERISTICS AT 60 HZ, 3500 RPM 1Ø / 3Ø TOTAL STAGES PAGE 32...
-
Page 33: Technical Data
Goulds Water Technology Commercial Water TECHNICAL DATA – WATER PROPERTY CHART Speci c Gravity Speci c Volume Weight Vapor Pressure Temp ºF Temp ºC (Cubic ft/lb) (lb/cubic ft) (psi Abs) @ 39.2ºF @ 60ºF @ 68ºF 0.01602 1.000 1.001 1.002 62.42 0.088 0.01602... -
Page 34: Technical Data
Goulds Water Technology Commercial Water TECHNICAL DATA – NPSH NPSH where: The minimum operating values that can be reached at the pump suction end are limited by the onset of is the absolute pressure applied to the free liquid cavitation. surface in the suction tank, expressed in feet of liquid hp is the quotient between the barometric Cavitation is the formation of vapor- lled cavities within... - Page 35 Goulds Water Technology Commercial Water TECHNICAL DATA – COMPATABILITY CHART FOR MATERIALS IN CONTACT WITH MOST COMMONLY USED LIQUIDS 1HM - 22HM Recommended Concentration Temperature Speci c Liquid Elastomers Min/Max ºF Weight (lb/in Seal Water 23/248 • QBEGG Deionized, demineralized -13/230 •...
