Minimum / Maximum Alarm Thermostat.
VDH doc: 080565
Software: ALFA D3-DP
* Function.

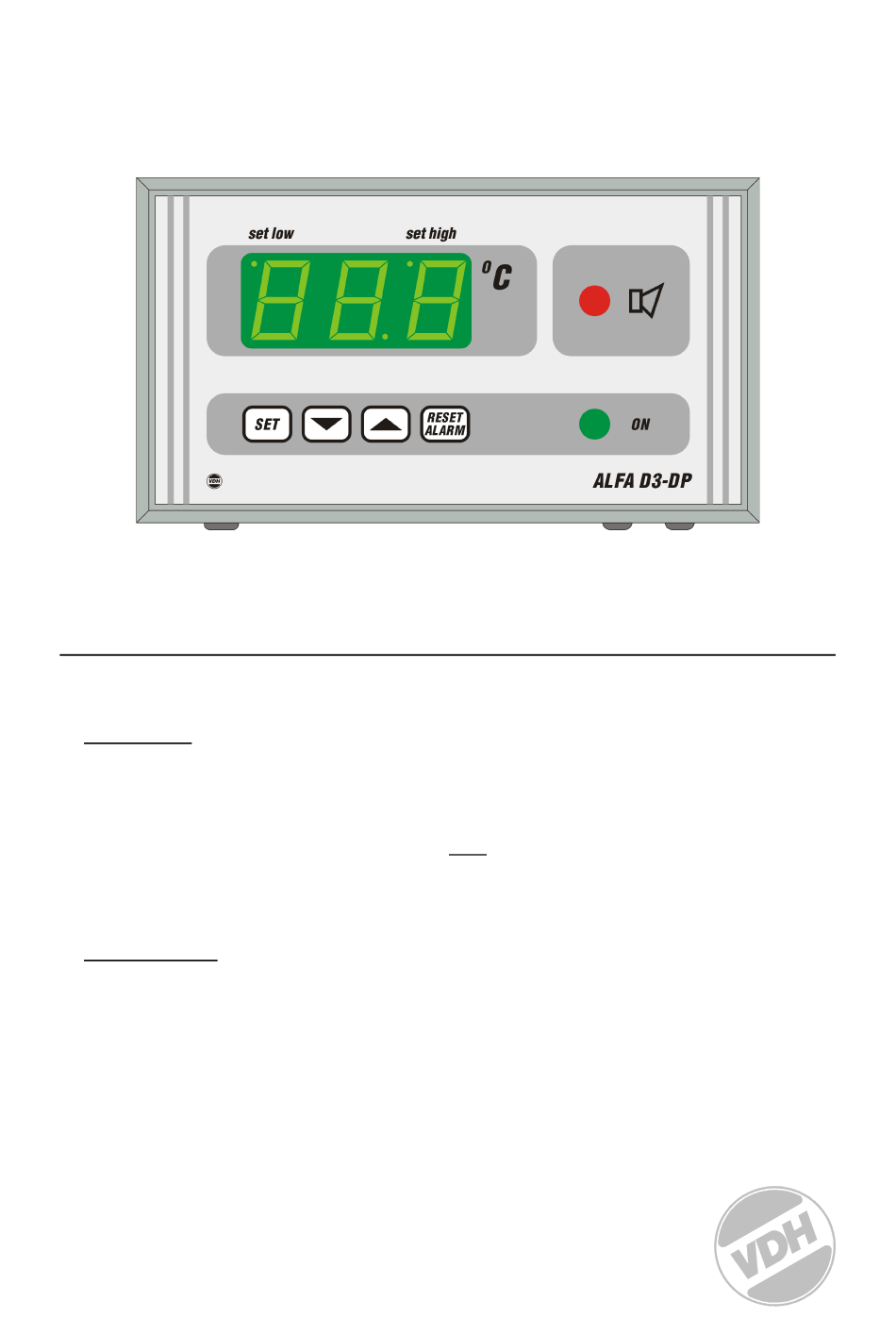

The ALFA(NET) D3-DP is a digital alarm thermostat for wall mounting. The readout is in
tenth degrees Celsius and has large 26 mm displays. The unit has two LED indications with
10 mm LED's one for 'Alarm' (red) and one for 'On' (green) indication.
The thermostat watches the minimum and maximum temperature. To report an Alarm the
ALFA(NET) D3-DP has one relay. The ALFANET D3-DP is provided with an RS 485 Network
connection, so it can be read out and adjusted on the Alfanet.
* Installation.
On the topside op the ALFA(NET) D3 DP is shown how the sensor, power supply and relay
are connected.
A few seconds after connecting the ALFA(NET) D3 DP to the power supply the green LED
'on' lit and the measured temperature appears in the display.
The alarm relay is a multifunction combined minimum and maximum alarm and at alarm the
red LED 'Alarm' will lit.
User Manual
ALFA(NET) D3-DP 12Vdc
Version v1.0
File: Do080563.wpd
1
Date: 28-05-2008
Range: see sticker pro 0,1C
Advertisement
Related Manuals for VDH ALFA NET D3-DP 12Vdc
Summary of Contents for VDH ALFA NET D3-DP 12Vdc
- Page 1 User Manual ALFA(NET) D3-DP 12Vdc Minimum / Maximum Alarm Thermostat. VDH doc: 080565 Version v1.0 Date: 28-05-2008 Software: ALFA D3-DP File: Do080563.wpd Range: see sticker pro 0,1C * Function. The ALFA(NET) D3-DP is a digital alarm thermostat for wall mounting. The readout is in tenth degrees Celsius and has large 26 mm displays.
- Page 2 * Control. The ALFA(NET) D3-DP alarm thermostat can by controlled by four push buttons on the front; - view / change set point. - increase set point. DOWN - decrease set point. RESET ALARM - reset an alarm. * Viewing set points. Viewing set point of maximum alarm: By pushing the SET key first and then the UP key together the maximum alarm set point appears in the display.
- Page 3 * Setting internal parameters. Next to the adjustment of the set point, some other internal settings are possible, sensor- offset, relay function and alarm settings. By pushing the DOWN key more than 10 seconds, you enter the 'internal programming menu'. In the left display the upper and lower segments are blinking. With the UP and DOWN keys the required parameter can be selected (see table for the parameters).
- Page 4 * Function diagram. * Adjustment sensor. The sensor can be adjusted by using the Sensor Offset (parameter 04). Indicates the ALFA(NET) D3 DP e.g. 2.1 C to much, the Sensor Offset has to de decreased with 2.1 C. * Technical details.
- Page 5 * Connections. Alfa D3-DP connections: Alfanet D3-DP connections:...
- Page 6 * Dimensions.
- Page 7 * Adresse. VDH Products BV Tel: +31 (0)50 - 30 28 900 Produktieweg 1 Fax: +31 (0)50 - 30 28 980 9301 ZR Roden Email: info@vdhproducts.nl The Netherlands Internet: www.vdhproducts.nl...
