1 Function

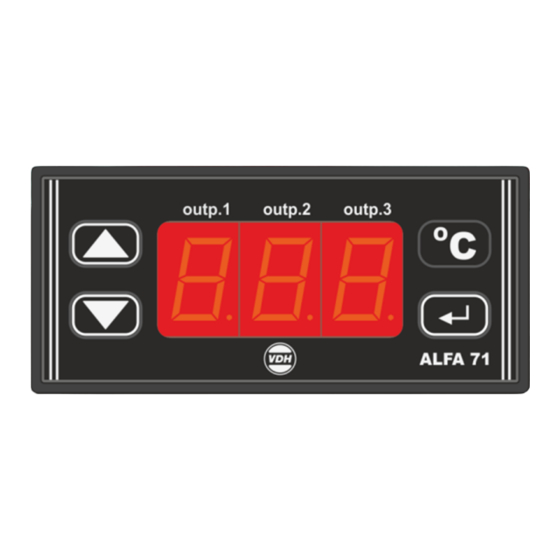

The ALFA(NET) 71 PI is a panel mount thermostat-unit,
with an analog 0-10Vdc PI-output. The thermostat has also three relays outputs selectable for
function cooling, heating or alarm. The temperature is being measured by an SM811 2-Wire
temperature sensor.
The ALFANET 71 PI is provided with an RS-485 network connection and can be readout or set by an
PC with the ALFANET program connected thru an ALFANET PC-Interface.

2 Installation

On the connection diagram of the ALFA(NET) 71 PI is shown how the sensors, analogue output,
power supply, relays and optional network are to be connected. After connecting the ALFA(NET) 71
PI to the power supply, a self-test function is started. As this test is finished, the measured
temperature appears in the display.

3 Control

The ALFA(NET) 71 PI thermostat can be controlled by four pushbutton on the front. These keys are;
SET
- view / change set value and reset alarm.
∏ UP
- increase set value.
π DOWN
- decrease set value.
°C
- hidden relay status key.
Description:
Alfa(net) 71 PI -10/+90°C
Type:
Manual
File:
Do151043 ALFANET 71 PI -10_+90°C
Flash V11 EN.docx
VDH Products BV
Manual
-10/+90°C
Pages:
By:
Signed:
Software
ALFA(NET) 71 PI
8
Doc.no:
BVDB
Doc.Version:
Date:
151121
SW.Version
151043
1.1
22-01-2016
V3.00
