This Owner's Manual is provided and hosted by Appliance Factory Parts.

ASKO TLS752XXLRR

Owner's Manual

Shop genuine replacement parts for ASKO

TLS752XXLRR

Find Your ASKO Dryer Parts - Select From 74 Models

-------- Manual continues below part list --------

Need help?

Do you have a question about the TLS752XXLRR and is the answer not in the manual?

Questions and answers

Summary of Contents for Asko TLS752XXLRR

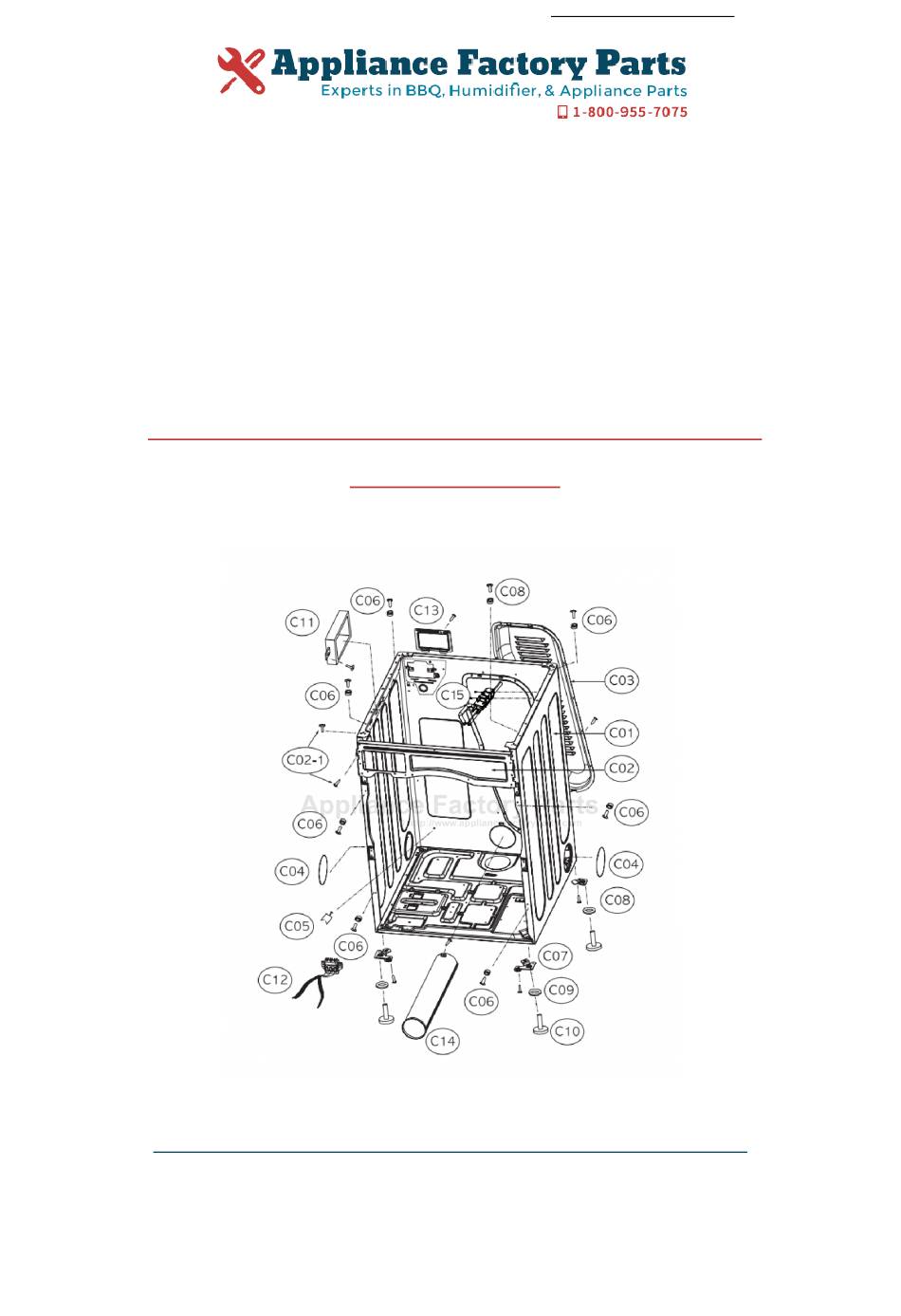

Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. ASKO TLS752XXLRR Owner's Manual Shop genuine replacement parts for ASKO TLS752XXLRR Find Your ASKO Dryer Parts - Select From 74 Models -------- Manual continues below part list --------...
Page 2 Available Replacement Parts for ASKO TLS752XXLRR 3611886200 FAN IMPELLER...
Page 3 These are the hallmarks for all of our products and this is why they are so highly appreciated all over the world. To get the most out of your new ASKO product, we recommend that you read the installation and operating instructions before using the machine.
Page 4 Customer Care Center 1-800-898-1879 www.askousa.com...
Page 5 Important Safety Instructions For Gas Dryer Caution! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury, or death. A qualified service person or company must perform installation and service of this appliance.
Page 6 Contents My dryer doesn’t heat Important safety instruction for There are greasy spots on my gas dryer clothes Before using your machine for the My dryer displayed an error code. first time There is lint on my clothes Important safety instructions Grounding instruction There is static in my clothes Interrupting a program...
Page 7 Befere Using Your Machine For The First Time Do not tumble dry Certain materials are not suitable for tumble drying. Always check and follow the Instructions on each item’s laundry label. You can find more information in the “Advice and tips before you tumble dry” chapter.
Page 8 The interior of the machine should be death when using this appliance, cleaned periodically by an authorized please follow all instructions and ASKO service agent. information, including those in this • Do not place items exposed to cooking manual and instructions provided oils in your dryer.
Page 9 Important Safety Instructions Caution! Note! This appliance must be properly grounded. This manual does not cover every possible condition and situation that may occur. Use common sense and caution when Grounding instruction installing, operating, and maintaining any A) Grounding instructions for a appliance.
Page 10 Important Safety Instructions Caution! California Safe Drinking Water and Toxic Enforcement Act This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.
Page 11 Child Safety Caution! Do not allow children to play with the Tumble dryer. The tumble dryer does not start automatically when the door closes (for example, if a child closes the door from inside). The tumble dryer has a door lock, which allows the door to be opened from the inside.
Page 12 Description Of The Tumble Dryer 1. Top plate 2. Program panel 3. Front cabinet 4. Lint filter holder 5. Fan (behind the front cabinet) 6. Adjustable legs 7. Glass door 8. Outer door Accessories Dryer Rack Pedestal Purchased Separately * Design of pedestal is subject to change without manufactures notice.
Page 13 Front Panel 1. Main power button 4. Setting buttons 2. Program selector 5. Option buttons 3. Display window 6. Start/Stop button Customer Care Center 1-800-898-1879 www.askousa.com...
Page 14 Advice And Tips Before You Tumble Dry Here are some tips that may help you Do not tumble dry before you begin tumble drying. • Materials labeled “Do not dry near heat”. • Garments that have been dry-cleaned at Have the clothes been through a home.
Page 15 Operating Instructions Caution! 1. Sensor Dry program Sensor Dry programs allow you to match To reduce the risk of electric shock or injury, the program to the load you are drying. read the “Important Safety Instructions” Each program dries certain fabrics at the selection before operating this appliance.
Page 16 Operating Instructions Sensor Dry Preset Program chart Steam Breeze This program is used for removing wrinkles Sensor Dry Programs Time Temperature and odors from items such as clothes Load Type (Minutes) packed in a suitcase or items wrinkled from Bulky Items High being left in the dryer too long “STEAM (Bulky, Heavy weight)
Page 17 Operating Instructions Air Dry This program is used for items that require drying without heat such as rubber, plastic and heat-sensitive fabrics. When using Air Dry This chart shows examples of items that can be dried using Air Dry. Time Type of Load (Minutes) Foam rubber-pillows, padded bras,...
Page 18 Operating Instructions Programmed setting and options guide Rack dry More Time Cycles Dry Sensor Temperature Anti crease Damp signal Less Time Delay start Default Normal High Bulky items Select Default Normal High Towels Select Default Normal Mid. High Everyday wear Select Default Normal...
Page 19 Operating Instructions Caution! Press the Start button Remaining drying time If the lint filter becomes clogged, the The remaining drying time will be machine’s automatic overheating cut-off shown on the display. For example, 1:35 may be triggered. means it will take approximately 1 hour and 35 minutes for the load to dry.
Page 20 Selecting Settings manually by pressing the Dry Time button between 20 to 60 minutes. Signal The Signal controls the volume of the beep that is made at the end of the cycle. Press Signal to adjust the sound level or turn off the signal.
Page 21 Selecting Options 3. Make sure the dry rack is setting evenly on the front and rear of the drum inside the machine. Rack Dry Rack Dry is designed to use for items which are not suitable for tumble drying such as Don’t use the rack for normal tumble drying.
Page 22 Selecting Options Note! Note! Time change is available only with Manual Remember to press the Start/Stop button to dry, Dry Time and Rack dry programs. start the program. Damp Signal Anti Static When you select the Damp Signal option, This option injects steam late in the drying a beep will alert you when your load is just cycle to reduce the static electricity caused damp enough for ironing or pressing.
Page 23 Care And Maintenance Instruction Cleaning the lint filter Cleaning the door and its opening Clean the filter after each use and check it 1. Wipe the door before use. Not cleaning or emptying the opening. filter will increase drying time and energy Accumulations consumption, potentially shortening the of lint or dirt may...
Page 24 Troubleshooting Guide Save time and money! Review the charts on the following pages first and you may not need to call for service. 1. Problem: My dryer won’t start. Question What to Do • Is the dryer plugged in? Confirm that the dryer’s plug is securely and completely pushed into the laundry room’s power outlet.
Page 25 Troubleshooting Guide 5. Problem: There is lint on my clothes. Question What to Do • Is your lint filter full? Please refer to the manual section on cleaning the lint filter, and please confirm that the lint filter is clean. It is important that the lint filter is clean before each new load of laundry.
Page 26 Troubleshooting Guide 9. Problem: It takes too long for my clothes to dry. Question What to Do • Did you properly sort your Separate heavy weight items from light weight items when creating loads of laundry? loads. • Are you drying large loads of Heavy fabrics take longer to dry because they tend to retain more heavy fabrics? moisture.
Page 27 Troubleshooting Guide 12. Problem : Steam Question What to Do • Water drips from nozzle This is normal condensation. The dripping will stop soon.. when Steam cycle starts. • Steam doesn’t generate but Check if the cord of dryer is connected. If the steam isn’t generated even no error code is shown with the dryer plugged in, call the service center.
Page 28 Installation Instructions Caution! Step 1. Positioning the tumble dryer Risk of Fire Choose a location with a solid floor for your Dryer installation must be performed by a dryer. qualified installer. Place the dryer in the desired location and • Install the dryer according to the please make sure that it has the required manufacturer’s instructions and local...
Page 29 Installation Instructions Minimum clearances on top, rear, and sides of the unit as show below are required. Those required minimum clearances are set forth in the picture below. Please keep the following instructions in mind when installing in a closet or recessed area : •...
Page 30 Installation Instructions Once in position, adjust the leveling legs of the dryer until it is level from left to right and front to back. Be sure to tighten the leveling leg lock nuts against the bottom of the dryer. The leveling legs must remain firmly on the floor and the dryer should not rock.
Page 31 Installation Instructions Step 2. Connecting the exhaust system Caution! • To reduce the risk of fire this appliance • Foil-type flexible ducts shall comply MUST BE EXHAUSTED OUTDOORS. with the outline for dryer transition duct, • The appliance shall not be exhausted Subject UL 2158A, shall be used.
Page 32 Installation Instructions Alternate exhaust directions 1. Insert the 90° Elbow (4”) into the end of the exhaust duct on the rear panel in the correct direction. * Duct materials are not supplied with unit. 2. Connect the straight exhaust duct into the end of the 90°...
Page 33 Installation Instructions 2. Remove the shipping cap from the gas Step 3. Connection of gas supply connection at the back of the dryer. (Gas dryer only). In addition to the following, Make sure that you don’t damage the please refer to manual section on Gas threads of the gas connection pipe when Requirements and Instructions.
Page 34 Installation Instructions • Securely tighten all electrical Step 4. Electrical plug connections connections • See the installation instructions for The following instructions apply to complete instructions. U.S. electrical dryer model: • Failure to do so may result in fire or The following steps are several warnings electrical shock.
Page 35 Installation Instructions Step 7. Dryer airflow Step 8. Connecting the inlet water hose for steam features Effective dryer operation requires appropriate dryer airflow. The adequacy of the airflow can be Caution! measured by evaluating the static pressure. The dryer must be connected to the cold Static pressure in the exhaust duct can be water faucet using the new inlet hose.
Page 36 Installation Instructions 6. Make sure the dryer has adequate Step 9. Additional instructions access to outside fresh air to ensure for installation of your dryer in a proper operation. The opening for manufactured or mobile home outside fresh air must be at least 25” The following instructions are applicable to (163 cm installations of the dryer in a manufactured...
Page 37 Installation Instructions where lengths are less than 20 feet Gas requirements (6.1m). Larger tubing should be used Following are some important instructions for lengths in excess of 20 feet (6.1m). It and informations concerning the is also important that you use pipe joint requirements for the gas supply and service compound that is insoluble in LP gas.
Page 38 Installation Instructions Gas connections Commonwealth of Massachusetts installation instructions Caution! Your dryer must be installed by a licensed • Connect the dryer to the type of gas plumber or gas fitter. shown on the data plate. A “T” handle manual gas valve must be •...
Page 39 Installation Instructions plug. Electrical requirements for dryers Electric models Caution! • If a power cord is not used and the To help prevent fire, electric shock, serious electric dryer is to be permanently injury or death, the wiring and grounding wired, the dryer must be connected to must conform to the latest edition of the a permanent grounded metal wiring...
Page 40 Installation Instructions Electrical connections US models • The power cord is not provided with U.S. Before operating or testing, follow all electric model dryers. grounding instructions in the Grounding • The type of power cord (pigtail) and section. gauge of wire must conform to local An individual branch (or separate) circuit codes and with instructions mentioned serving only your dryer is recommended.
Page 41 Electrical Requirements Review the following options to determine the appropriate electrical connection for your Home: Use the instructions in this section if your Use the instructions in this section if your home has a 4-wire receptacle (NEMA type home has a 3-wire receptacle (NEMA type 14-30R) and you will be using a U.L.
Page 42 Electrical Requirements Then, put the hooked shape end of the 4-wire connection: Direct wire wire under the screw of the terminal block (hooked end facing rightward) and pinch Caution! the hook together and tighten the screw securely. Grounding through the neutral conductor is 1.
Page 43 Electrical Requirements Then, put the hooked shape end of the 3-wire connection : Direct wire wire under the screw of the terminal block (hooked end facing rightward) and pinch Caution! the hook together and tighten the screw securely. Grounding through the neutral conductor is prohibited for 1.
Page 44 Electrical Requirements 1. Connect the neutral wire (white) of Option 1: 4-wire connection with a power cord to the center terminal block power supply cord screw. • lf your local codes or ordinances do not 2. Connect the red and black wires to the allow the use of a 3-wire connection, left and right terminal block screws.
Page 45 Electrical Requirements Option 2: 3-Wire connection with a Option 3: Optional 3-wire power supply cord connection • lf your local codes or ordinances permit • If your local codes the connection of a frame-grounding or ordinances conductor to the neutral wire, use these do not allow the instructions.
Page 46 Exhaust Requirements Following are important instructions and information concerning the exhaust requirements for your dryer. Caution! To reduce the risk of fire, electric shock, or injury to person, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building.
Page 47 User-Maintenance Instructions 2. Before one year of use, when drying Exhaust requirements and performance has become unsatisfactory, instructions: please examine and clean the exhaust 1. Venting materials are not provided duct for better drying performance. with the dryer and you should obtain 3.
Page 48 User-Maintenance Instructions c). After the residue has been removed, Cleaning the lint screen rinse screen with hot water. 1. Clean the lint filter once either before d). After drying the lint screen with a or after drying each load. Always make clean towel, firmly replace the lint sure the lint filter is clean before starting screen in your dryer.
Page 49 Reversing The Door 6. Secure the hinge using the bolts you Door hanging removed in step 1. The tumble dryer comes with the door hinged on the right. However, it is possible to change the door to be hinged on the left. Following these instructions: 1.
Page 50 Technical Information Technical data 27” (68.6 cm) x 32 (81.2 cm) x 40 3/8” (102.5 cm) x 52 (132 cm) Dimension (inches) W x D x H x Depth with door open Unit Weight (lb.) 129 lb. (58.5 kg) Cylinder volume: 7.3 cu.ft.
Page 51 Service And Guarantee Asko Appliances Inc. will not pay For warranty service, contact our for: Customer Care Center at the number listed below. Service calls to: Before calling for service or contacting 1. Correct the installation of the appliance. Asko Appliances Inc. regarding a warranty 2.
Page 52 For residential installations only Asko Appliances Inc. will pay for: Length of warranty: Two-Year full warranty ASKO replacement parts and/or repair from date of purchase. labor to correct defect in materials or workmanship.
Page 53 Quick Guide Sort your Fabrics • Dry fabrics of the same type together to ensure they dry as evenly as possible. Turn on the main power button Open the door, load the items and then close the door Select a program •...
