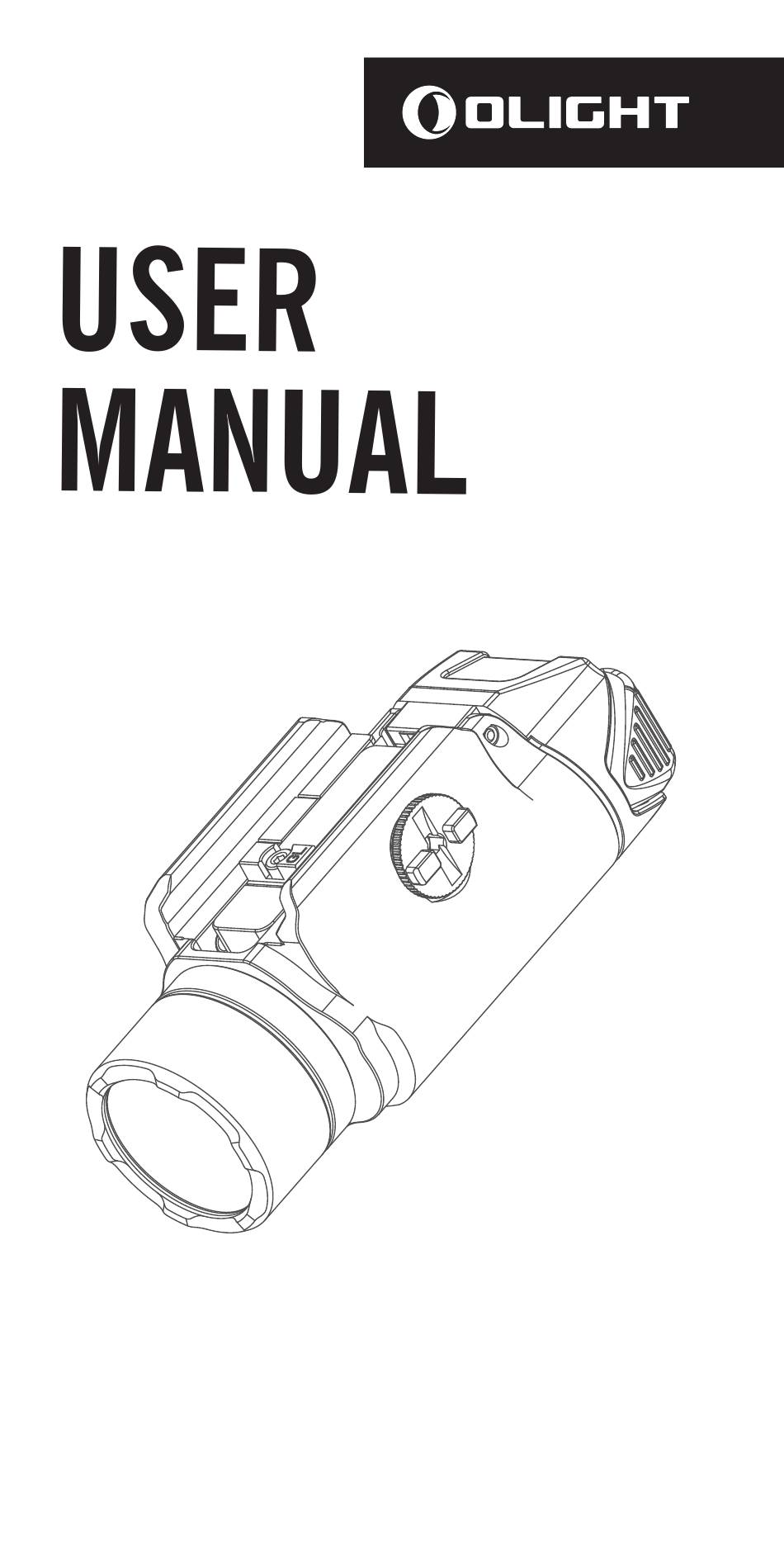

- Page 1 PL-3R VALKYRIE Max 1,500 Lumens WML Built-in 900mAh Lithium Polymer Battery.
- Page 2 10,200cd 205m IPX6 0~40°C 3.3Wh (900m Ah 3.3Wh (900m Ah 3.7V) (L)81 *(W)36.6*(H)32.5mm 107g /3.77oz Rechargeable lithium Rechargeable lithium (L)3.19 *(W)1.44*(H)1.28in polymer battery polymer battery * Above data are tested per ANSI/NEMA FL 1-2019 standard in Olight's labs for reference.
- Page 3 Cable length 0.5m USB-A 5V 1A Input Output CC&CV 4.2V±0.05V 1A About 80min Time to fully charge Figure 1 Charging Red: Charging Green: Charging Completed Figure 2-1 Screw off...
- Page 4 Figure 2-2 Adjust the installation position of the light 1. Push 2. Slide Figure 2-3 Screw on...
- Page 5 Figure 3 Turn the light on/off Press Figure 4-1 Lock >2 sec...
- Page 6 Figure 4-2 Unlock >2 sec Figure 5 Momentary on Press and hold Momentary on...
- Page 7 Figure 6 Change brightness level Double press HIGH Figure 7 Direct access to high brightness Double press HIGH...
- Page 8 Figure 8 Change high brightness level At least 10 times Blinks twice: High 1 Blinks once: High 2 Figure 9 Strobe Press both buttons Strobe...
- Page 9 ( EN ) English Multi-language dictionary, see Table 3. 1. Product specification, see Table 1 and Table 2. 2. Operating instructions as below： 2.1 Charging, see Figure 1. 2.2 Screw off, see Figure 2-1. 2.3 Adjust the installation position of the light, see Figure 2-2. 2.4 Screw on, see Figure 2-3.
- Page 10 2.12 Strobe, see Figure 9. When the two buttons are pressed simultaneously, strobe mode will be activated. The strobe will continue when the button is released. Click any button to turn off the strobe. ( CN ) 简体中文 多语⾔字典，参见 Table 3。 1.
- Page 11 Within 30 days of purchase: Contact the original seller for repair or replacement. Within 2 years of purchase: Contact Olight for repair or replacement. USB magnetic charging cable: One year. This warranty does not cover normal wear and tear, modifications,...
- Page 12 Dongguan Olight E-Commerce Technology Co., Ltd. 4th Floor, Building 4, Kegu Industrial Park, No 6 Zhongnan Road, Changan Town, Dongguan City, Guangdong, China. Made in China CAN ICES-005( B ) / NMB-005( B ) 3.4000.0560 B. 04, 03, 2023...
