Eaton OS306U Manual

ENGLISH
OS306U Motion Sensor Switch (Auto ON/Auto OFF)
VS306U Motion Vacancy Sensor Switch (Manual ON/Auto OFF)
SPECIFICATIONS
• 120V/AC, 60 Hz
• Incandescent/Tungsten/Halogen/LED/Electronic
Low Voltage (ELV) — 600W
• Magnetic Low Voltage — 600VA
• Fluorescent, Compact Fluorescent — 5.0A/600W
• Motor Load — 1/6 HP
• NOTE - A Ground connection is required in the
wallbox where the sensor will be installed
DESCRIPTION
• This Sensor Wall Switch can replace a standard
wall switch in any of the following applications:
• Single location – one Single Pole switch
• Two location – one location is the sensor
and the other location is a standard 3-way
switch
• Two location – replace both 3-Way switches
with sensors
• The OS306U turns ON automatically when a
person enters the room
• The VS306U requires manual activation to turn
ON the lights
• Both OS306U and VS306U will automatically turn
OFF lights after a selectable time delay
• OS306U includes a light level adjustment for
daylight to prevent motion from turning ON the
lights
OPERATION INSTRUCTIONS
Auto ON Sensor – OS306U:
• OS306U will turn on lights automatically when a person enters the room
• Lights will turn OFF automatically when no motion is detected after a selectable time delay
• The selectable time delays are 5 seconds (Test Mode), 5 minutes (factory default), 10 minutes, 20 minutes
and 30 minutes
Manual ON Sensor – VS306U:
• The VS306U must be turned on manually with the ON/OFF button
• Lights will turn OFF automatically when no motion is detected after a selectable time delay
• The selectable time delays are 5 seconds (Test Mode), 5 minutes, 10 minutes, 20 minutes and 30 minutes
(factory default)
• When the lights have turned OFF due to a lack of motion, the lights will turn ON automatically if motion is
detected within 30 seconds
INSTALLATION INSTRUCTIONS
WARNING:
• Turn OFF circuit breaker or remove fuse(s) and verify that power is OFF before wiring
• Never wire any electrical device with power turned ON. Wiring the device with the power ON may
cause permanent damage to the device and void the warranty
• If you are unsure about any part of these instructions, or if the wiring does not match the descriptions
given, you should call a qualified electrician
CAUTION:
• Must be installed and used in accordance with all applicable electrical codes
• If a bare copper or green ground connection is not available in the wallbox, contact a qualified
electrician for installation. Do not install without proper ground connections
• Do not exceed maximum device ratings
• For use ONLY with permanently installed fixtures of these types: Incandescent/Tungsten/Halogen,
Magnetic Low Voltage (MLV), Electronic Low Voltage (ELV), Fluorescent, Compact Fluorescent, LED
• May also be used with motors up to 1/6 HP
• To avoid overheating and possible damage to other equipment, do not use to control receptacles
• Use only #14 or #12 copper wire with these devices
Installing OS306U & VS306U
Refer to the wiring diagrams and install the sensor according to these directions
For single pole applications, wire the sensor switch according to wiring diagram #1 using the wire nuts
provided.

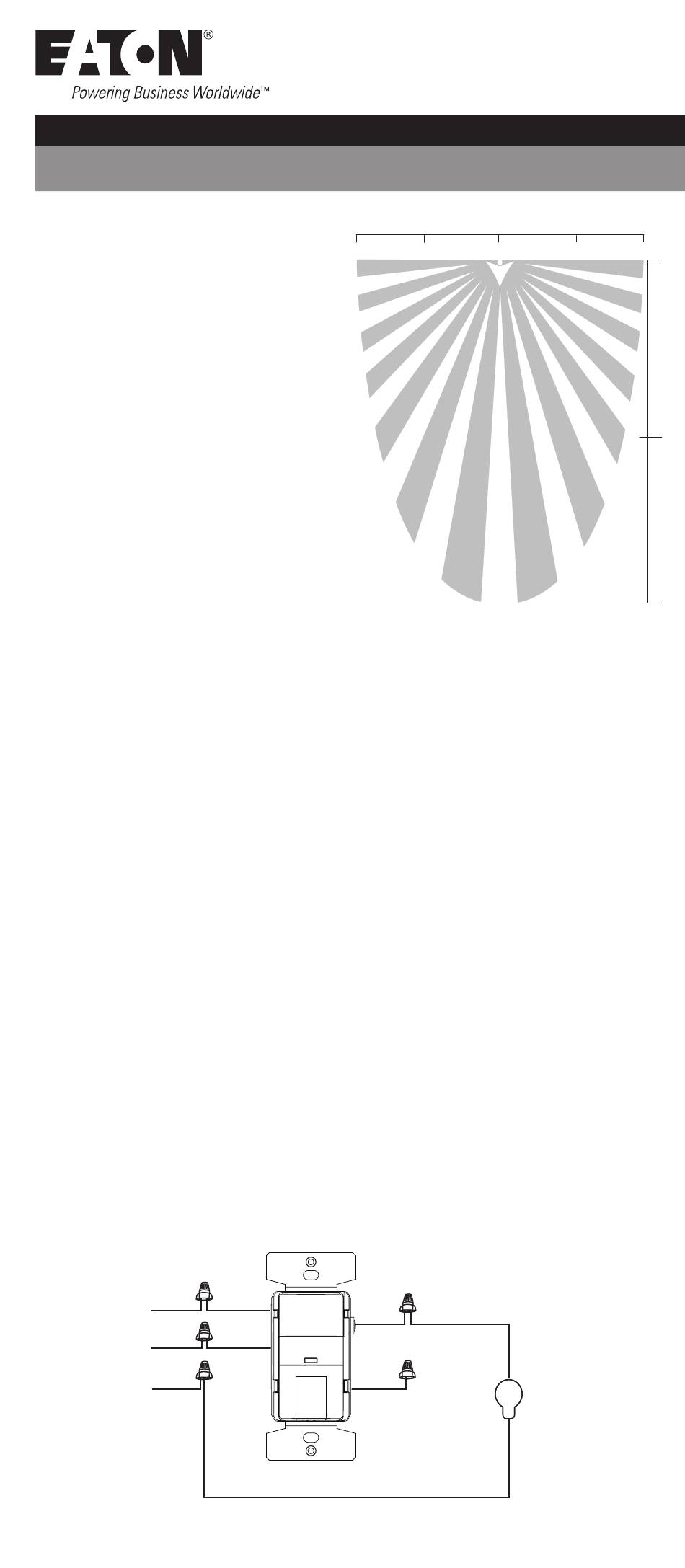

DIAGRAM 1: SENSOR IN ONE LOCATION / SCHÉMA 1: DÉTECTEUR EN UN EMPLACEMENT / DIAGRAMA 1:
SENSOR EN UNA (1) UBICACIÓN
Hot/Phase/Fase
Ground/
Terre/Tierra
Bare/Nu/Desnudo
Neutral/
Neutre/Neutro
White/
Blanc/Blanco
Hot/Phase/Fase
Black/Noir/Negro
Green/Vert/
Verde
OS306U or VS306U sensor/OS306U ou VS306U/
Sensor OS306U ó VS306U
COVERAGE PATTERN
12' 8'
Output
Sortie
Salida
Red/Rouge/Rojo Black/Noir/Negro
3-Way
3-Voies
3-Vias
Blue/Bleu/Azul
Neutral/Neutre/Neutro
White/Blanc/Blanco
8'
0
MAJOR MOTION
450 SQ. FT.
Light Fixture
Luminaire
Lámpara
12'
0
15'
25'
