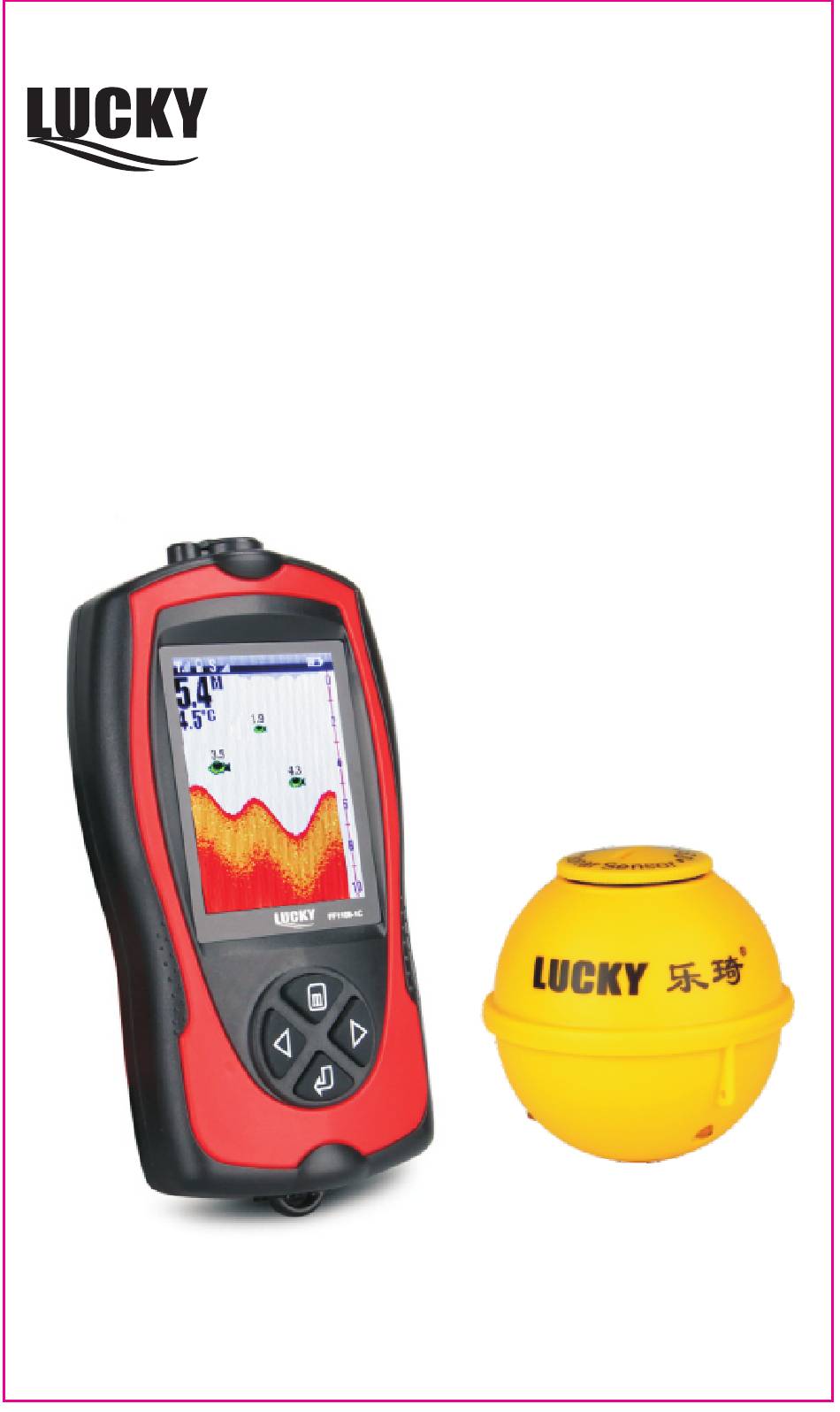

- Page 1 FF1108-CWLA Fish Finder Wireless Mode Operations Manual http://www.goodluckycn.com...
- Page 2 USER MODE USER MODE fig.1 WIRELESS SIMULATION WIRELESS:This user mode allows you to operate the FF1108-CWLA with the wireless sonar sensor. When signal indicator is displayed on the screen, the unit is in Wireless mode. Wireless sonar sensor signal connect indicator...
- Page 3 W-Sensor a. Charging the sensor b. Using the sensor Switch 1 for W-Sensor Working Indicator Charging Port Switch 2 for fish attractive lamp Charging Indicator...
- Page 4 1. Press Switch 1, wireless sensor 2. Press Switch 2, fish attractive will be turned on, and working lamp will be turned on, and fish Indicator will be lit. attractive light will be lit. pic1 pic2 3. Please screw down the lid to prevent water come in.
- Page 5 Underwater conditions vary greatly, so some experience and interpretation is needed to realize all the benefits of the FF1108-CWLA use the picture as a guide to the most common conditions and practice using the FF1108-CWLA over known bottom types.
- Page 6 Powering ON and OFF Press the POWER-MENU key last for 5 seconds to power FF1108-CWLA on. Press and hold the POWER-MENU key until the unit shuts down to power off. Display User Mode Left Arrow Key Right Arrow Key Power/MENU key...
- Page 7 Language— LANGUAGE ENGLISH Press the POWER-MENU key until LANGUAGE appears.The FF1108-CWLA fish finder has two language choice(English,Russian) Brightness BRIGHTNESS fig.1 Press the POWER-MENU key until BRIGHTNESS appears. Use the backlight for night fishing. Select either Off, or On to activate the backlight at the desired level.
- Page 8 ZOOM— ZOOM fig.1 Press the POWER-MENU key until ZOOM appears. Select Auto to magnify the area around the bottom in order to reveal fish and structure close to the bottom that may not be visible during normal operation. When ZOOM is set to Auto, the upper and lower Depth Ranges are automatically adjusted to keep the area above and below the bottom on the display.
- Page 9 Press the POWER-MENU key until FISH ALARM appears. Select Off for no fish alarm, or one of the following symbols to set the alarm. An alarm will sound when the FF1108-CWLA detects fish that correspond to the alarm setting. Fish Alarm will only sound if Fish ID+ is also set to On.
- Page 10 Trouble 1.The FF1108-CWLA loses signal in wireless User Mode .If the FF1108-CWLA, while in Wireless user mode, is not able to get an RF signal from the Wireless sonar sensor, the display will stop updating and the NO SIGNAL will be displayed after several seconds.
- Page 11 1) The Wireless sonar sensor uses line -of- sight wireless technology. If objects are placed between the FF1108-CWLA and the Wireless sonar sensor, reception may be lost. 2) The Wireless sonar sensor depth range is 3 to 147 feet (0.7 to 45 meters).
- Page 12 3-147 feet (0.7 – 45 meters) 。 ………………………………………… Sonar Beam Angle ………………………… Sonar Operating Frequency 125kHz ………………… Operational Wireless Frequency 433.92MHZ …………………… Operational Range 200feet (60meters) LUCKY MANUFACTURER CO.,LTD JINDONG INDUSTRIAL ZONE,JINHUA CITY,ZHEJIANG PROVINCE,CHINA Mail: sales@goodluckycn.com Tel:0086-579-8208-1596 Fax:0086-579-8208-1586 Http://www.goodluckycn.com Http://www.luckycn.en.alibaba.com Http://www.made-in-china.com/showroom/luckyproducts...
