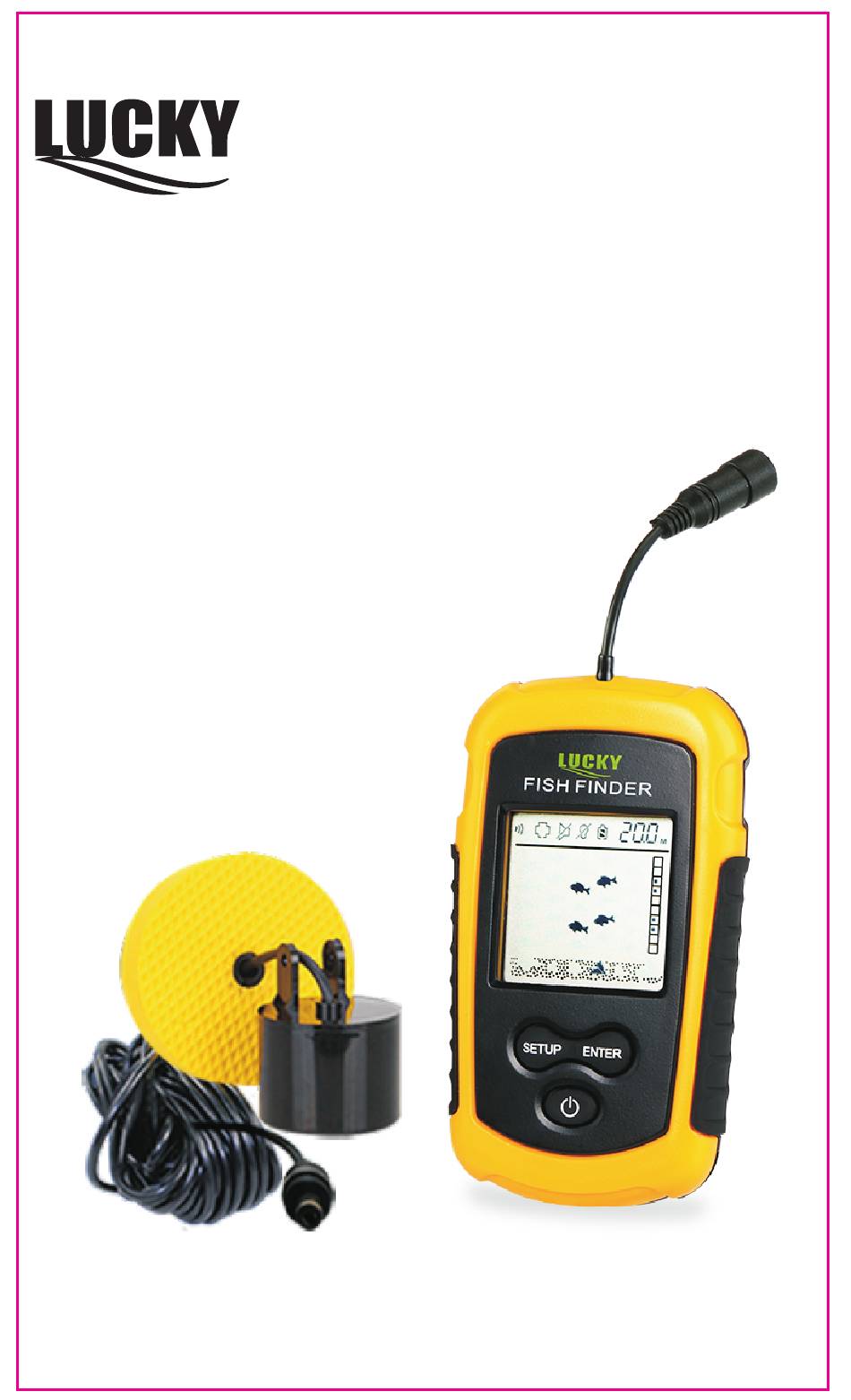

PORTABLE FISH FINDER OPERATION GUIDE http://www.goodluckycn.com...
Page 2
If you have any question in use, please feel free to contact the Zhejiang lucky Manufacturer Co., Ltd for consultation: www.goodluckycn.com PORTABLE FISH FINDER...
Page 3
s o u n d w a v e a n d w h e n t h e s o u n d w a v e i s r e f l e c t e d o ff a n o b j e c t ; i t t h e n u s e s t h e r e f l e c t e d s i g n a l t o i n t e r p r e t l o c a t i o n , s i z e , a n d c o m p o s i t i o n o f a n o b j e c t .
Page 4
Press the POWER key to turn the power On , the unit enter normal mode after display full show 1 second. Press and Hold the POWER key for 3 seconds to turn the Power Off. To enter the simulation mode: press and hold the POWER key for 5 seconds and release while the power is off.
Page 5
NOTE: You can select SAVE mode to work when you play on long time or water quiet , in order to extend batteries use-life.The screen can be refreshed by pressing the POWER key during normal operation. 5 FISH AND DEPTH READOUT 5.1 READINIG DEPTH 15.8 f i g .
Page 6
Use the fish Depth lndicator to 11.8 measure the fish’s depth from BAT. the sonar sensor (fig. 8).This can be done by dividing the depth reading by 10. This number represents the value of each box. (Example, the depth is 20 m, the fish symbol appears in the 5th box from the top.
Page 7
6. FIXING SONAR SENSOR 6.1 Pull out the rubber stopper, adjust float so that it is18 to 22 cm from the sensor, or at your desired depth.Replace the rubber stopper by pressing it firmly into the float. The Sensor float must be adjusted so that it is a minimum of 18 cm away from the sensor(fig.
Page 8
NOTE: *Incorrect to use : Do not allow the cable to sink to the bottom as it may become entangled in debris {fig.20} * The float can be removed as follows, If you do not need it, cutting off the rubber stopper from the cable and sliding the safety strap and the float towards the plug and gently take it out from the plug.
Page 9
7.2 FISHING ON ICE To achieve the best performance for ice fishing, it is highly recommended that you cut a hole through the ice and place the sonar sensor directly in the water(fig. 21).If you would like to check the area for depth or fish before cutting the hole.Clear away snow to expose the ice surface, making sure the surface is smooth.Place a small amount of liquid water on the ice and setthe sonar sensor on the water,...
Page 10
and cable with fresh water and dry-off before storing . Do not submerge and/or spray the fish finder screen /housing with water or use chemicals to clean. 8 Product Display: 2inch TN/ANTI-UV LCD Depth Capability: 328feet(100m) Wireless Sonar: 45 degrees beam angle in 200Khz Power Requirement: 4xAAA alkaline batteries Waterproof design: level-4 (spray-water-proof) Show water depth, fish location, and bottom grass &...
