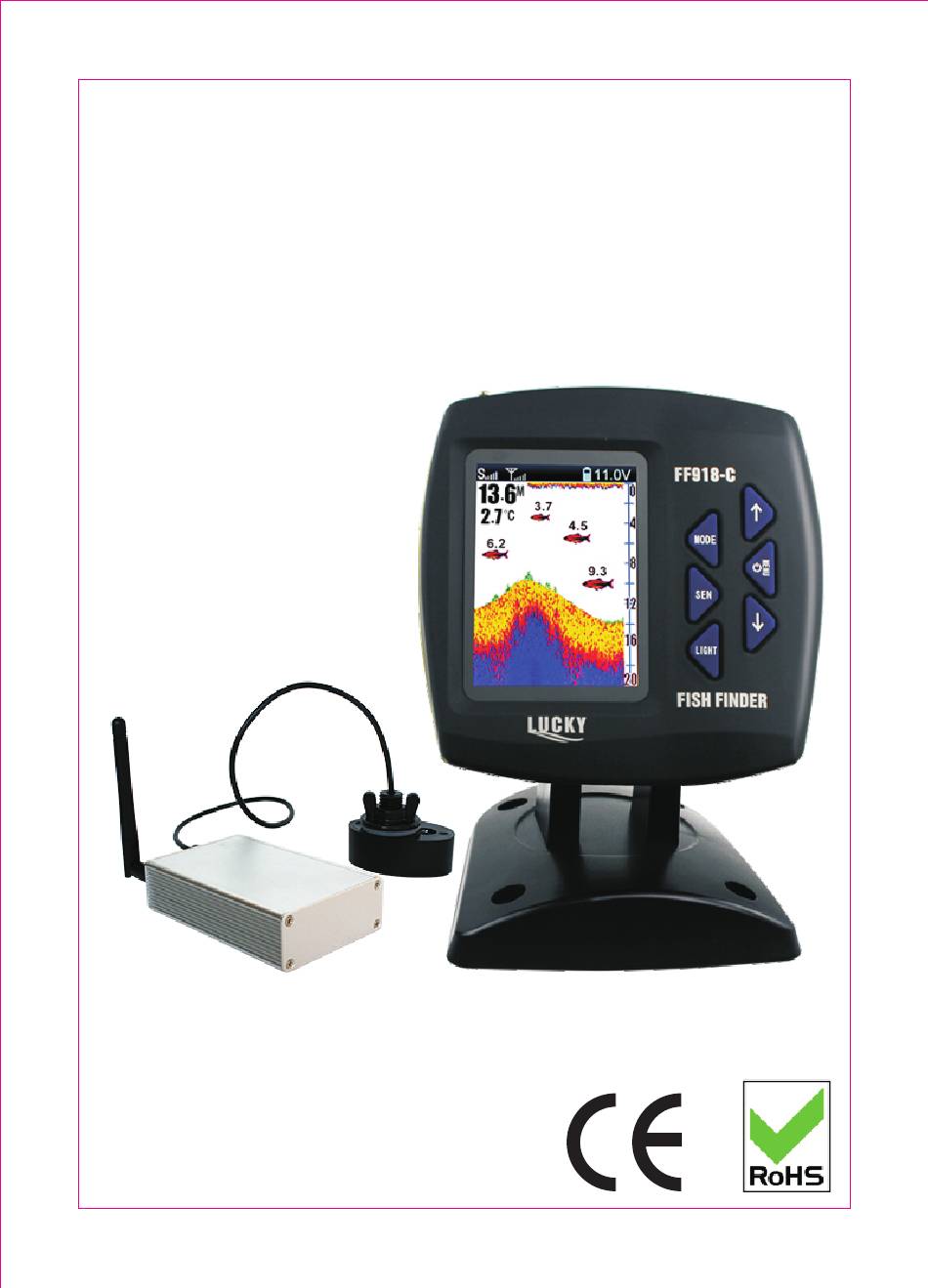

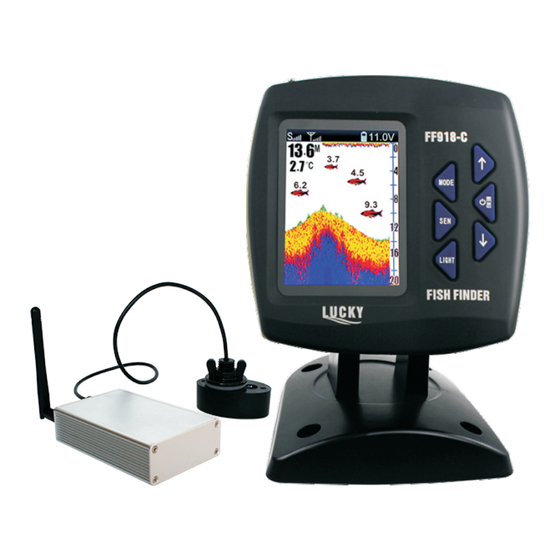

  • Page 1 FF918-CWL Boat Bait Fish Finder 300M Wireless Range Operations Manual...
  • Page 2 FF918-CWL Boat Bait Fish Finder 300M Wireless Range Operations Manual 1. Thank you for choosingFF918-CWL boat fish finder. This amazing product is especially designed for amateur and professional fishermen alike, to find out the location of fish , depth and bottom contour of water.

  • Page 3: Display View

    Underwater conditions vary greatly, so some experience and interpretation is needed to realize all the benefits of the FF918-CWL use the picture as a guide to the most common conditions and practice using the FF918-CWL over known bottom types.
  • Page 4 1-Battery capacity 8-Signal Indicator 2-Upper Zoom Range 9-Sensitivity 3-Water Surface Line 10-Water Depth 4-Small Fish Icon 11-Water Temperature 12-Large Fish Icon 5-Depth ruler 13-Bottom Contour 6-Medium Fish Icon 7-Lower Zoom Range...

  • Page 5: Powering On And Off

    5.Powering ON and OFF Press last 3seconds and release the POWER-MENU key to power the FF918-CWL on. Press and hold the POWER-MENU key until the unit shuts down to power off. 1-Up arrow key 4-Sensitivity key 2-Mode key 5-Down arrow key...

  • Page 6: The Menu System

    POWER-MENU key. Press the POWER-MENU key repeatedly to display the FF918-CWL menu settings, one at a time. When a menu setting is on the display, use the UP and DOWN Arrow keys to adjust the menu setting. Menus setting are removed from the screen automatically after several seconds.
  • Page 7 saved to memory will not return to their default values when the unit is turned off. See individual menu choices for more information. NOTE: Each time the POWER-MENU key is pressed, the backlight momentarily illuminates for easy viewing at night. Adjust the Brightness menu setting to keep the backlight on.
  • Page 8 the display may not show many sonar returns that could be fish. (1 –9). 6.3 Depth Range--- DE TH RANGE AUTO AUTO 1 0 0 Press the POWER - MENU key until DEPTH RANGE appears. Automatic is the default setting. When in automatic, the lower range will be adjusted by the unit to follow the bottom.
  • Page 9 Upper Zoom Range Structure Lower Zoom Range There is also a series of manual ranges which can be selected. The manual depth ranges are determined by the present depth conditions. 6.5 Shallow Alarm --- SHALLOW ALARM Press the POWER-MENU key until Shallow Alarm appears. Select OFF for no Depth Alarm, or select 1 to 100 meters to set the alarm depth.
  • Page 10 Make sure press the POWER-MENU key until Fish Icon appears. Select either Off to view “raw” sonar returns,or On to view Fish symbols. Fish Icon uses advanced signal processing to interpret sonar returns, and will display a Fish Symbol when very selective requirements are met. A select number of possible fish returns will be displayed with their associated depth.
  • Page 11 6.8 Units--- UNITS M / ℃ Make sure press the POWER-MENU key until UNITS appears. UNITS selects the units of measure. ( Feet/F, Meters/C, Feet/C, Meet/F ,where F stands for Fahrenheit and C stands for Celsius ) 6.9 Color Tone--- COLOR TONE Make sure press the POWER-MENU key until Color Tone appears.
  • Page 12 7 Maintenance Follow these simple procedures to ensure your FF918-CWL continues to deliver top performance. 7.1. If the unit comes into contact with salt spray, wipe the affected surfaces with a cloth dampened in fresh water.
  • Page 13 extremely high temperatures generated in hot weather can damage the electronics. 8 Trouble 1.The FF918 loses signal in wireless User Mode. If the FF918, while in Wireless user mode, is not able to get an RF signal from the Wireless sonar sensor, the display will stop updating and the NO SIGNAL will be displayed after several seconds.
  • Page 14 3)Reeling the Wireless sonar sensor too fast can cause loss of signal and the screen will freeze. 4)The Wireless sonar sensor may not obtain its maximum RF distance of 980 feet unless the water is smooth. Waves or chop may reduce the RF range significantly. 5)When in very shallow water, I get gaps in the bottom reading and inconsistent digital depth indication.

  • Page 15: Product Specifications

    9. PRODUCT SPECIFICATIONS 1)Display:3.5inch MVA TFT LCD 2)Sonar operation frequency:200KHz 3) Back lighting: On/off White LED 4) Power requirement:11-13V DC 5) Sensor coverage: 45 degrees 6) Depth range max/min: 300feet(100meters) /3 feet(1meters) 7) Operational range: 980 feet (300 meters) 8) Operational wireless frequency: 433.92 MHz -14-...
