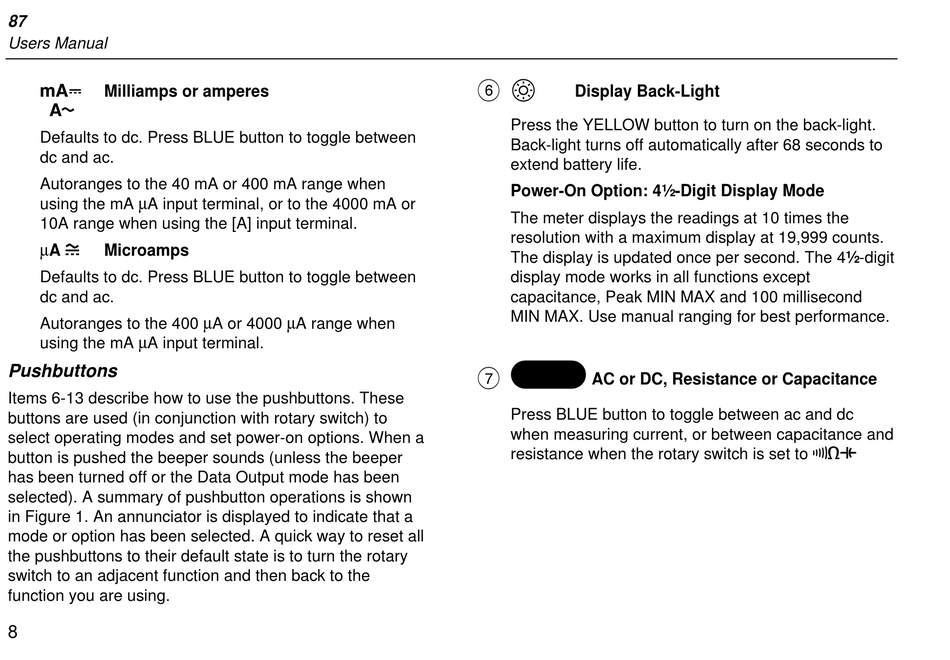

87
Users Manual
^
Milliamps or amperes
\
Defaults to dc. Press BLUE button to toggle between
dc and ac.
Autoranges to the 40 mA or 400 mA range when
using the mA A input terminal, or to the 4000 mA or
10A range when using the [A] input terminal.
A C
Microamps
Defaults to dc. Press BLUE button to toggle between
dc and ac.
Autoranges to the 400 A or 4000 A range when
using the mA A input terminal.

Pushbuttons

Items 6-13 describe how to use the pushbuttons. These
buttons are used (in conjunction with rotary switch) to
select operating modes and set power-on options. When a
button is pushed the beeper sounds (unless the beeper
has been turned off or the Data Output mode has been
selected). A summary of pushbutton operations is shown
in Figure 1. An annunciator is displayed to indicate that a
mode or option has been selected. A quick way to reset all
the pushbuttons to their default state is to turn the rotary
switch to an adjacent function and then back to the
function you are using.
8
b
Display Back-Light
Press the YELLOW button to turn on the back-light.
Back-light turns off automatically after 68 seconds to
extend battery life.
Power-On Option: 4½-Digit Display Mode
The meter displays the readings at 10 times the
resolution with a maximum display at 19,999 counts.
The display is updated once per second. The 4½-digit
display mode works in all functions except
capacitance, Peak MIN MAX and 100 millisecond
MIN MAX. Use manual ranging for best performance.
AC or DC, Resistance or Capacitance
Press BLUE button to toggle between ac and dc
when measuring current, or between capacitance and
resistance when the rotary switch is set to
